Eaton

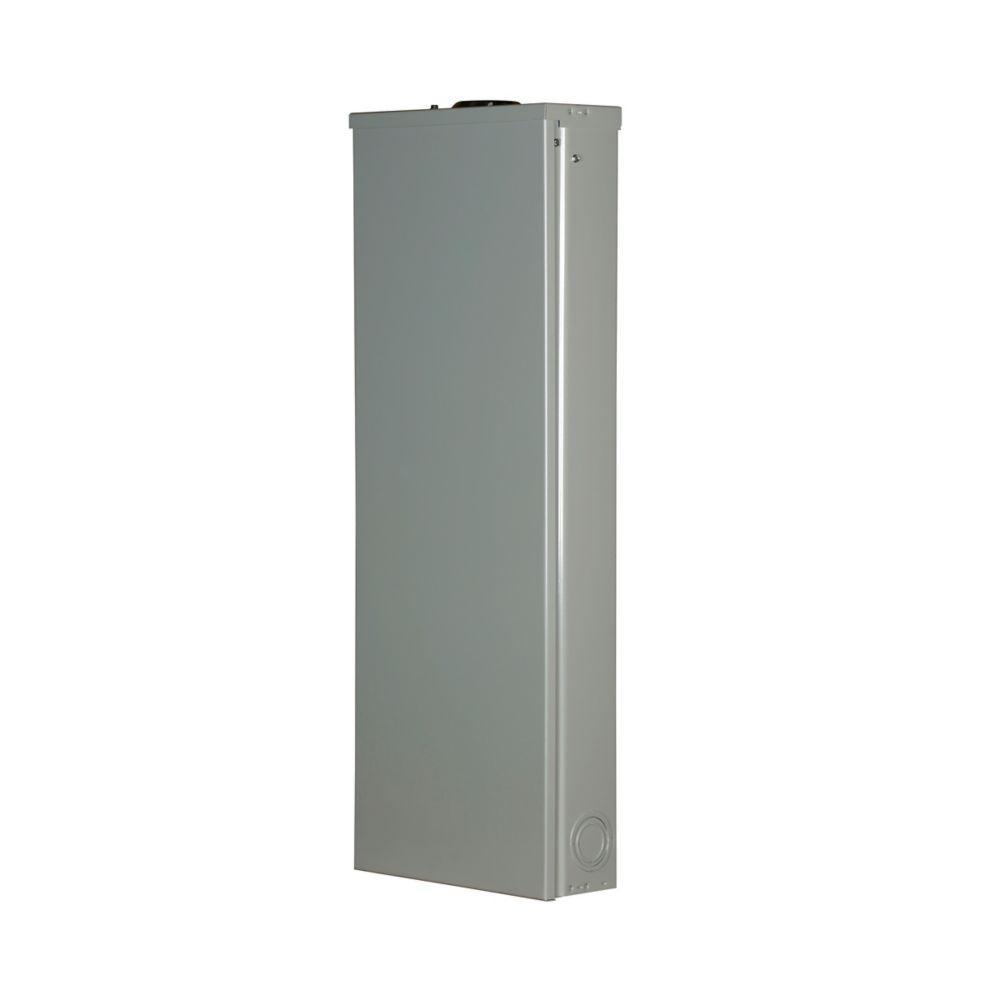

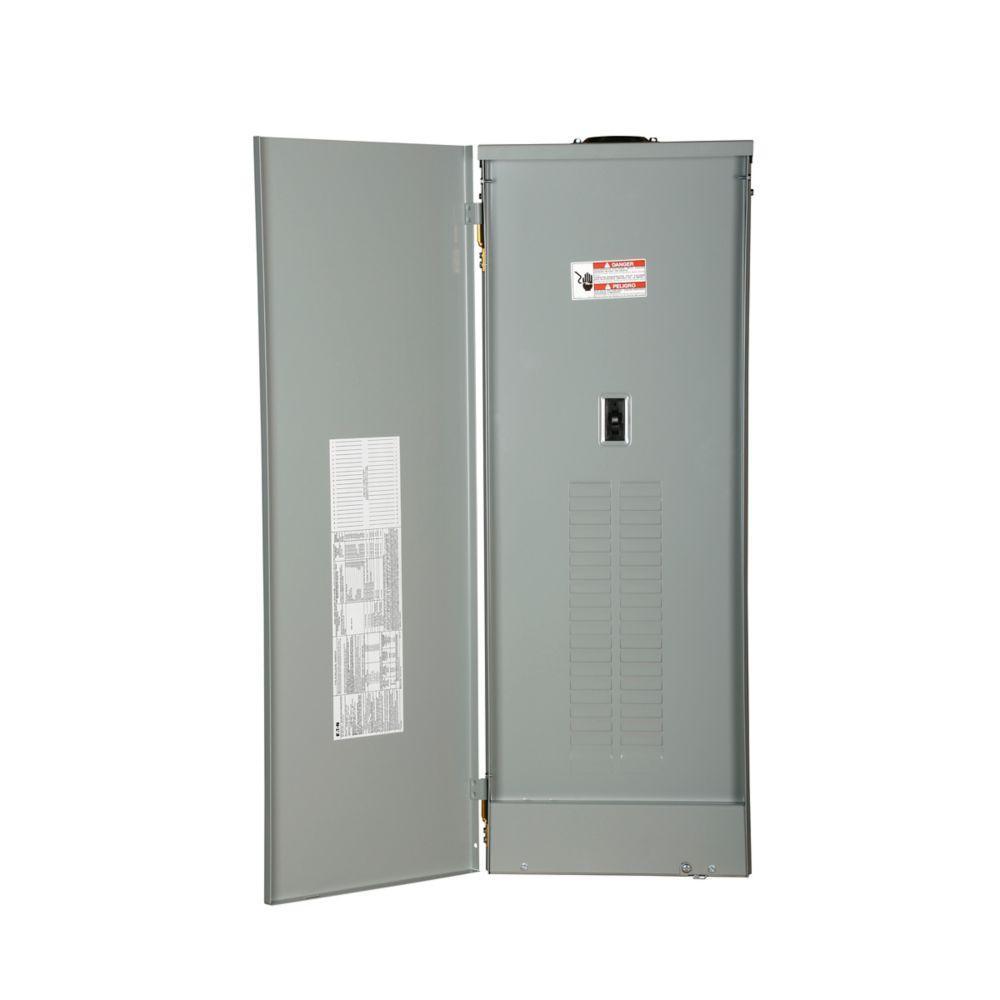

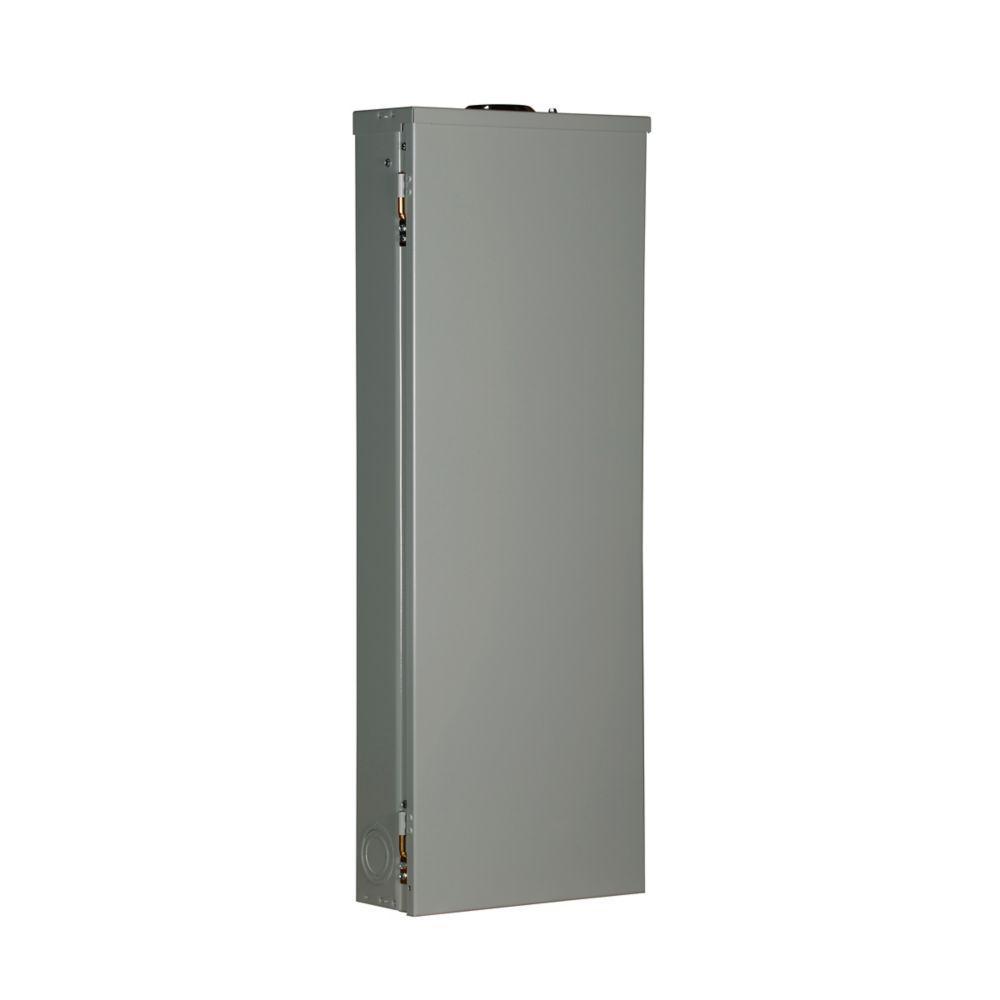

CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER
  • CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER
  • CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER
  • CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER

Description: EATON Main Breaker Load Center, 3-Phase Standard, 208Y/120/240 VAC, 200 A, 30 Pole, 10 kA Interrupt, 30 Circuits, CC Breaker, 4-Wire Wiring Configuration, 30 Spaces, 2/0 AWG to 300 kcmil Wire, NEMA 1, NEMA L Enclosure Box, Metal Housing, 14.31 in W x 3.88 in D x 39 in H

Manufacturer PN: CH30B3200L

UPC:  78211309796

Kendall Electric Inc PN: 2025319

Invoice Description:

CH30B3200L CH 30 CIRCUIT MB 3P 200 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON CH30B3200L 3-Phase Standard Main Breaker Load Center, 208Y/120/240 VAC, 200 A, 30 Poles, 10 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Breaker Load Center, 3-Phase Standard, 208Y/120/240 VAC, 200 A, 30 Pole, 10 kA Interrupt, 30 Circuits, CC Breaker, 4-Wire Wiring Configuration, 30 Spaces, 2/0 AWG to 300 kcmil Wire, NEMA 1, NEMA L Enclosure Box, Metal Housing, 14.31 in W x 3.88 in D x 39 in H

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels, EOEMs and Power Distribution Applications
 Brand Name EATON
 Breaker Type CC
 Dimensions 14.31 in W x 3.88 in D x 39 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA L
 Housing Material Metal
 Manufacturer Part Number CH30B3200L
 Number of Circuits 30
 Number of Poles 30
 Number of Spaces 30
 Standards/Approvals PROP65:This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|UL 50/67
 Type 3-Phase Standard
 Video Links
 Voltage Rating 208Y/120/240 VAC
 Wiring Configuration 4-Wire

Features

▪ Overhead feed applications
▪ All main circuit breaker loadcenters are listed for use as service entrance equipment
▪ Ground bar kits priced separately
▪ Insulated/bondable single neutral
▪ Furnished with hub closure plates
