Eaton

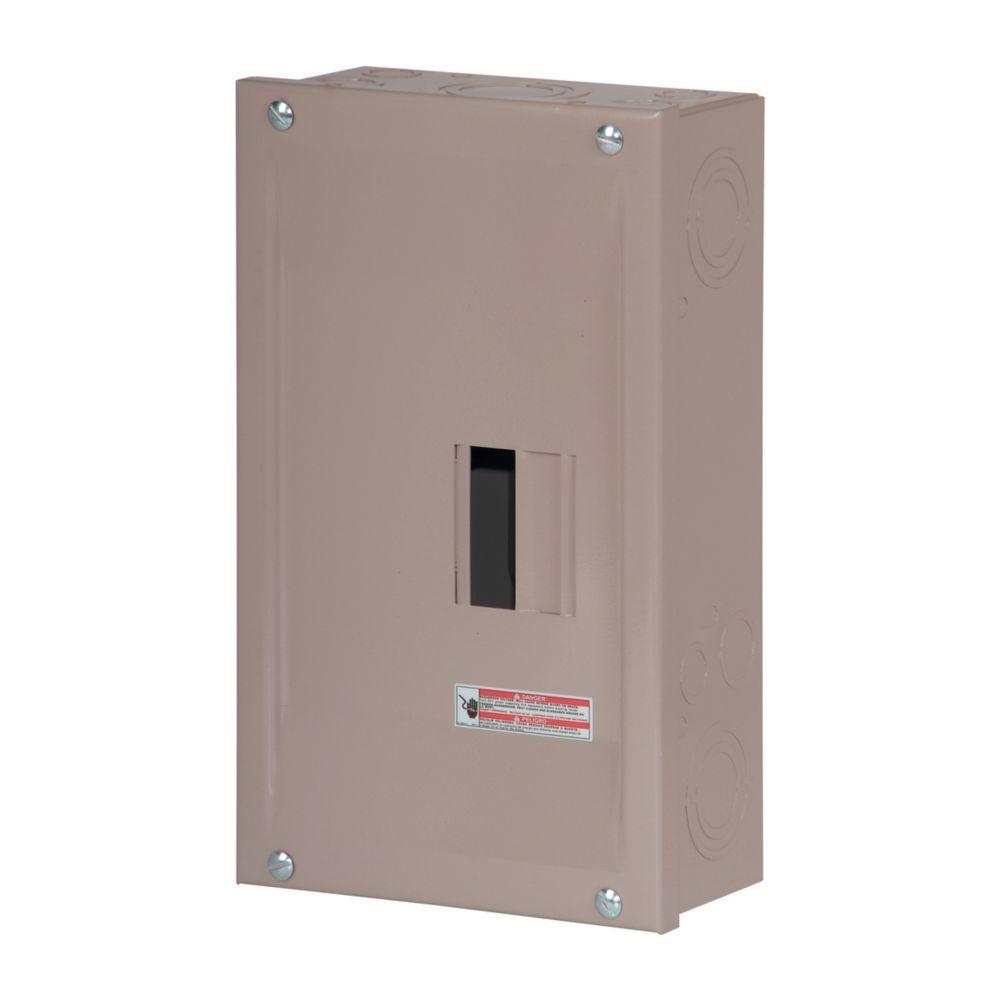

CH2L125SP CH 4 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH2L125SP CH 4 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • CH2L125SP CH 4 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Description: EATON Main Lug Load Center, 1-Phase Standard, 120/240 V AC, 125 A, 4 Pole, 25 kA Interrupt, 2 Circuits, CH Breaker, 3-Wire Wiring Configuration, 125 A Bus, 2 Spaces, 4/0 to 1 AWG Wire, Surface/Plug-On Mounting, NEMA 1 Enclosure, NEMA 6 Enclosure Box, Metal Housing Material, 9.5 in L x 4.5 in W x 3.13 in H Dimensions

Manufacturer PN: CH2L125SP

UPC:  78211419047

Kendall Electric Inc PN: 2016405

Invoice Description:

CH2L125SP CH 4 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH2L125SP 1-Phase Standard Main Lug Load Center, 120/240 V AC, 125 A, 4 Poles, 25 kA Interrupt

Log In for Pricing and Availability




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Load Center, 1-Phase Standard, 120/240 V AC, 125 A, 4 Pole, 25 kA Interrupt, 2 Circuits, CH Breaker, 3-Wire Wiring Configuration, 125 A Bus, 2 Spaces, 4/0 to 1 AWG Wire, Surface/Plug-On Mounting, NEMA 1 Enclosure, NEMA 6 Enclosure Box, Metal Housing Material, 9.5 in L x 4.5 in W x 3.13 in H Dimensions

Specifications

 Amperage Rating 125 A
 Application Industrial Facilities, Factories - Power Distribution, Control, Commercial and Residential Applications
 Brand Name EATON
 Breaker Type CH
 Bus Rating 125 A
 Dimensions 9.5 in L x 4.5 in W x 3.13 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 6
 Housing Material Metal
 Manufacturer Part Number CH2L125SP
 Mounting Type Surface/Plug-On
 Number of Circuits 2
 Number of Poles 4
 Number of Spaces 2
 PART NUMBER KEYWORDS CH2L125SP ; 7387418 ; 782114190470 ; 78211419047 ; 00782114190470
 Standards/Approvals UL 67,UL 50
 Type 1-Phase Standard
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
▪ Steel backpan provides positive, reliable mounting
▪ Unique sandalwood finish provides an esthetically appealing, scratch resistant powder-coating
▪ Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
▪ Mechanical flag feature on CH breakers for easy trip indication
▪ Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard
▪ Overhead/underground feed applications
▪ Insulated/bondable single neutral
▪ Copper bus
