Eaton

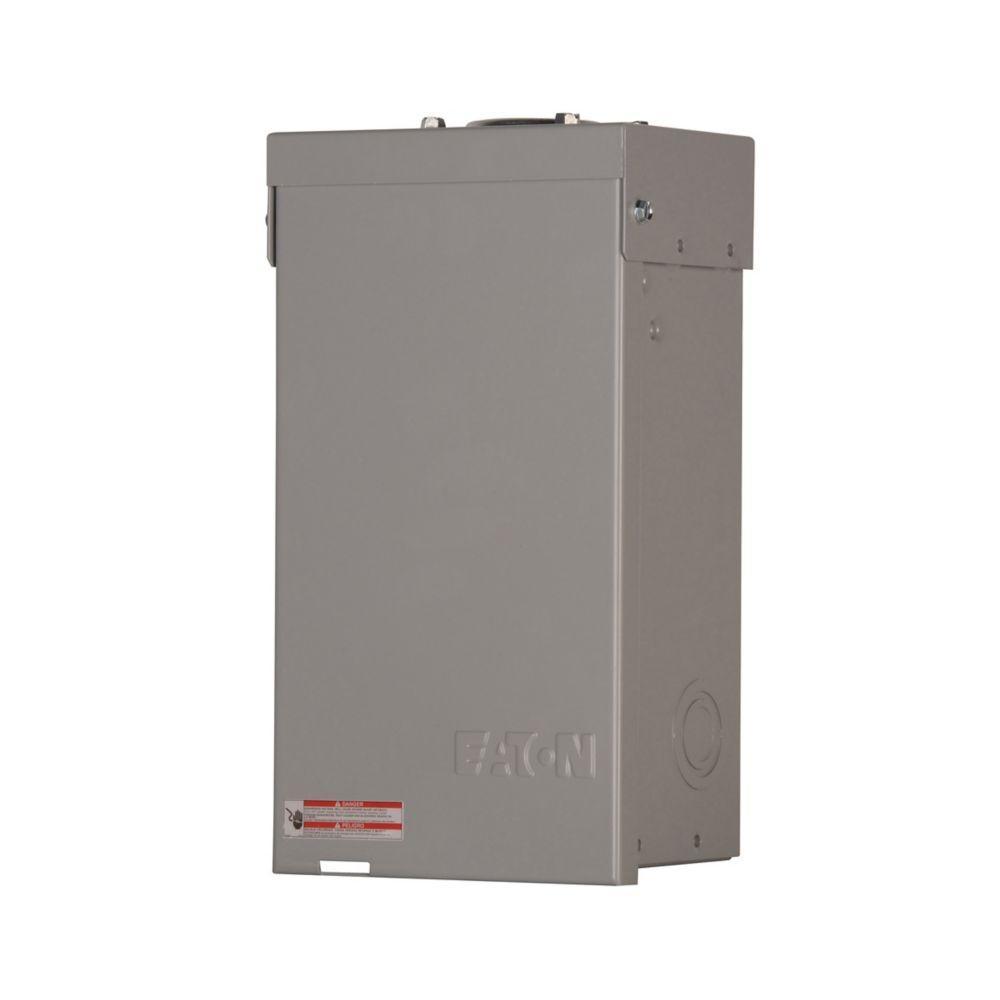

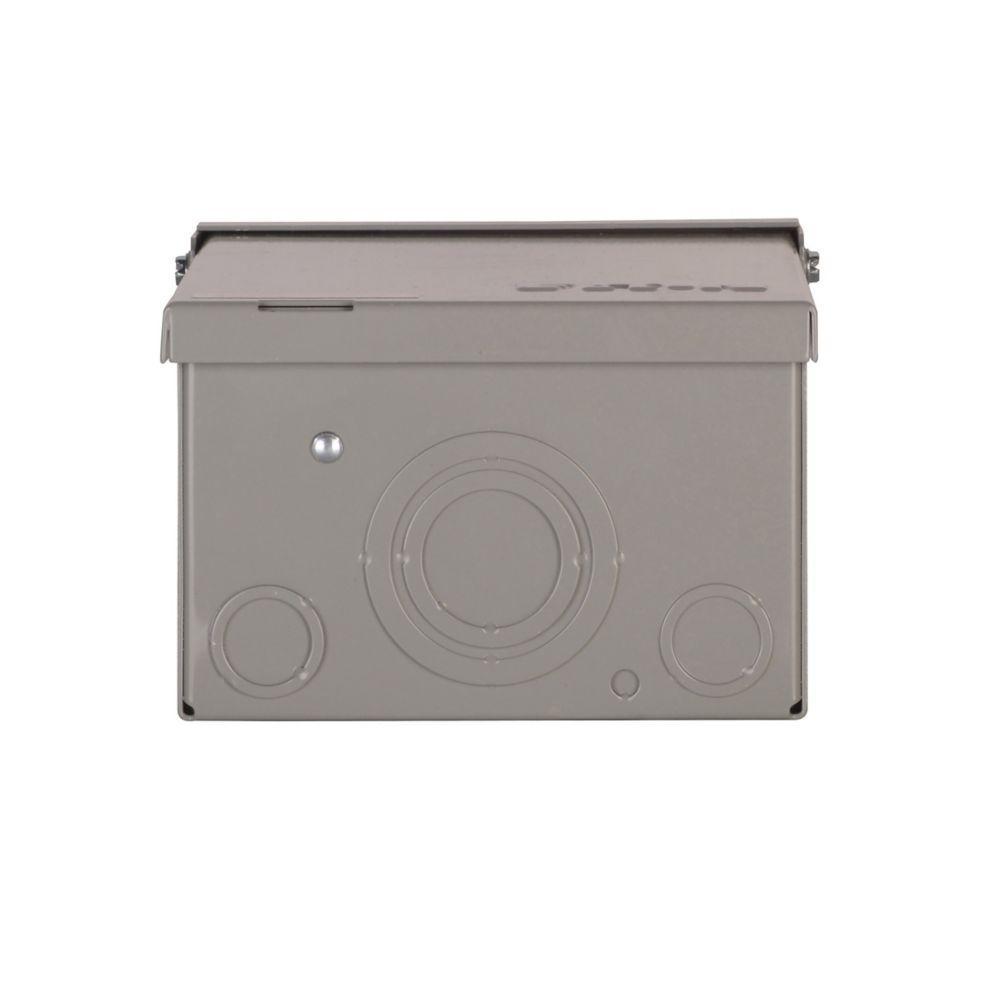

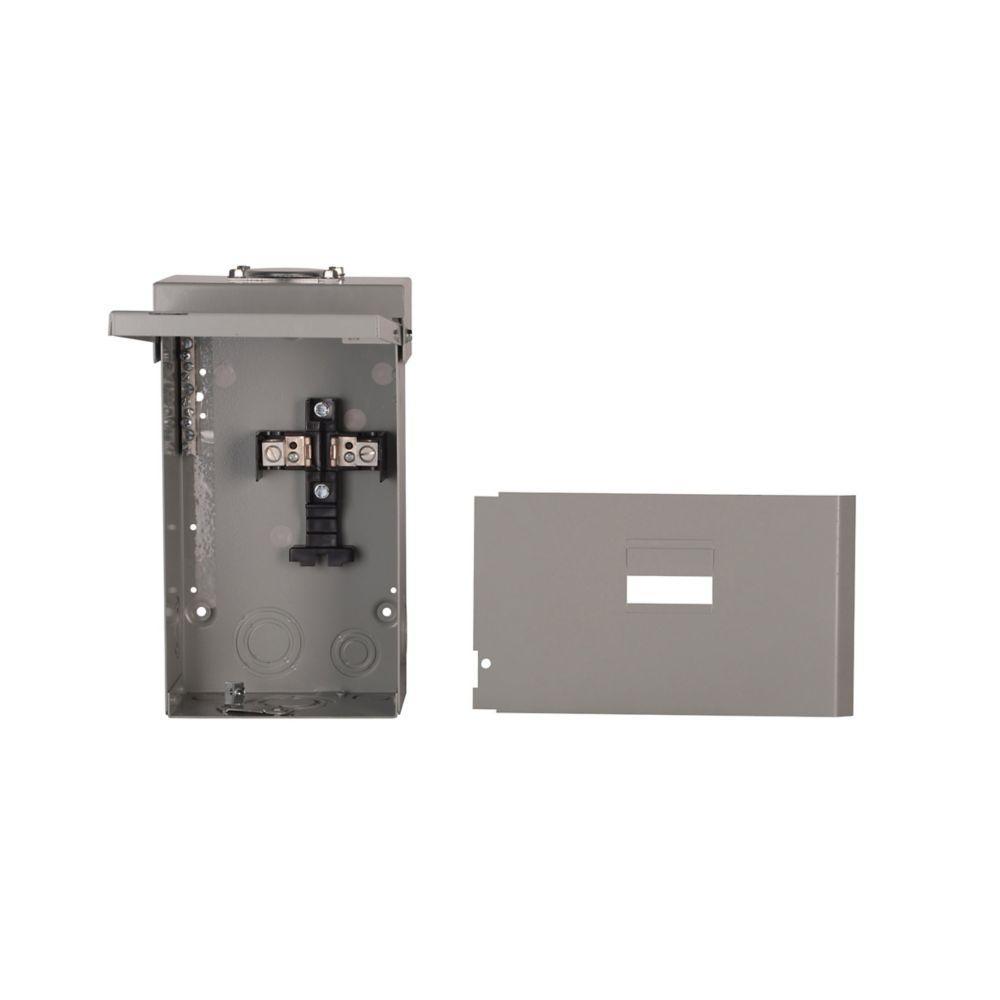

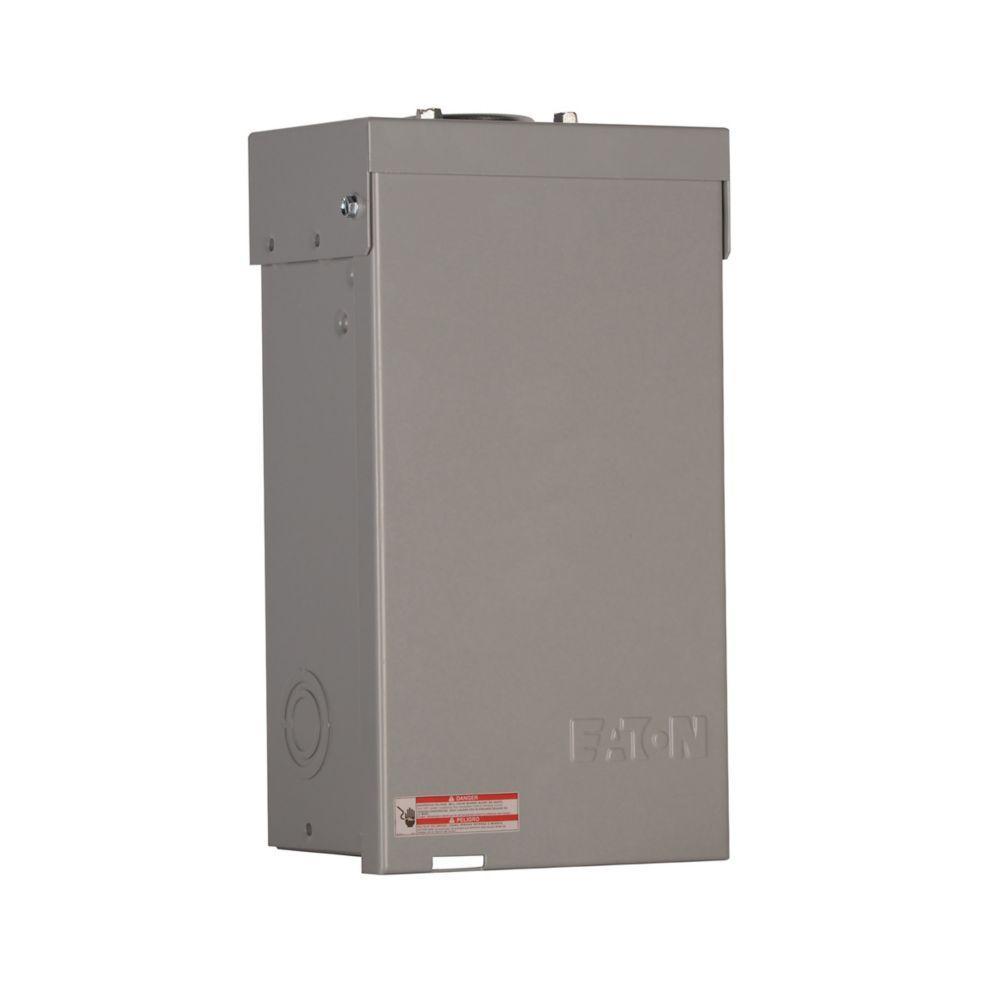

CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Description: EATON Main Lug Load Center, 1-Phase Standard, 120/240 VAC, 125 A, 2 Pole, 25 kA Interrupt, 2 Circuits, CH Breaker, 3-Wire Wiring Configuration, 2 Spaces, 4/0 to 1 AWG Wire, NEMA 3R, Metal Housing, 9.5 in L x 4.5 in W x 3.13 in H

Manufacturer PN: CH2L125RSE2P

UPC:  78667600847

Kendall Electric Inc PN: 2016400

Invoice Description:

CH2L125RSE2P CH 4 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH2L125RSE2P 1-Phase Standard Main Lug Load Center, 120/240 VAC, 125 A, 2 Poles, 25 kA Interrupt

Log In for Pricing and Availability




Description

EATON CH 3/4 in loadcenters enclose CH breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. They are used on services providing no more than 240 VAC and are available with bus rated 40 to 600 A. Covers are available as surface, flush or combination.
EATON Main Lug Load Center, 1-Phase Standard, 120/240 VAC, 125 A, 2 Pole, 25 kA Interrupt, 2 Circuits, CH Breaker, 3-Wire Wiring Configuration, 2 Spaces, 4/0 to 1 AWG Wire, NEMA 3R, Metal Housing, 9.5 in L x 4.5 in W x 3.13 in H

Specifications

 Amperage Rating 125 A
 Application Industrial Facilities, Factories, Power Distribution, Control, Outdoor, Commercial and Residential Applications
 Brand Name EATON
 Breaker Type CH
 Dimensions 9.5 in L x 4.5 in W x 3.13 in H
 Enclosure NEMA 3R
 Housing Material Metal
 Manufacturer Part Number CH2L125RSE2P
 Number of Circuits 2
 Number of Poles 2
 Number of Spaces 2
 Standards/Approvals UL 50/67
 Type 1-Phase Standard
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
▪ Steel backpan provides positive, reliable mounting
▪ CH 150 to 225 a main breakers are rated 25 kA providing contractors with the highest interrupting rating main breaker in the industry
▪ Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
▪ Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
▪ New mechanical flag feature on CH breakers for easy trip indication
▪ Copper bus
▪ Overhead feed applications
