CH24L3125C CH Main Lug Loadcenter

Mouse over image to zoom, click to enlarge

  • CH24L3125C CH Main Lug Loadcenter
  • CH24L3125C CH Main Lug Loadcenter
  • CH24L3125C CH Main Lug Loadcenter

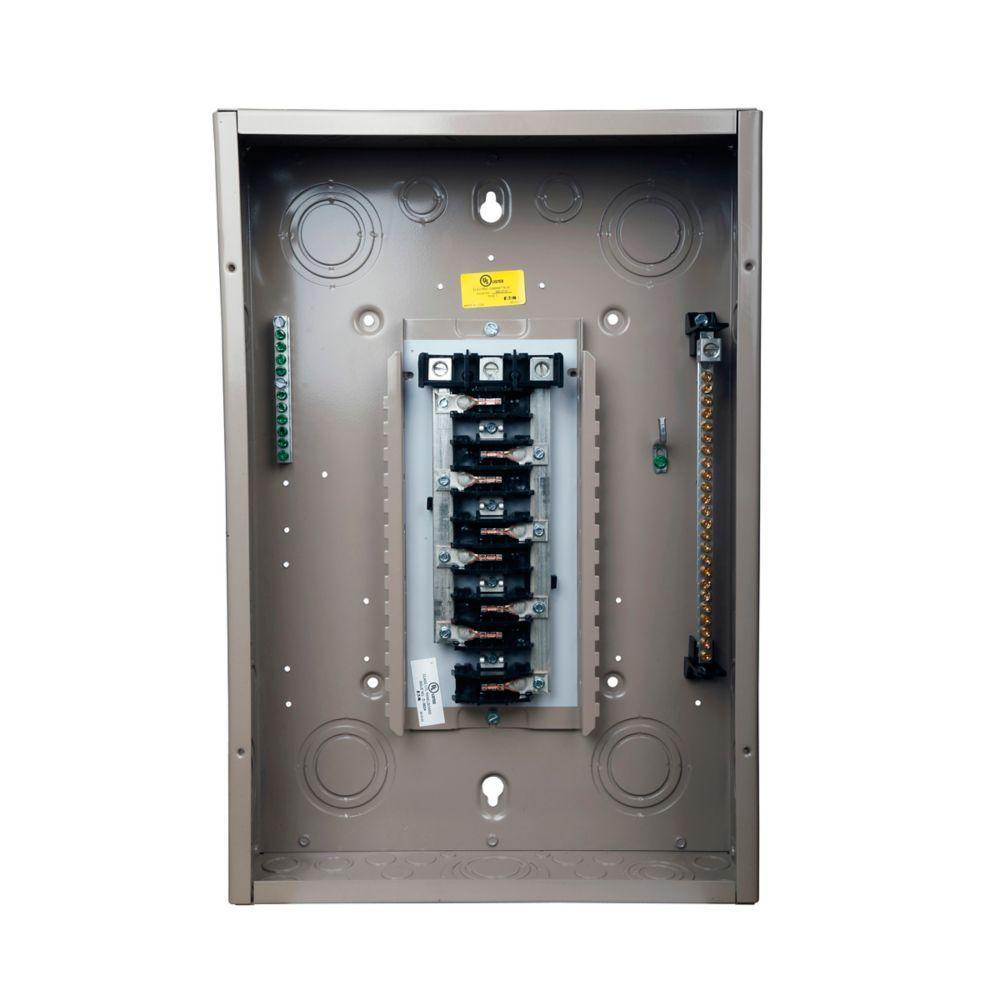

Description: EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120 VAC, 240 VAC, 125 A, 24 Pole, 35 kA Interrupt, 24 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 24 Spaces, 4/0 to 1 AWG Wire, Flush Mount, NEMA 1, C Enclosure Box, Metal Housing, 14.31 in W x 5.19 in D x 21 in H

Manufacturer PN: CH24L3125C

UPC:  78211309765

Kendall Electric Inc PN: 2025543

Invoice Description:

CH24L3125C CH Main Lug Loadcenter


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH24L3125C 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 35 kA Interrupt

Log In for Pricing and Availability




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120 VAC, 240 VAC, 125 A, 24 Pole, 35 kA Interrupt, 24 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 24 Spaces, 4/0 to 1 AWG Wire, Flush Mount, NEMA 1, C Enclosure Box, Metal Housing, 14.31 in W x 5.19 in D x 21 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and EOEM and Power Distribution Applications
 Brand Name EATON
 Breaker Mounting Plug-On
 Breaker Type CH
 Dimensions 14.31 in W x 5.19 in D x 21 in H
 Enclosure NEMA 1
 Enclosure Box Size C
 Housing Material Metal
 Manufacturer Part Number CH24L3125C
 Mounting Type Flush
 Number of Circuits 24
 Number of Poles 24
 Number of Spaces 24
 PART NUMBER KEYWORDS CH24L3125C ; 7334244 ; 782113097657 ; 78211309765 ; 00782113097657
 Standards/Approvals UL 50,UL 67
 Type 3-Phase Standard
 Video Links
 Voltage Rating 208Y to 120/240 V AC
 Wiring Configuration 4-Wire

Features

▪ Ground bar type GBK14 is installed
▪ Suitable for use as service equipment when a circuit breaker is used as a main breaker
▪ The main breaker is back-fed and requires hold down bracket kit catalog number CH125RB
▪ Suitable for use as service equipment when not more than six service disconnecting mains are provided
▪ Overhead/underground feed applications
▪ 6-2/0 AWG wire size range copper/aluminum at 60 or 75 deg C for main lugs
▪ Furnished with hub closure plates
