Eaton

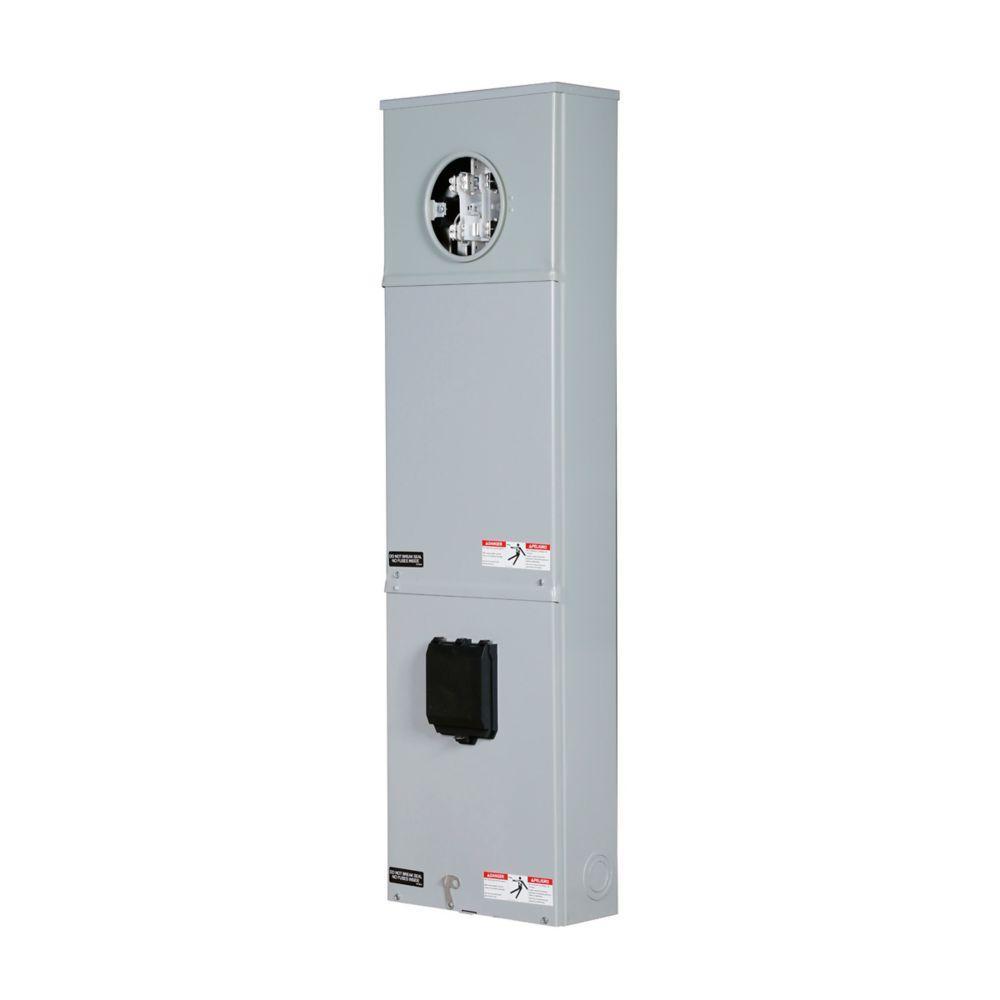

CH227MTBHMS15 CH METER BREAKER COMMERCIAL SAFETY SOCKETS

Mouse over image to zoom, click to enlarge

Description: EATON Meter Breaker, Type CH Safety Socket, 480/277 V AC, 200 A, 3 ph, Overhead Feed, 7 Jaws, 6 AWG to 250 kcmil Wire, Ring Cover, 53 in L x 16 in W x 7 in H Dimensions

Manufacturer PN: CH227MTBHMS15

UPC: 78211616501

Kendall Electric Inc PN: 3729386

Invoice Description:

CH227MTBHMS15 CH METER BREAKER COMMERCIAL SAFETY SOCKETS

SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination

How Can We Make This Page Better?

EATON CH227MTBHMS15 Type CH Safety Socket Meter Breaker, 480/277 V AC, 200 A, 3 Phase

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton is your one-stop shop for the widest range of residential and light commercial electric meter sockets in the industry. These single-socket surface- or flush-mount outdoor enclosures come in two styles, allowing for both easy, cost-saving installation, and for the use of BR- or CH-type branch breakers. The one-piece, die-run electric meter socket enclosures eliminate tampering and extend product life. These are utility approved and can be used for residential meter socket installations, rural service entrances, mobile homes, or for temporary power on construction sites.

EATON Meter Breaker, Type CH Safety Socket, 480/277 V AC, 200 A, 3 ph, Overhead Feed, 7 Jaws, 6 AWG to 250 kcmil Wire, Ring Cover, 53 in L x 16 in W x 7 in H Dimensions

Specifications

Amperage Rating	200 A
Application	Residential Buildings Applications
Brand Name	EATON
Cover Type	Ring
Dimensions	53 in L x 16 in W x 7 in H
Feed Type	Overhead
Includes	JD3200 Main Breaker
Manufacturer Part Number	CH227MTBHMS15
Number of Jaws	7
Phase	3
Standards/Approvals	UL Listed
Type	Type CH Safety Socket
Voltage Rating	480/277 V AC
