Eaton

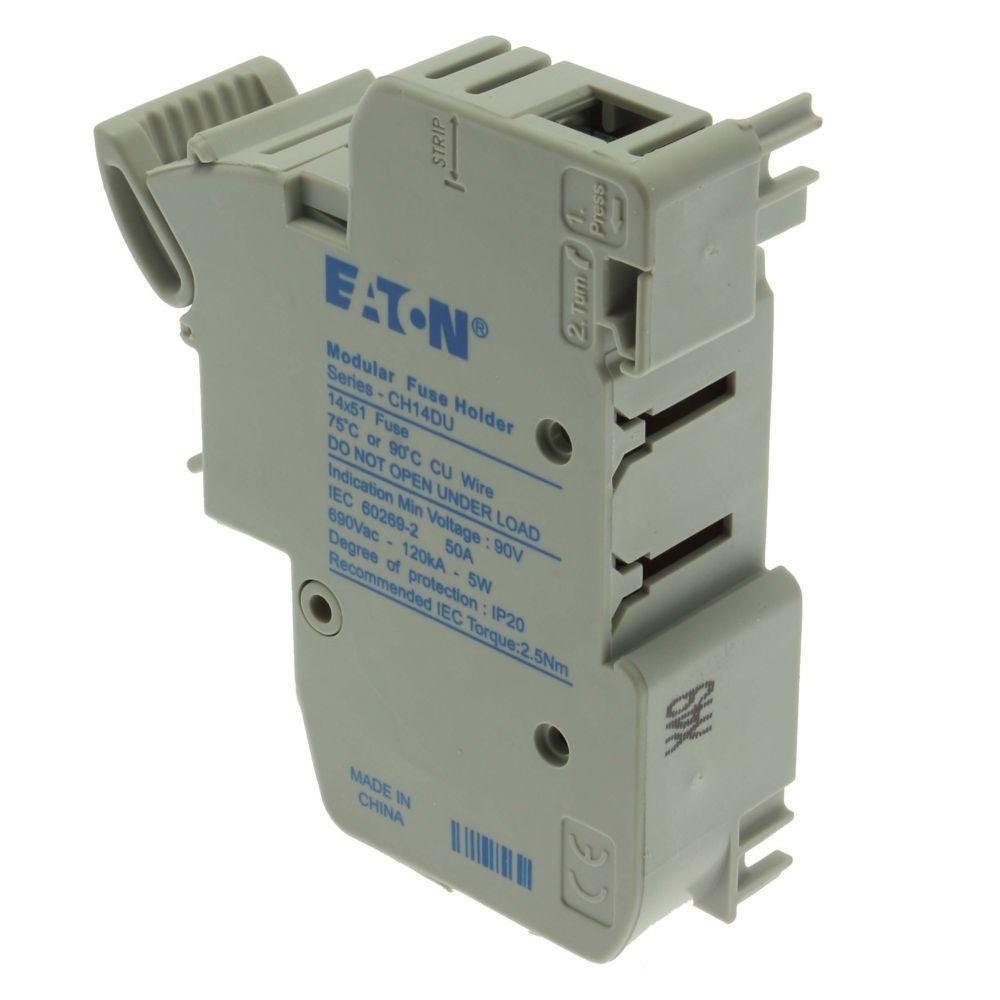

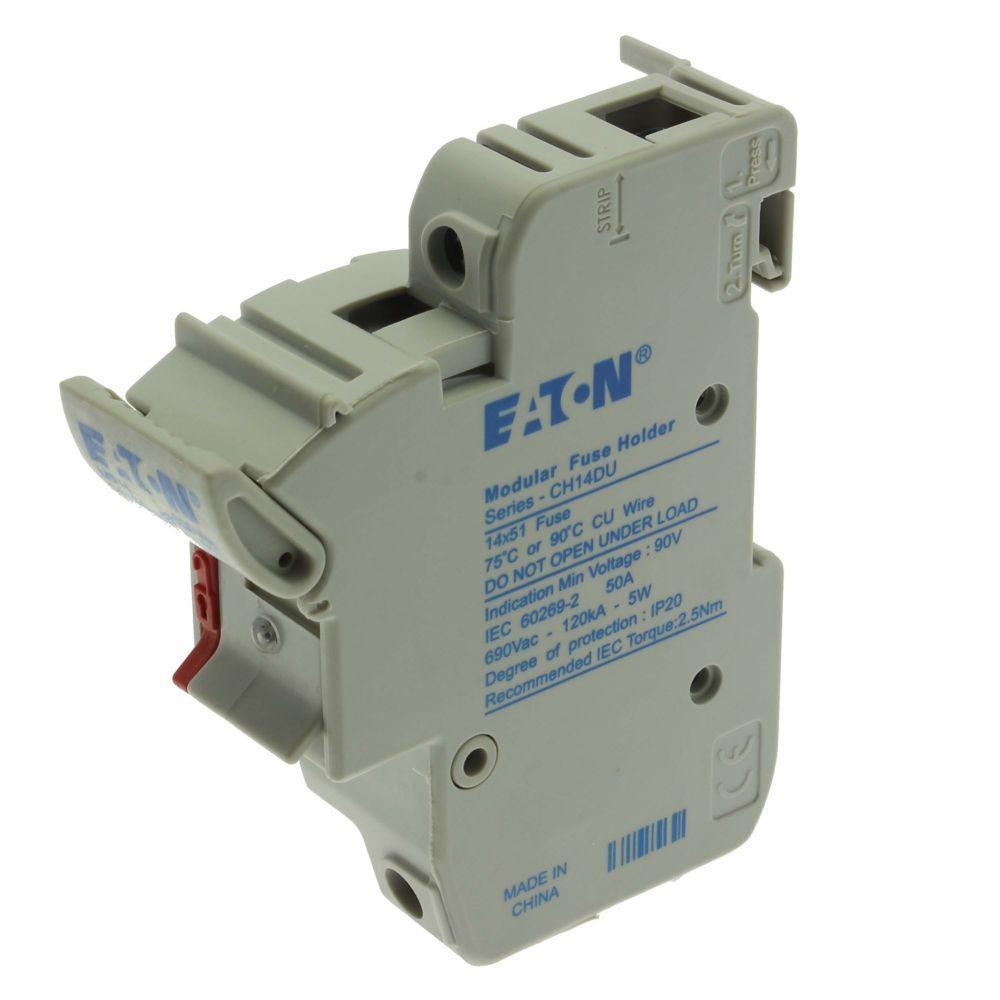

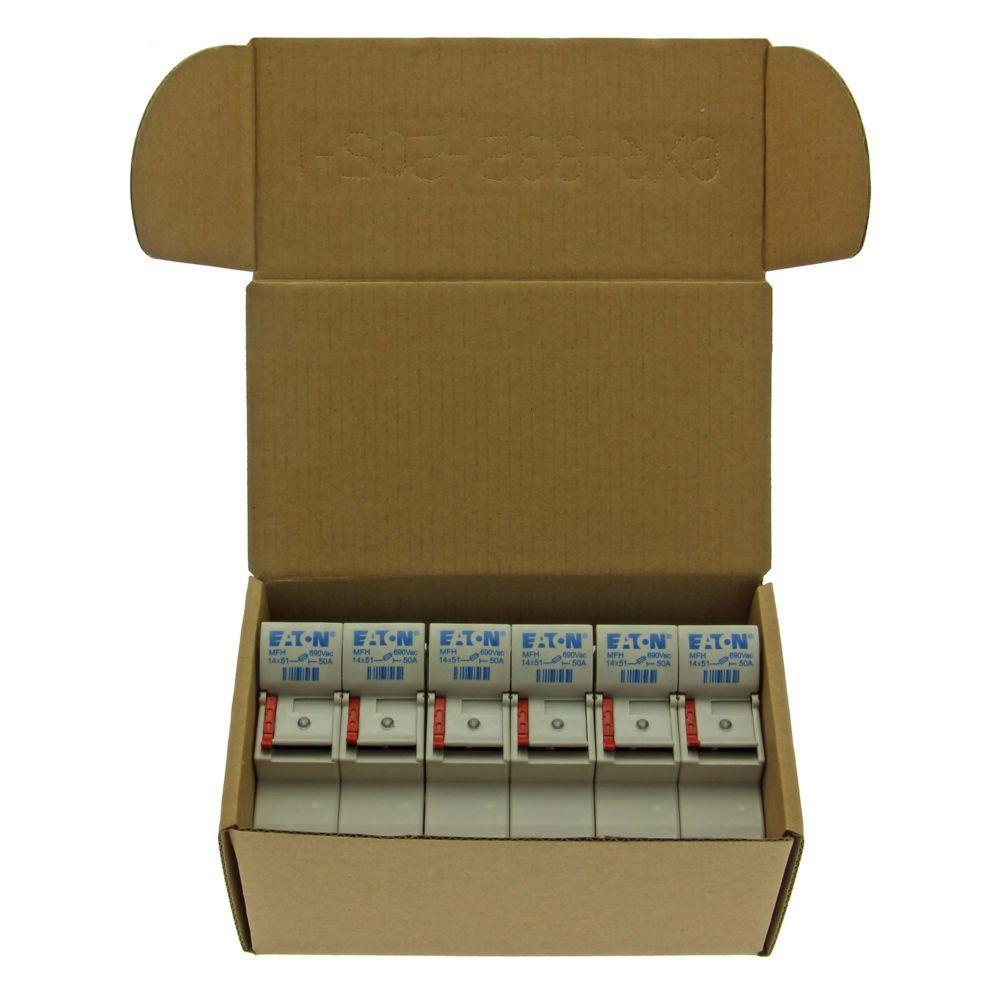

CH141DIU BUS FUSEHOLDER (6)

Mouse over image to zoom, click to enlarge

  • CH141DIU BUS FUSEHOLDER (6)
  • CH141DIU BUS FUSEHOLDER (6)
  • CH141DIU BUS FUSEHOLDER (6)
  • CH141DIU BUS FUSEHOLDER (6)

Description: Bussmann Modular Fuse Holder, Low Voltage Cylindrical, 690 V AC, 50 A, 1 Pole, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -20 to 70 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 92 mm L x 27 mm W x 101 mm H Dimensions

Manufacturer PN: CH141DIU

UPC:  05171268509

Kendall Electric Inc PN: 3727121

Invoice Description:

CH141DIU BUS FUSEHOLDER (6)


SPEC SHEET

▸ See All in Midget and CL-CC Fuse Holders


How Can We Make This Page Better?

Bussmann CH141DIU Low Voltage Cylindrical Modular Fuse Holder With Neon Indicator, 690 V AC, 50 A, 1 Pole

Log In for Pricing and Availability




Description

Eaton's Bussmann series modular fuse holders are specifically designed to be used in conjunction with cylindrical fuses sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and FW ferrule type fuses.
Bussmann Modular Fuse Holder, Low Voltage Cylindrical, 690 V AC, 50 A, 1 Pole, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -20 to 70 deg C, For Use With: Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links, 92 mm L x 27 mm W x 101 mm H Dimensions

Specifications

 Amperage Rating 50 A
 Application Electrical Assemblies, Panels and EOEMs - Aftermarket, Panel Builders, Control Panels for Machines, Industrial Facilities and Factories - Power Distribution and Control
 Brand Name Bussmann
 Dimensions 92 mm L x 27 mm W x 101 mm H
 Fuse Diameter 14 mm
 Fuse Length 51 mm
 Manufacturer Part Number CH141DIU
 Mounting Type DIN Rail
 Number of Poles 1
 PART NUMBER KEYWORDS CH141DIU ; 15905324 ; 051712685092 ; 51712685092 ; 05171268509 ; 5027590496612 ; 00051712685092
 Standards/Approvals EAC ,IEC 60269-2 ,UL Listed File E14853 ,IEC 60269-1 ,UL Listed File E14853 ,IEC 60269-2 ,EAC ,IEC 60269-1,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung
 Suitable For Use With Standard Cylindrical Fuse-Links and FW Type Ferrule Fuse-Links
 Temperature Rating -20 to 70 deg C
 Type Low Voltage Cylindrical
 Video Links
 Voltage Rating 690 V AC

Features

▪ Compact dimensions
▪ Ventilation zones optimized for a better heat dissipation
▪ Inbuilt padlocking facility
▪ IP20 degree of protection
▪ Photovoltaic version rated at 1500 VDC (IEC only) for use with gPV fuse links
▪ Flexibility to mount on DIN rail and/or screw mounting
▪ Toolless DIN rail mounting, improves ease of use and reduces installation time and costs
