Eaton

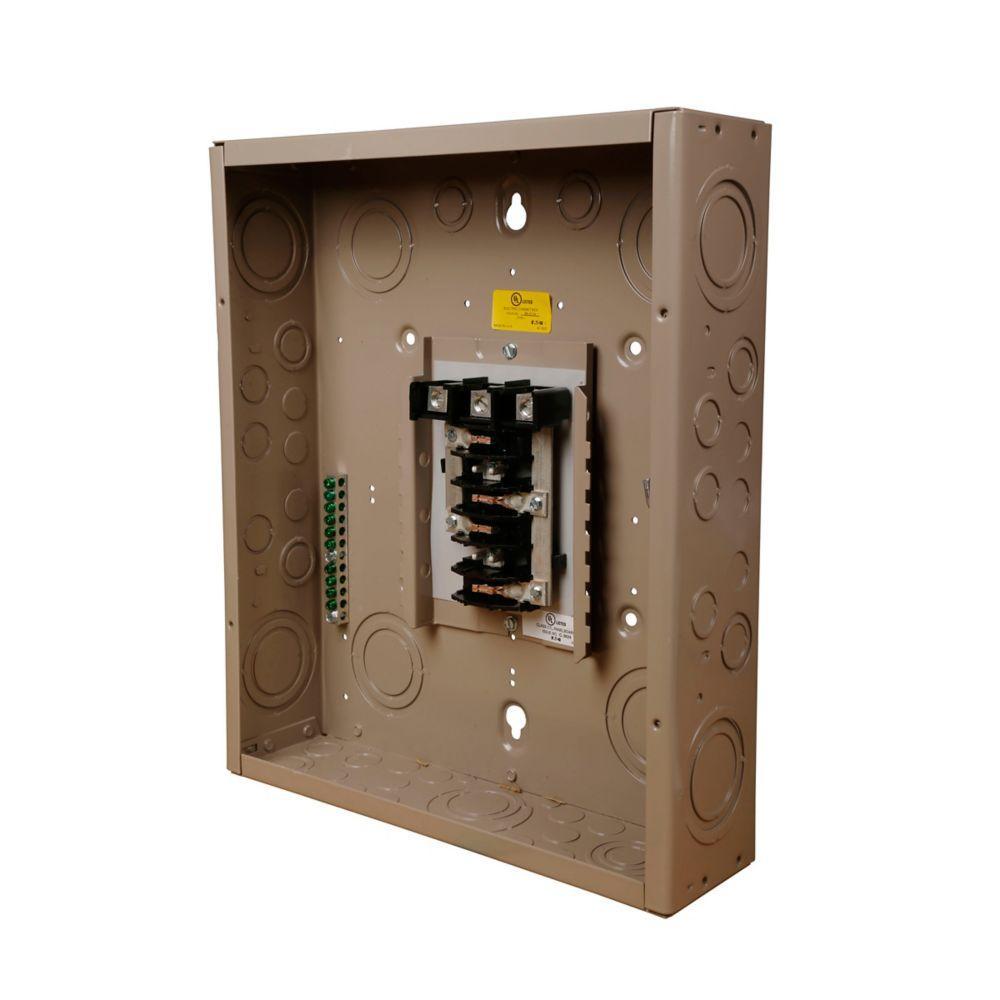

CH12L3125B CH 12 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH12L3125B CH 12 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER
  • CH12L3125B CH 12 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER
  • CH12L3125B CH 12 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER

Description: EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120/240 V AC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 12 Spaces, 4/0 to 1 AWG Wire, Flush Mount, NEMA 1, NEMA B Enclosure Box, Metal Housing, 16.75 in L x 14.3 in W x 3.9 in H

Manufacturer PN: CH12L3125B

UPC:  78211309735

Kendall Electric Inc PN: 2025534

Invoice Description:

CH12L3125B CH 12 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH12L3125B 3-Phase Standard Main Lug Loadcenter, 208Y/120/240 V AC, 125 A, 12 Poles, 10 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120/240 V AC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, CH Breaker, Plug-On Breaker Mounting, 4-Wire Wiring Configuration, 12 Spaces, 4/0 to 1 AWG Wire, Flush Mount, NEMA 1, NEMA B Enclosure Box, Metal Housing, 16.75 in L x 14.3 in W x 3.9 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and EOEM and Power Distribution Applications
 Brand Name EATON
 Breaker Mounting Plug-On
 Breaker Type CH
 Dimensions 16.75 in L x 14.3 in W x 3.9 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA B
 Housing Material Metal
 Manufacturer Part Number CH12L3125B
 Mounting Type Flush
 Number of Circuits 12
 Number of Poles 12
 Number of Spaces 12
 Standards/Approvals UL 50,UL 67
 Type 3-Phase Standard
 Video Links
 Voltage Rating 208Y/120/240 V AC
 Wiring Configuration 4-Wire

Features

▪ Bonding Z-strap provides easy field conversion for service entrance applications
▪ Ground bar type GBK14 is installed
▪ Suitable for use as service equipment when a circuit breaker is used as a main breaker
▪ Suitable for use as service equipment when not more than six service disconnecting mains are provided and when not used as a lighting and appliance panelboard
▪ One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
▪ Steel backpan provides positive, reliable mounting
▪ CH 150 to 225 a main breakers are rated 25 kA providing contractors with the highest interrupting rating main breaker in the industry
▪ Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
▪ Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
▪ Copper bus housing
▪ Loadcenter has overhead/underground feeders and top bottom feed location for convenience
▪ It accommodates copper/aluminum wire at 60 to 75 deg C
▪ Straight-in wiring saves labor and material
