Hubbell
CGB139 KILLARK CGB CABLE CNTR, RANGE .393-.623 1/2" ST..

Mouse over image to zoom, click to enlarge

  • CGB139 KILLARK CGB CABLE CNTR, RANGE .393-.623 1/2" ST..
  • CGB139 KILLARK CGB CABLE CNTR, RANGE .393-.623 1/2" ST..
  • CGB139 KILLARK CGB CABLE CNTR, RANGE .393-.623 1/2" ST..

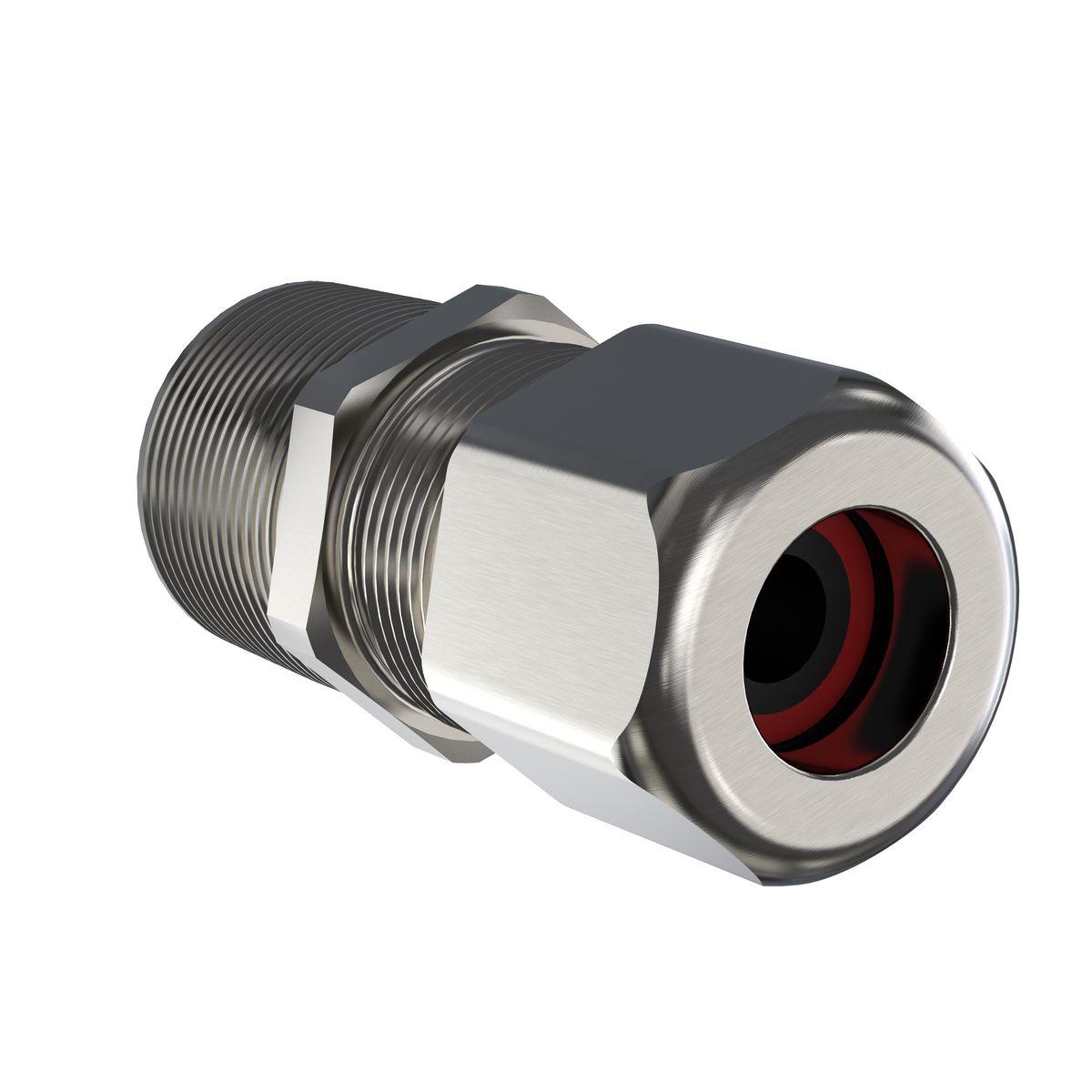

Description: Killark®, CGB139, Unarmored Cable Connector, Straight, Series: CGB, 1/2 in Trade, Cable Openings: 0.393 to 0.623 in, Non-Armored/Tray Cable, MNPT Connection, Steel, Natural, -40 to 80 deg C

Manufacturer PN: CGB139

UPC:  78393618453

Kendall Electric Inc PN: 4599650

Invoice Description:

CGB139 KILLARK CGB CABLE CNTR, RANGE .393-.623 1/2" ST..


SPEC SHEET

▸ See All in Cable Support Grips


How Can We Make This Page Better?

Killark® CGB139 CGB Straight Unarmored Cable Connector, 1/2 in Trade, 0.393 to 0.623 in Cable Openings, Steel, Natural

Log In for Pricing and Availability




Description

The CGB connector is for use all unarmored cable and flexible cords. This connector features a removable "top-hat" sleeve seal and is designed to cover a broader range of cable diameters for carrying less stocking SKU's. Superior ingress protection with Type 3,3R,4,4X,12 ratings. Designed and certified for NEC and CEC applications.
Killark®, CGB139, Unarmored Cable Connector, Straight, Series: CGB, 1/2 in Trade, Cable Openings: 0.393 to 0.623 in, Non-Armored/Tray Cable, MNPT Connection, Steel, Natural, -40 to 80 deg C

Specifications

 Application Suitable for use in Class I Divisions 2 when installed in accordance to NEC 501.10(B)4
 Brand Name Killark
 Cable Openings 0.393 to 0.623 in
 Cable Type Non-Armored/Tray
 Connection Type MNPT
 Finish Natural
 Manufacturer Part Number CGB139
 Material Steel
 PART NUMBER KEYWORDS CGB139 ; 21055217 ; 783936184531 ; 78393618453
 Series CGB
 Standards/Approvals NEC/CEC Compliant
 Temperature Rating -40 to 80 deg C
 Trade Size 1/2 in
 Type Straight
 Video Links

Features

▪ Revolutionary design covers a broader range of cable sizes

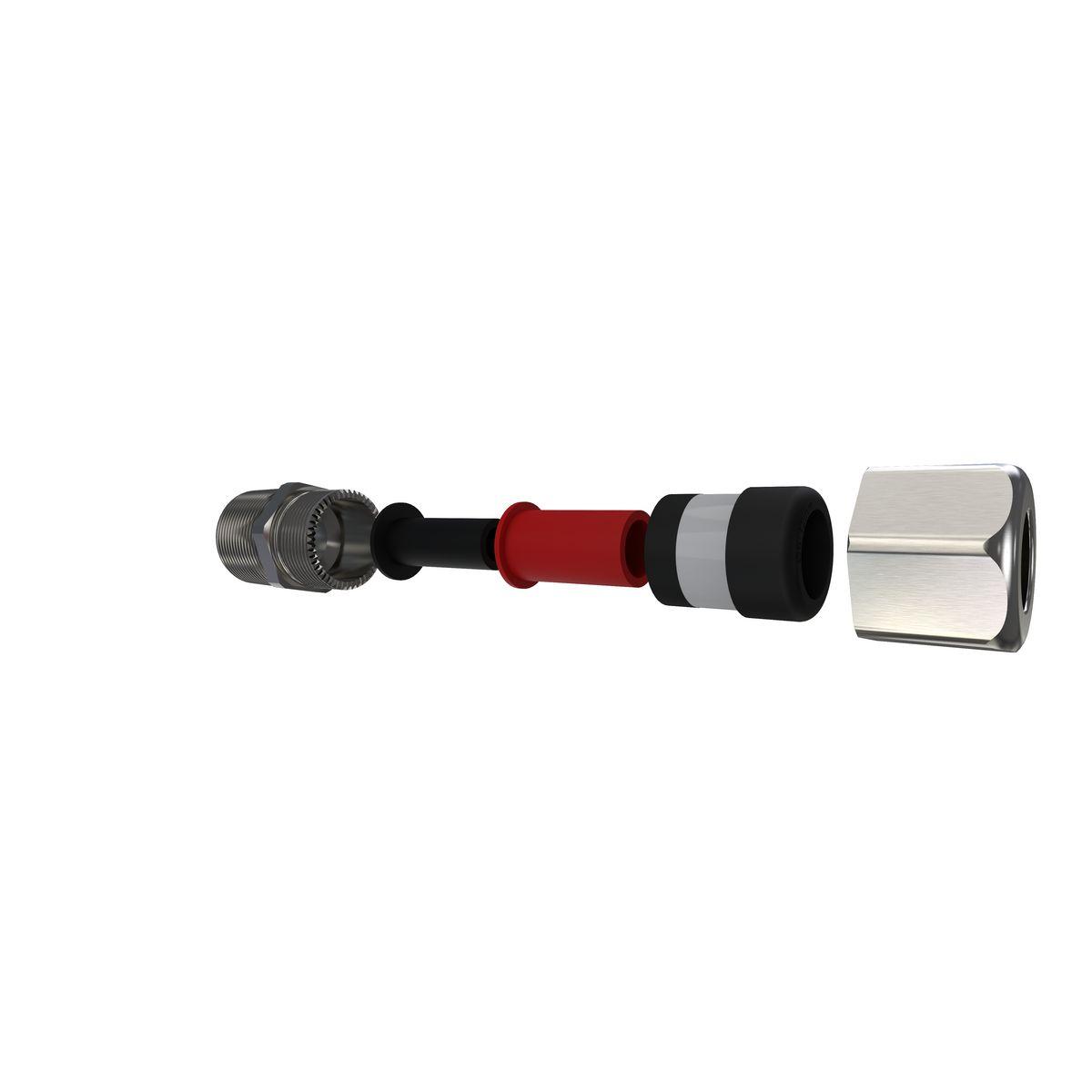

▪ Grommet sleeves are field removable to adjust to multiple cable ranges and cable diameter variances
▪ Eliminates carrying numerous amounts of different CGB type connectors for job sites
▪ Available in sizes ranging from 1/2 in" to 4 in NPT in copper-free aluminum, zinc plated steel, 316L stainless steel and nickel plated brass finishes
