Eaton

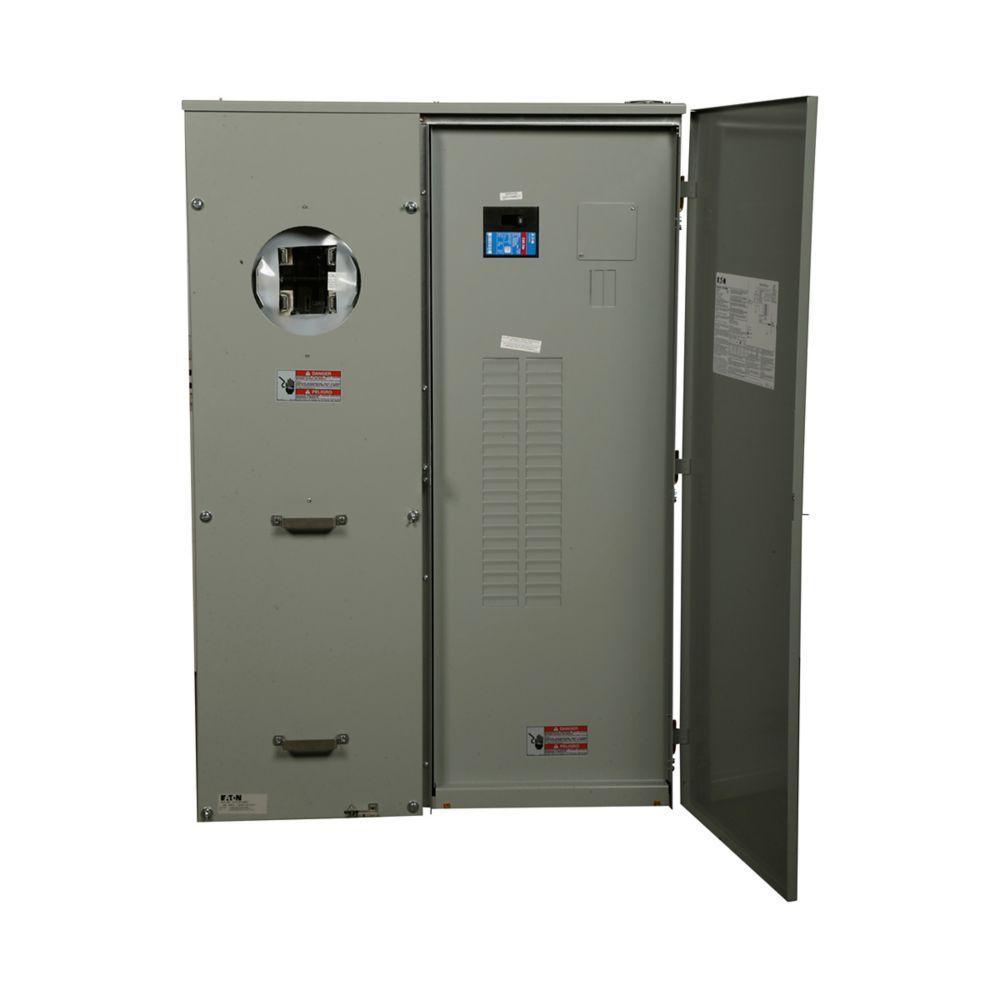

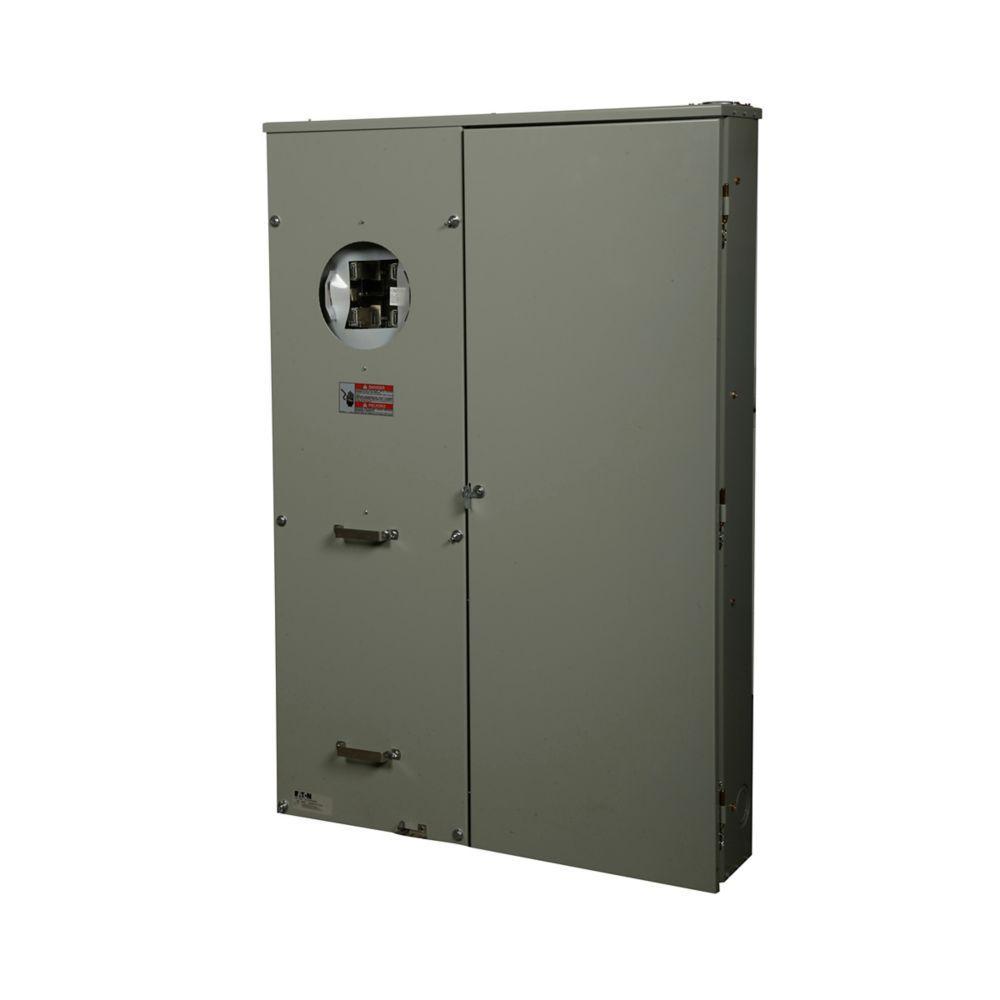

CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision

Mouse over image to zoom, click to enlarge

  • CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision
  • CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision
  • CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision
  • CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision

Description: EATON House Panel, 1-Socket Lever Bypass Ring Underground Feed, For Use With: CSR2200N Main Circuit Breaker and Type BR/CSH Secondary Main Circuit Breaker, 400 A at 120/240 V AC, 22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount, Aluminum, 7.5 in L x 30.062 in W x 44.062 in H

Manufacturer PN: CG1212P400BSL

UPC:  78211611041

Kendall Electric Inc PN: 2590645

Invoice Description:

CG1212P400BSL C-H 400A House Panel, 1 200A MAIN INCLUDED / 1 provision


SPEC SHEET

▸ See All in Metering Miscellaneous Accessories


How Can We Make This Page Better?

EATON CG1212P400BSL 1-Socket Lever Bypass Ring Underground Feed House Panel, For Use With CSR2200N Main Circuit Breaker and Type BR/CSH Secondary Main Circuit Breaker, 400 A at 120/240 V AC, 22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's House Panel service entrance devices consist of a meter socket and a distribution section. They offer fast, easy and safe installation. Available in CH and BR styles. In addition to residential installations, a house panel can also be used for an apartment, condominium, clubhouse or common area.
EATON House Panel, 1-Socket Lever Bypass Ring Underground Feed, For Use With: CSR2200N Main Circuit Breaker and Type BR/CSH Secondary Main Circuit Breaker, 400 A at 120/240 V AC, 22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount, Aluminum, 7.5 in L x 30.062 in W x 44.062 in H

Specifications

 Application Apartments, Condominiums, Clubhouses/Common Areas, Power Distribution, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Dimensions 7.5 in L x 30.062 in W x 44.062 in H
 Manufacturer Part Number CG1212P400BSL
 Material Aluminum
 Specifications 400 A at 120/240 V AC, 22 kA Interrupt Rating, NEMA 3R Enclosure, Surface Mount
 Standards/Approvals UL Listed,EUSERC Approved,MEG Approved
 Suitable For Use With CSR2200N Main Circuit Breaker and Type BR/CSH Secondary Main Circuit Breaker
 Type 1-Socket Lever Bypass Ring Underground Feed

Features

▪ In response to contractor feedback, these panels have been redesigned with a focus on flexibility, simplified wiring and an overall ease of installation
▪ All units come standard with a 22 kAIC main breaker
▪ The load conductors can exit the top, bottom, side or back for greater application and installation flexibility
