Emerson Electric

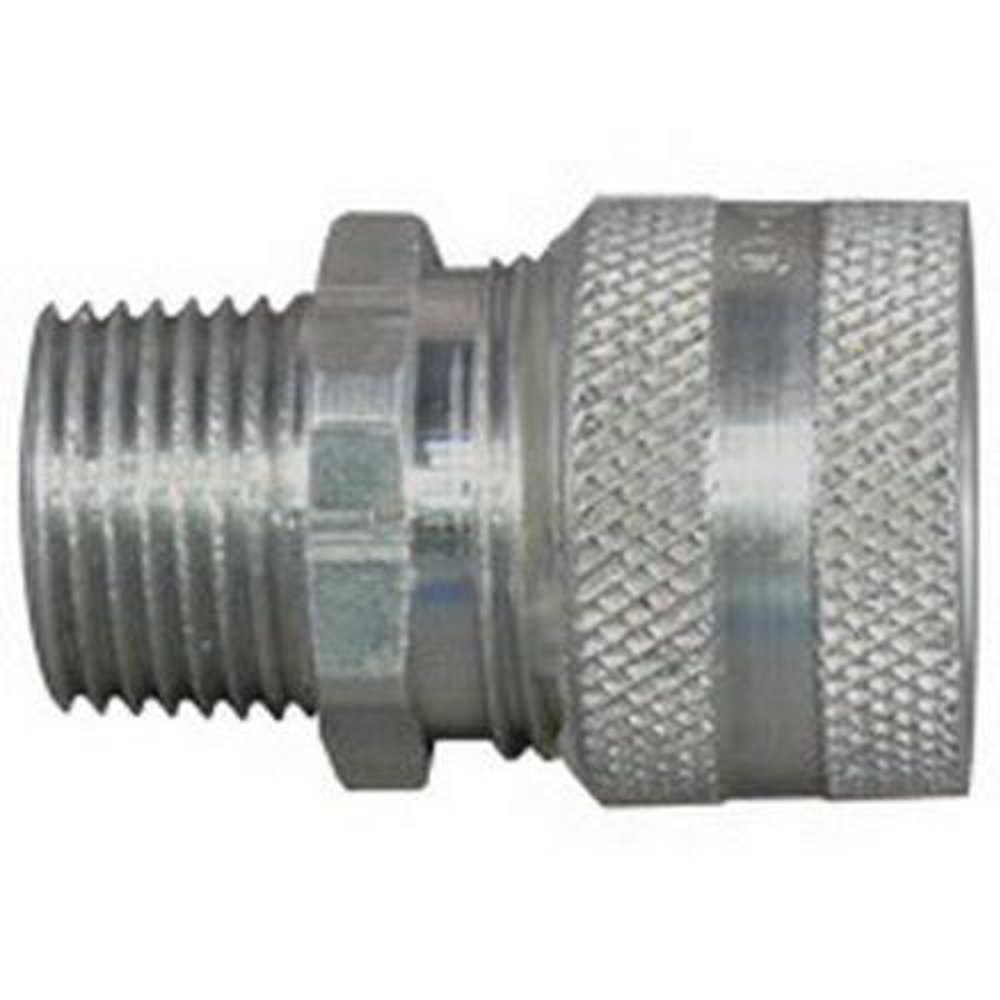

CG100125 APP 1-1/4 WT CBL CONN ALUM 1.000-1.125 BLUE

Mouse over image to zoom, click to enlarge

Description: Appleton® Straight Cord Connector, Strain Relief, Series: CG Series, 1-1/4 in, Cable Openings: 1 to 1-1/8 in, Threaded Hub, Aluminum, Natural, Blue Label, 2.13 in Dia

Manufacturer PN: CG-100125

UPC:  78138119205

Kendall Electric Inc PN: 16523

Invoice Description:

CG100125 APP 1-1/4 WT CBL CONN ALUM 1.000-1.125 BLUE


SPEC SHEET

▸ See All in Liquid Tight Straight Cord Connectors


How Can We Make This Page Better?

Appleton® CG-100125 CG Series Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1 to 1-1/8 in Cable Openings, Aluminum, Natural

Log In for Pricing and Availability




Description

Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.
Appleton® Straight Cord Connector, Strain Relief, Series: CG Series, 1-1/4 in, Cable Openings: 1 to 1-1/8 in, Threaded Hub, Aluminum, Natural, Blue Label, 2.13 in Dia

Specifications

 Application For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
 Brand Name Appleton
 Cable Openings 1 to 1-1/8 in
 Color Blue Label
 Connection Type Threaded Hub
 Dimensions 2.13 in Dia
 Finish Natural
 Manufacturer Part Number CG-100125
 Material Aluminum
 PART NUMBER KEYWORDS CG-100125 ; CG100125 ; 8327094 ; 781381192057 ; 78138119205 ; 00781381192057
 Series CG Series
 Standards/Approvals CSA C22.2 File No.18.3|CSA 065178|UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III|UL 514B File No. E14817 Listed
 Trade Size 1-1/4 in
 Type Strain Relief

Features

▪ Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
▪ Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
▪ Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
▪ Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
▪ For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
▪ Silicone free
