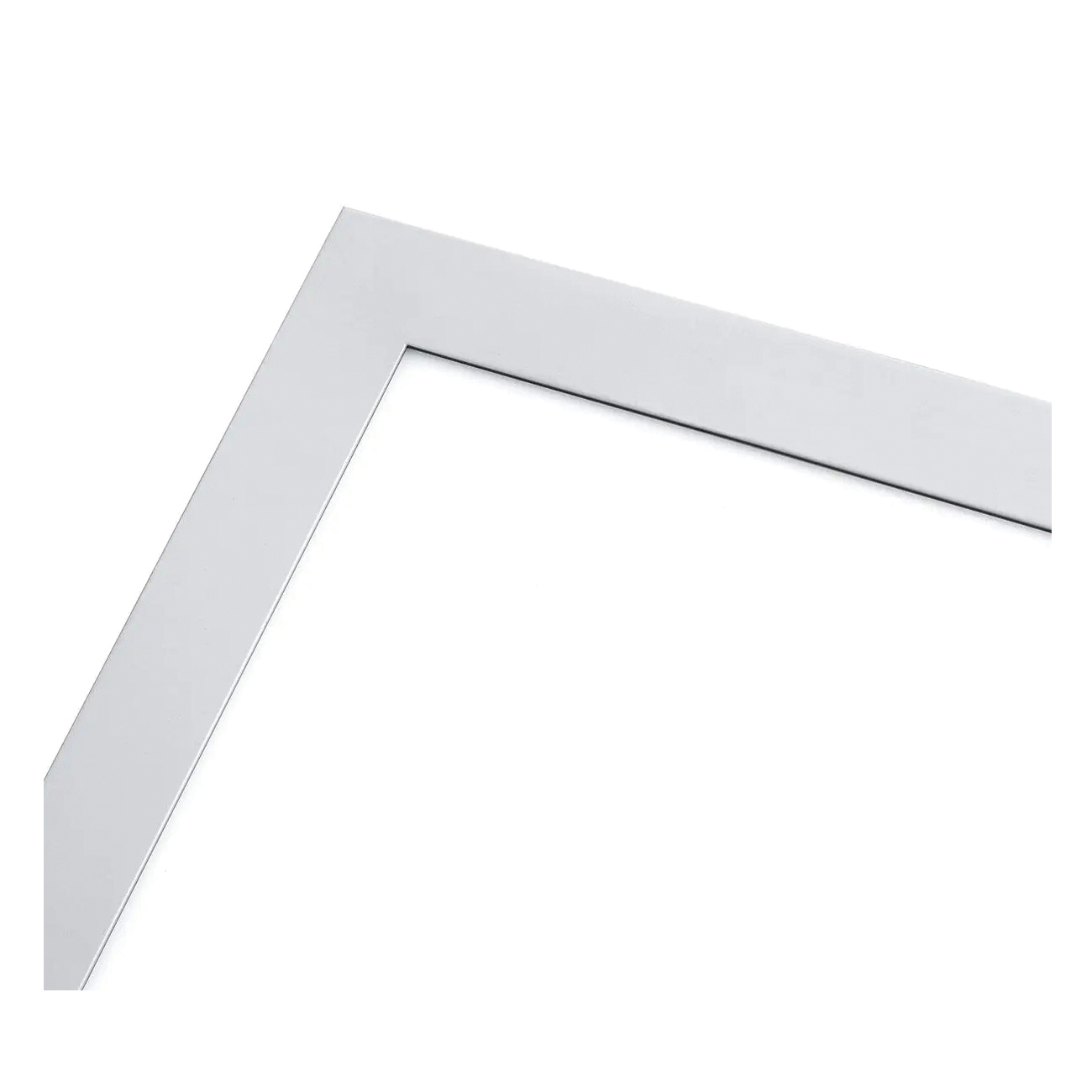

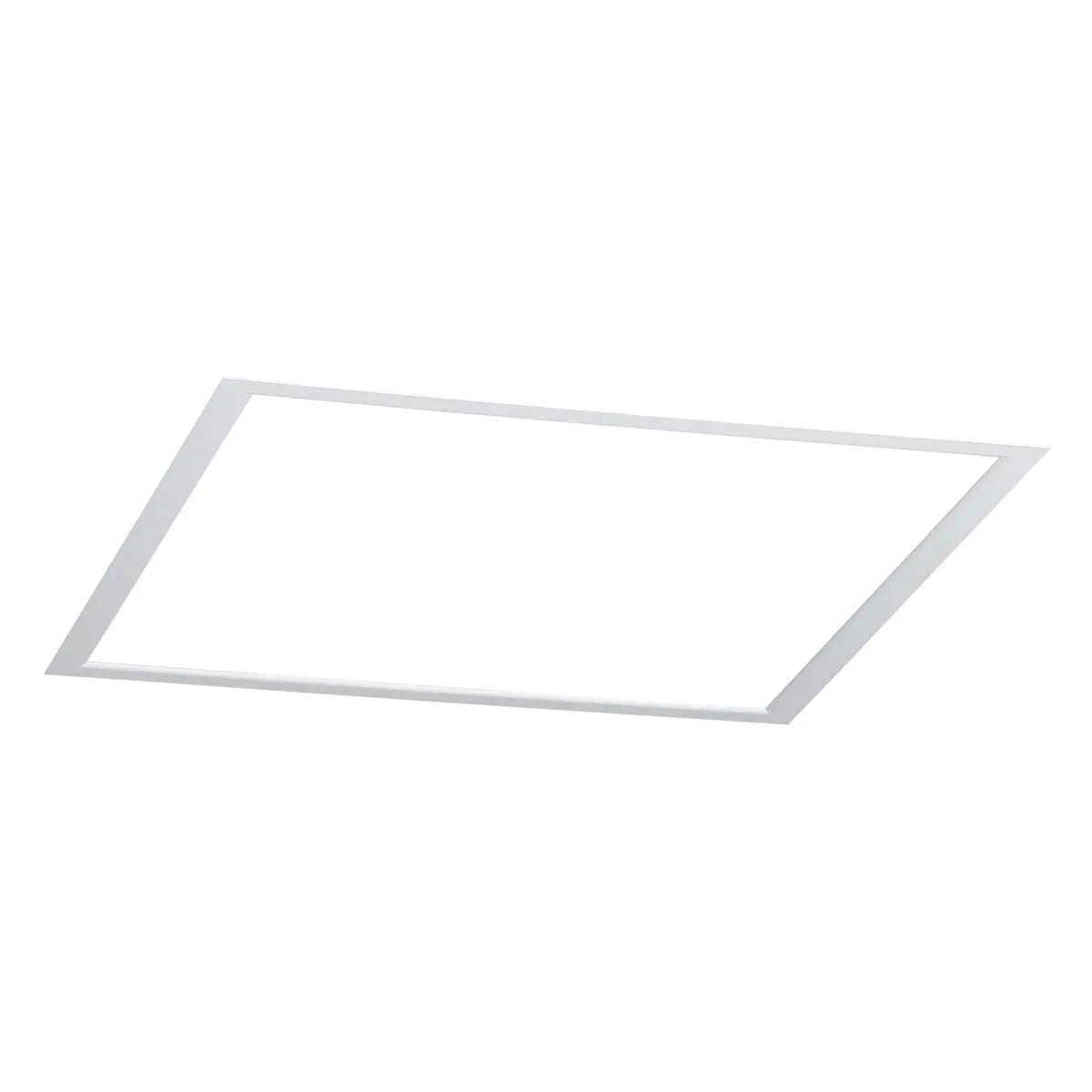

CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4

Mouse over image to zoom, click to enlarge

  • CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4
  • CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4
  • CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4
  • CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4
  • CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4

Description: Columbia Lighting tradeSELECT® Edge-Lit Flat Panel, Series: CFP Series, 120/277 V, 50/40/31 W Lamp, 117/121/125 Lumens/W, 54000 hr Average Life, 3500 K Color, 80 CRI, Frosted/Textured Lens, 5880/4837/3847 Lumens, Ceiling/Surface Mount, Extruded Aluminum Housing

Manufacturer PN: CFP14-55/41/3435

Kendall Electric Inc PN: 4110276

Invoice Description:

CFP14-55/41/3435 COLUMBIA LED FLAT PANEL 1X4


SPEC SHEET

▸ See All in Indoor Ceiling Fixtures


How Can We Make This Page Better?

Columbia Lighting tradeSELECT® CFP14-55/41/3435 CFP Series Edge-Lit Flat Panel, 120/277 V, Extruded Aluminum Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

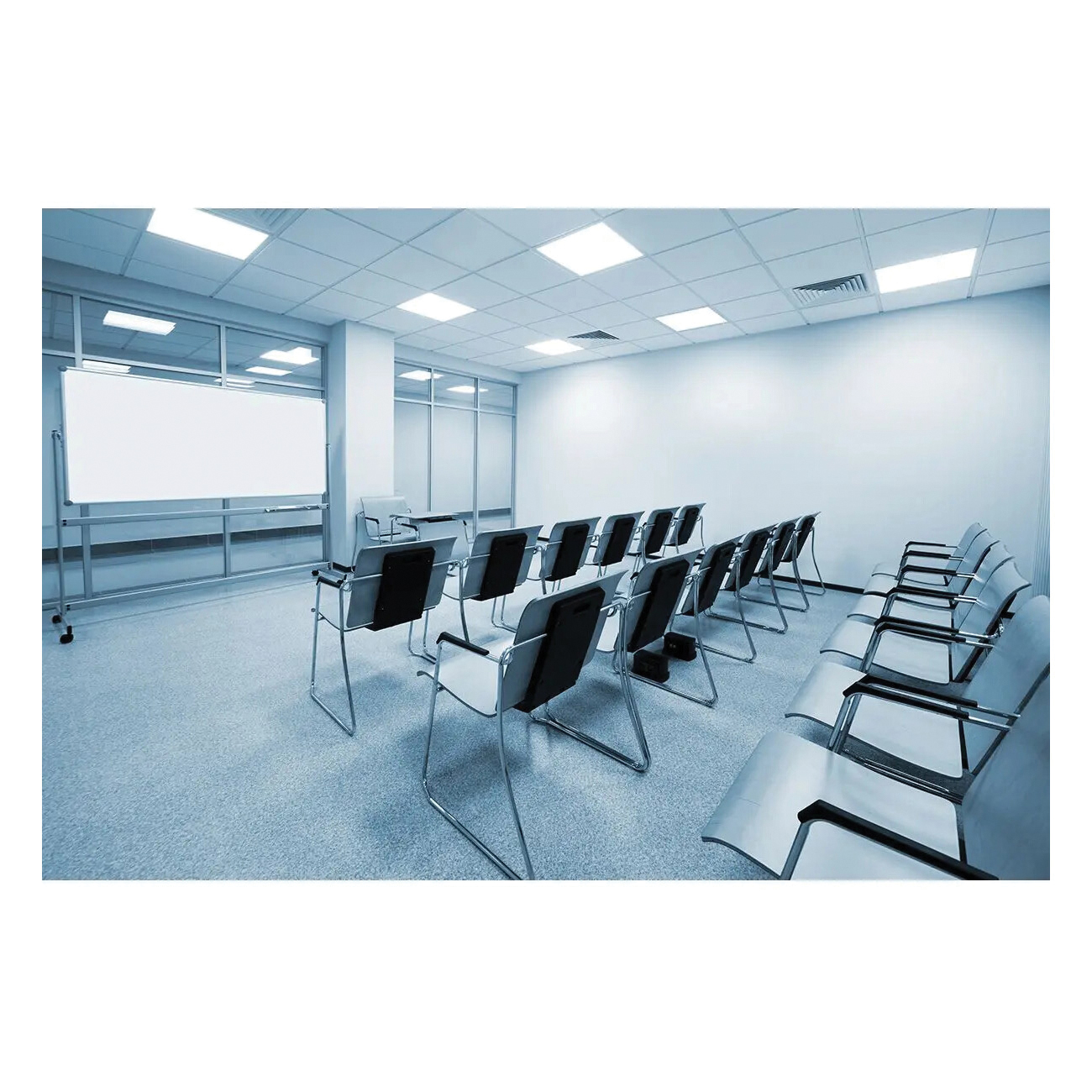

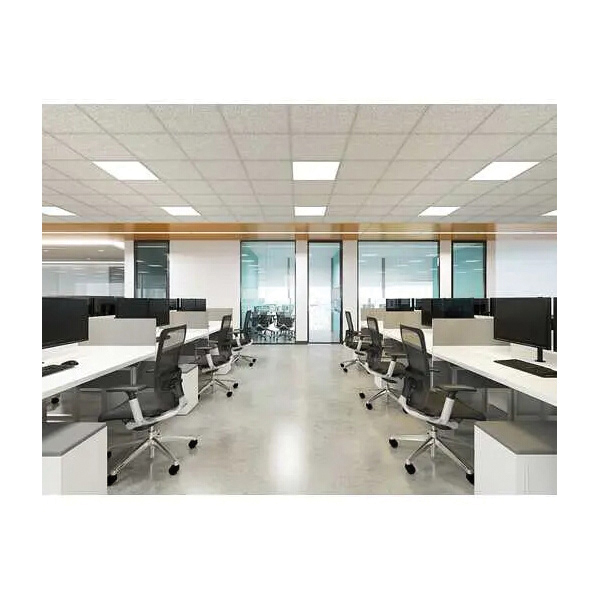

The CFP offers edge lit LED technology in a sleek, modern, flat panel design. light classrooms, offices, medical facilities, cleanrooms and general public spaces using edge to edge illumination, without pixelation or bright spots. Switchable Lumen technology creates built in versatility; choose between three configuration options for the right output with one easy switch.
Columbia Lighting tradeSELECT® Edge-Lit Flat Panel, Series: CFP Series, 120/277 V, 50/40/31 W Lamp, 117/121/125 Lumens/W, 54000 hr Average Life, 3500 K Color, 80 CRI, Frosted/Textured Lens, 5880/4837/3847 Lumens, Ceiling/Surface Mount, Extruded Aluminum Housing

Specifications

 Application Commercial Indoor, Classrooms and Offices, Halls/Dorms, Conference Room, Meeting Room and Common Areas Applications
 Average Life 54000 hr
 Brand Name COLUMBIA LIGHTING
 Color Rendering Index CRI 80
 Color Temperature 3500 K
 Housing Material Extruded Aluminum
 Lamp Wattage 50/40/31 W
 Light Output 117/121/125 Lumens/W
 Lumens 5880/4837/3847 Lumens
 Manufacturer Part Number CFP14-55/41/3435
 Mounting Type Ceiling/Surface
 Series CFP Series
 Standards/Approvals cULus Listed for Damp Location|DLC Listed|Energy Efficient Certified|ETL Listed|IC Certified|UL 1598
 Video Links
 Voltage Rating 120/277 V

Features

▪ Switchable Lumen technology 5500/4100/3400 Lumens (1x4, 2x4)
▪ 0 to 10 V dimming to 10%
▪ T-bar clips for secure mounting
▪ 54000 hr LEDs at L70 for reduced maintenance
▪ Suitable for ISO Class 5-9 positive pressure cleanrooms
▪ DLC® (DesignLights Consortium) qualified, with some premium qualified configurations - see www.designlights.org
