Hubbell
CFB4G30CRE HUBBELL FB

Mouse over image to zoom, click to enlarge

  • CFB4G30CRE HUBBELL FB
  • CFB4G30CRE HUBBELL FB
  • CFB4G30CRE HUBBELL FB
  • CFB4G30CRE HUBBELL FB
  • CFB4G30CRE HUBBELL FB

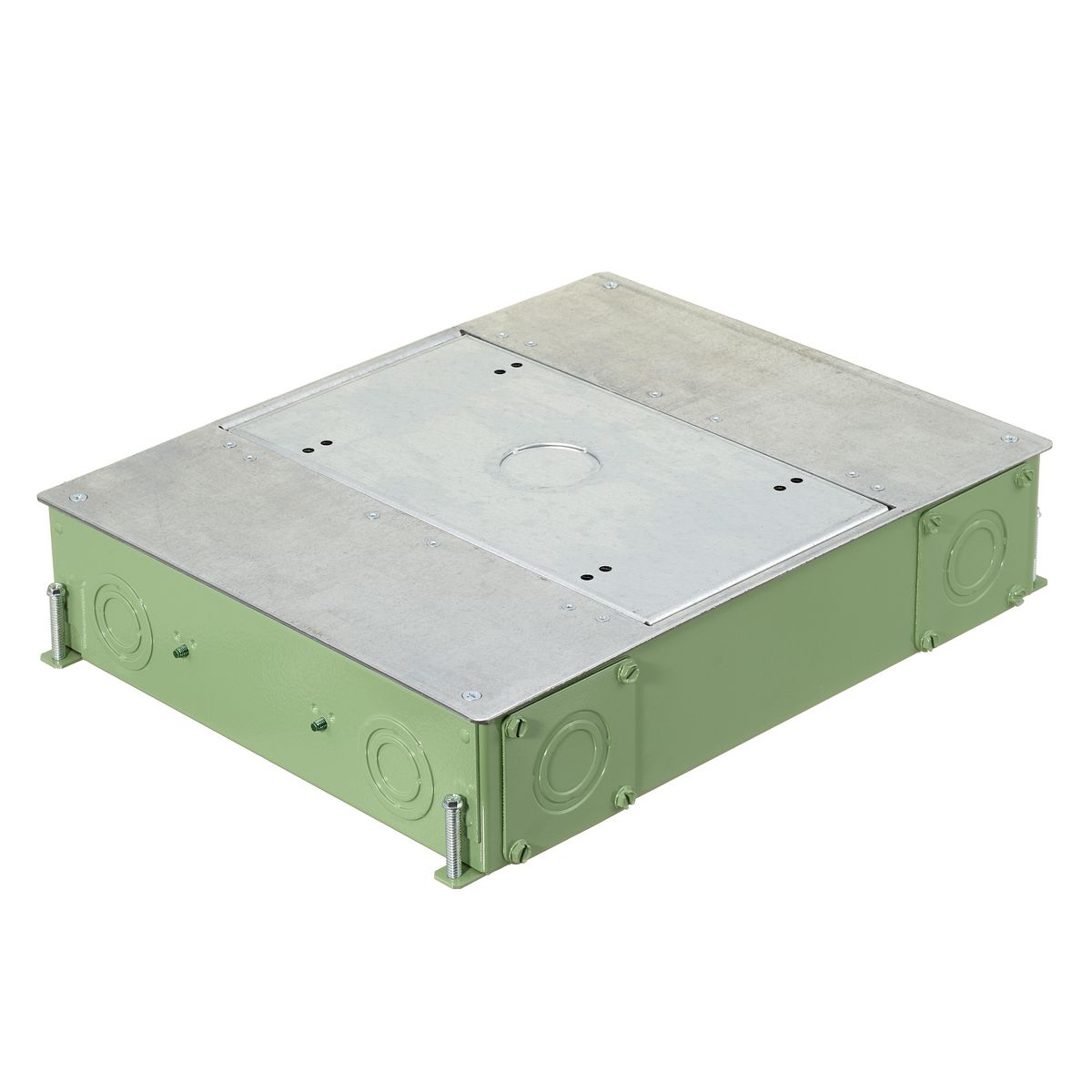

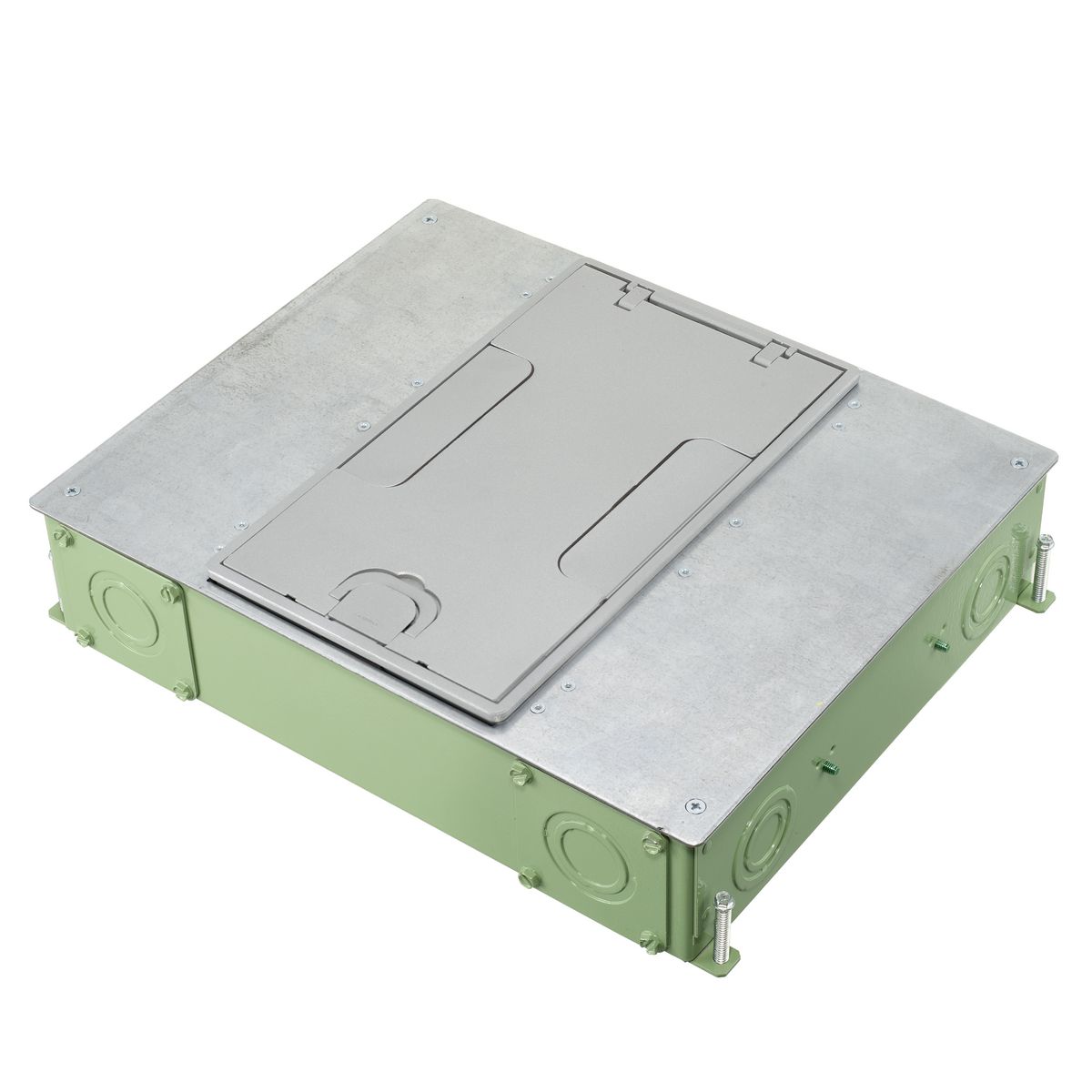

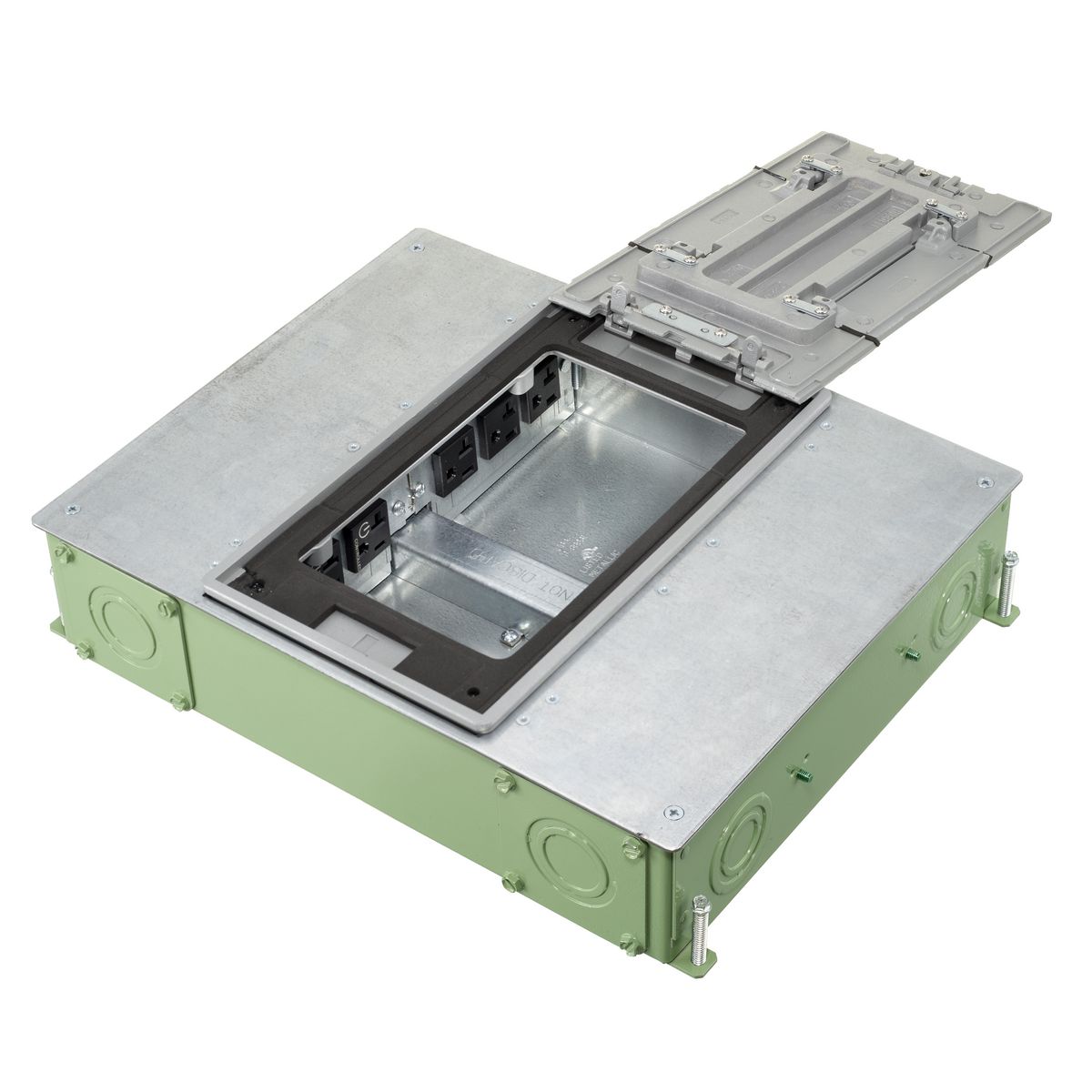

Description: Hubbell Wiring Device-Kellems, CFB4G30CRE, Floor Box, Recessed, Series: SystemOne ETERNAL™, 4 Gangs, 12 Knockouts, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom Knockout, 2 in Hub, Rectangle Shape, Field Mounting, 51 cu-in Capacity, Stamped Steel, Galvanized, Metallic/Green Epoxy Paint, 3 in H x 11.33 in W x 14.57 in L Dimensions

Manufacturer PN: CFB4G30CRE

UPC:  78358569530

Kendall Electric Inc PN: 4725240

Invoice Description:

CFB4G30CRE HUBBELL FB


SPEC SHEET

▸ See All in Floor Boxes


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems CFB4G30CRE SystemOne ETERNAL™ Recessed Floor Box, Stamped Steel, 51 cu-in Capacity, 4 Gangs, (12) Knockouts, 3 in H x 11.33 in W x 14.57 in L

Log In for Pricing and Availability




Description

Recessed 4 Gang concrete floorbox with rectangular cover, corrosion resistant painted, floorbox for use in concrete floors. The floorbox has 3.75 in deep wiring chambers for large AV modules and feed-thru capacity. The floorbox offers the ability for field installed external high capacity hubs sold separately, includes flush installation cover and 1/2 in prepour cap. Each gang includes (1) 6 in Solid #12 AWG Conductor grounding pigtail
Hubbell Wiring Device-Kellems, CFB4G30CRE, Floor Box, Recessed, Series: SystemOne ETERNAL™, 4 Gangs, 12 Knockouts, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom Knockout, 2 in Hub, Rectangle Shape, Field Mounting, 51 cu-in Capacity, Stamped Steel, Galvanized, Metallic/Green Epoxy Paint, 3 in H x 11.33 in W x 14.57 in L Dimensions

Specifications

 Application For Use in Concrete Floors
 Brand Name Hubbell Premise Wiring
 Color Metallic/Green Epoxy Paint
 Dimensions 3 in H x 11.33 in W x 14.57 in L
 Finish Galvanized
 Hub Size 2 in
 Includes Installation Cover and 1/2 in Prepour Cap, (1) 6 in Solid #12 AWG Conductor grounding pigtail
 Knockout Size (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom
 Manufacturer Part Number CFB4G30CRE
 Material Stamped Steel
 Mounting Type Field
 Number of Gangs 4
 Number of Knockouts 12
 PART NUMBER KEYWORDS CFB4G30CRE ; 783585695303 ; 78358569530 ; 00783585695303
 Series SystemOne ETERNAL™
 Shape Rectangle
 Standards/Approvals cULus Listed|UL 514 Listed
 Type Recessed
 Video Links

Features

▪ Corrosion-Resistant Painted Recessed 4-Gang Rectangular Cover Floorbox
▪ 3.75 in Deep Wiring Chambers
▪ External High Capacity Feed-Thru Hubs Sold Separately
▪ 3.00 in Minimum Depth of Pour
