Hubbell

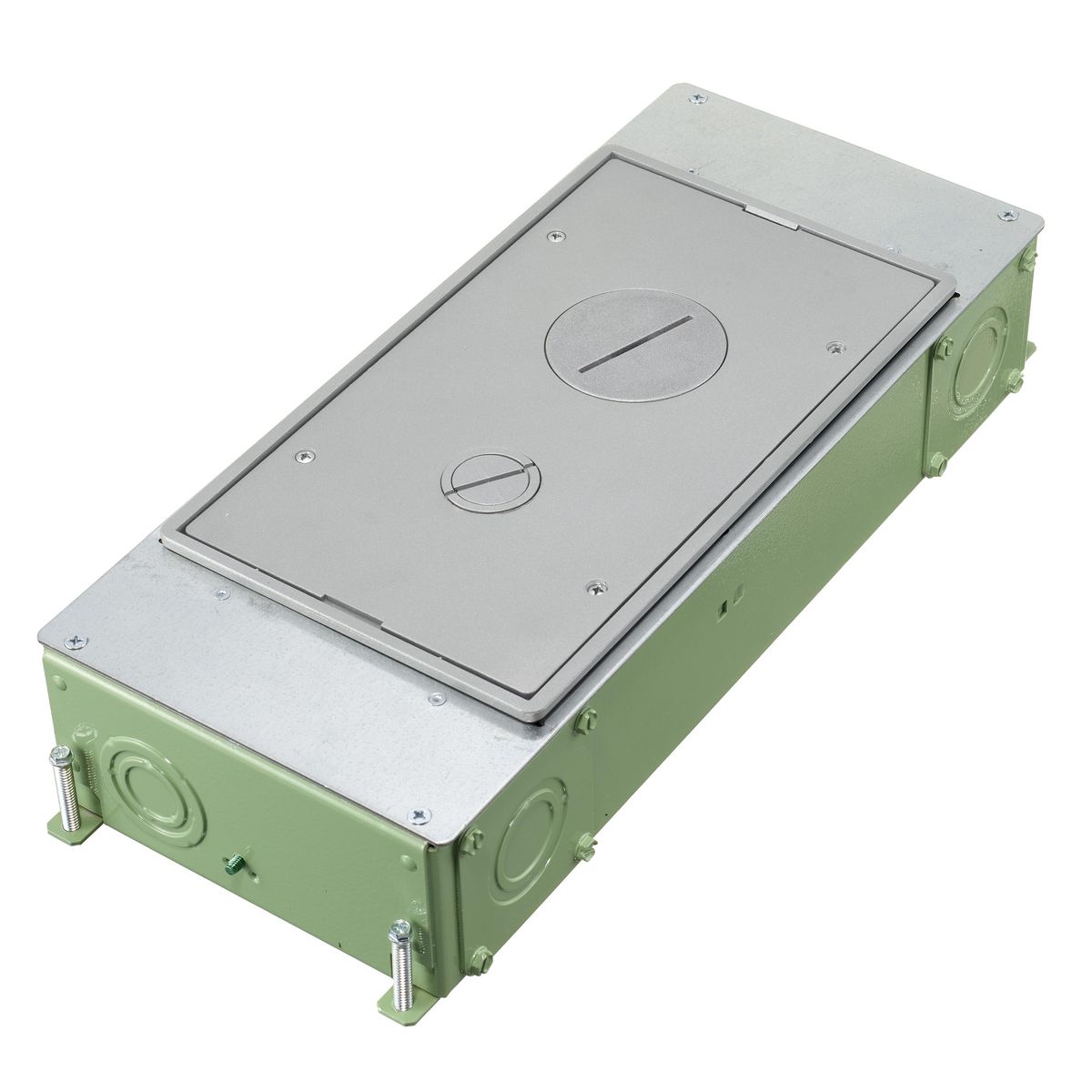

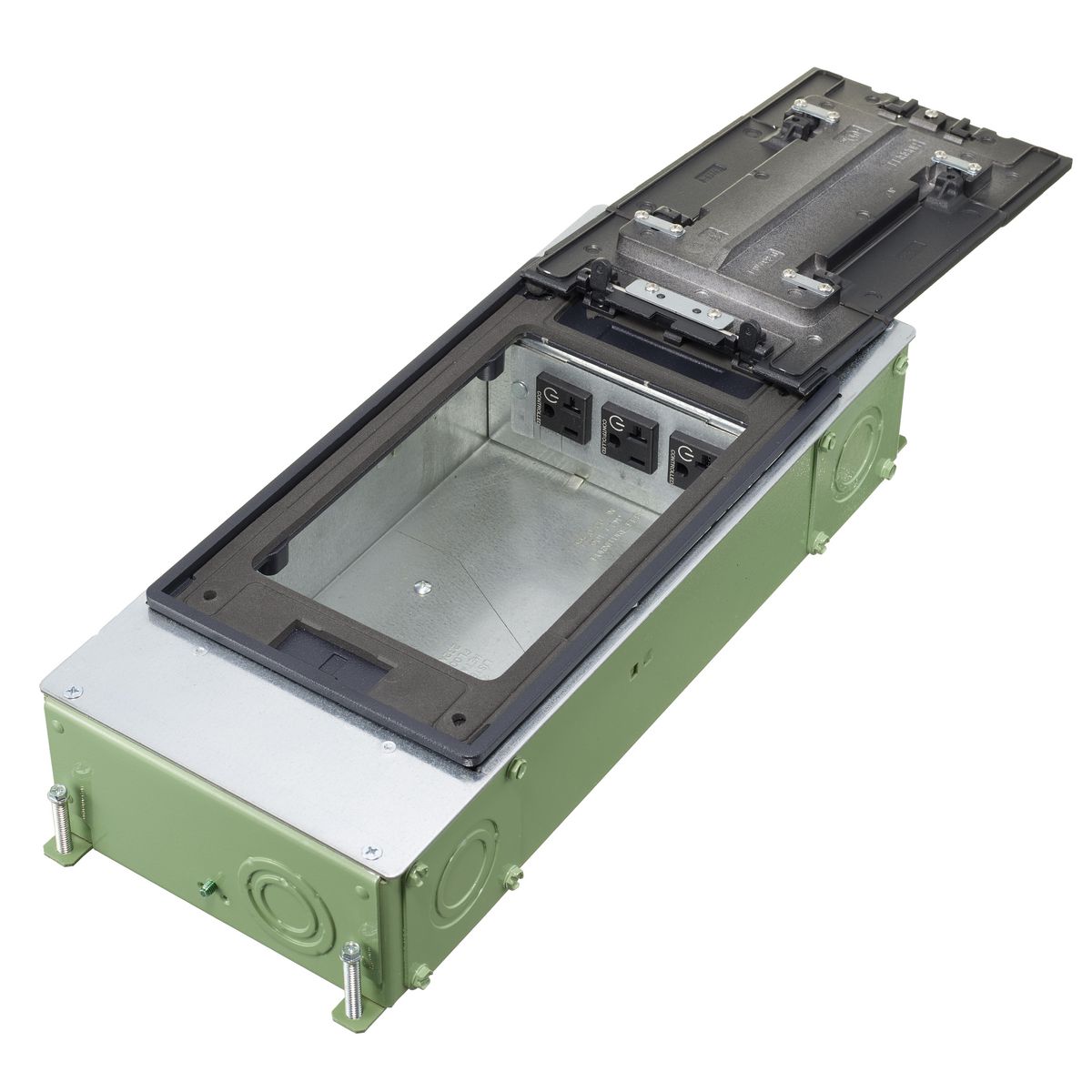

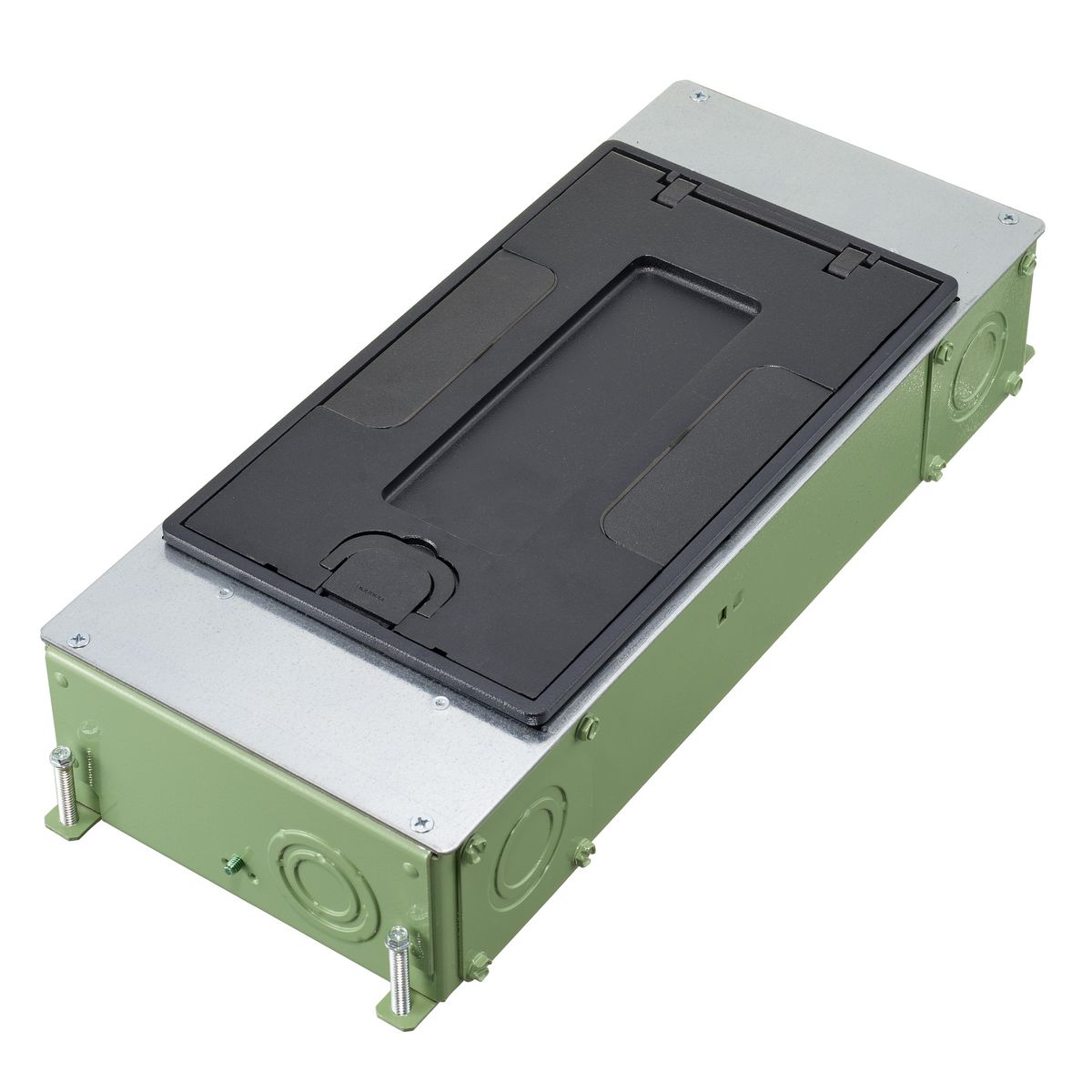

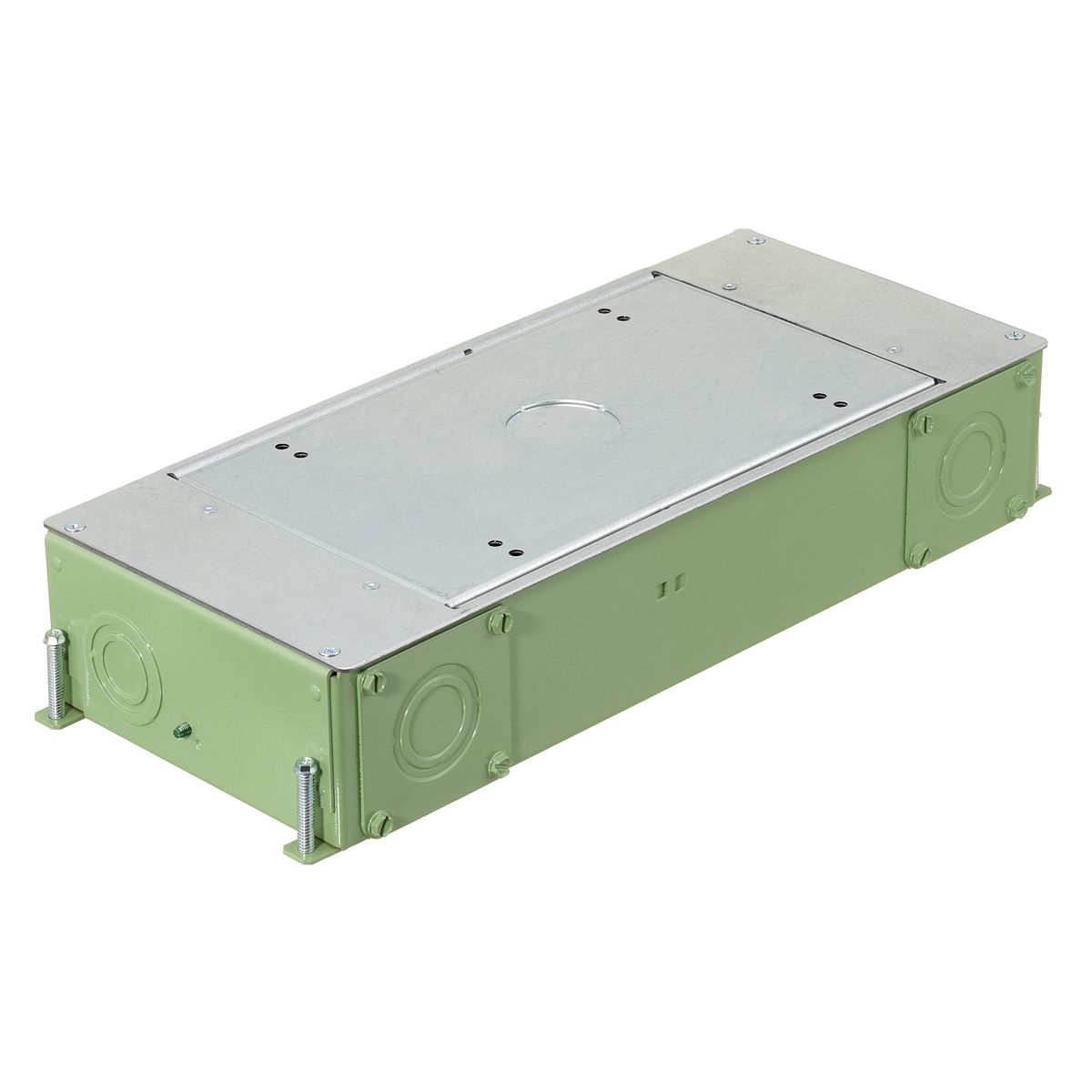

CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER

Mouse over image to zoom, click to enlarge

  • CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER
  • CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER
  • CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER
  • CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER
  • CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER

Description: Hubbell Wiring Device-Kellems, CFB2G30CRE, Floor Box, Recessed, Series: SystemOne ETERNAL™, 2 Gangs, 10 Knockouts, (2) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom Knockout, 2 in Hub, Rectangle Shape, Field Mounting, 56.5 cu-in Capacity, Stamped Steel, Galvanized, Metallic/Green Epoxy Paint, 3 in H x 6.62 in W x 16.27 in L Dimensions

Manufacturer PN: CFB2G30CRE

UPC:  78358569521

Kendall Electric Inc PN: 4763842

Invoice Description:

CFB2G30CRE HUBBELL RECESSED 2-GANG CONCRETE FLOORBOX WITH RECTANGULAR COVER


SPEC SHEET

▸ See All in Floor Boxes


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems CFB2G30CRE SystemOne ETERNAL™ Recessed Floor Box, Stamped Steel, 56.5 cu-in Capacity, 2 Gangs, (10) Knockouts, 3 in H x 6.62 in W x 16.27 in L

Log In for Pricing and Availability




Description

Recessed 2 Gang concrete floorbox with rectangular cover, corrosion resistant painted, floorbox for use in concrete floors. The floorbox has 3.75 in deep wiring chambers for large AV modules and feed-thru capacity. The floorbox offers the ability for field installed external high capacity hubs sold separately, includes flush installation cover and 1/2 in prepour cap. Each gang includes (1) 6 in Solid #12 AWG Conductor grounding pigtail
Hubbell Wiring Device-Kellems, CFB2G30CRE, Floor Box, Recessed, Series: SystemOne ETERNAL™, 2 Gangs, 10 Knockouts, (2) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom Knockout, 2 in Hub, Rectangle Shape, Field Mounting, 56.5 cu-in Capacity, Stamped Steel, Galvanized, Metallic/Green Epoxy Paint, 3 in H x 6.62 in W x 16.27 in L Dimensions

Specifications

 Application For Use in Concrete Floors
 Brand Name Hubbell Premise Wiring
 Color Metallic/Green Epoxy Paint
 Dimensions 3 in H x 6.62 in W x 16.27 in L
 Finish Galvanized
 Hub Size 2 in
 Includes Installation Cover and 1/2 in Prepour Cap, (1) 6 in Solid #12 AWG Conductor grounding pigtail
 Knockout Size (2) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom
 Manufacturer Part Number CFB2G30CRE
 Material Stamped Steel
 Mounting Type Field
 Number of Gangs 2
 Number of Knockouts 10
 PART NUMBER KEYWORDS CFB2G30CRE ; 783585695211 ; 78358569521 ; 00783585695211
 Series SystemOne ETERNAL™
 Shape Rectangle
 Standards/Approvals cULus Listed|UL 514 Listed
 Type Recessed
 Video Links

Features

▪ Corrosion-Resistant Painted Recessed 2-Gang Rectangular Cover Floorbox
▪ 3.75 in Deep Wiring Chambers
▪ External High Capacity Feed-Thru Hubs Sold Separately
▪ 3.00 in Minimum Depth of Pour
