Leviton

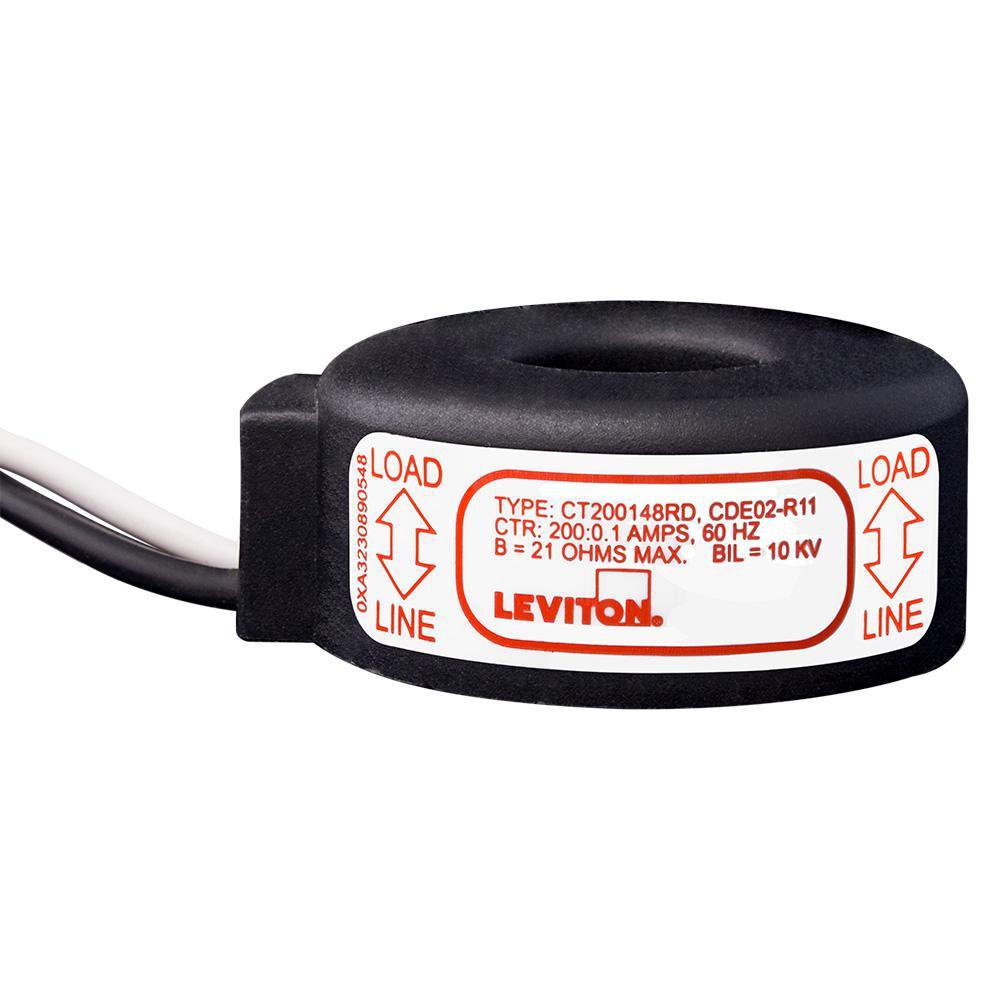

CDE02-R11 LEVITON 1RD SC 0.67ID CT200:01A

Mouse over image to zoom, click to enlarge

Description: Leviton® VerifEye™ Current Transformer, Solid Core Sub-Metering, 200:0.1 Current Ratio, 200 A Primary Current, 0.1 A Secondary Current, 0.67 in ID x 1.65 in OD x 0.71 in THK

Manufacturer PN: CDE02-R11

UPC:  07847754731

Kendall Electric Inc PN: 3783490

Invoice Description:

CDE02-R11 LEVITON 1RD SC 0.67ID CT200:01A


SPEC SHEET

▸ See All in Current Transformers


How Can We Make This Page Better?

Leviton® VerifEye™ CDE02-R11 Solid Core Sub-Metering Current Transformer, 200:0.1 Current Ratio, 200 A Primary, 0.1 A Secondary

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® current transformers (CTs) support our full line of VerifEye™ revenue grade meters and help meet all measurement and verification based opportunities including smart metering and LEED rating achievement. Designed as part of a simple and effective process for accurately capturing measurements of power consumption, CTs are easy to specify and install for new construction and retrofits. The better the equipment, the better the measurement. Leviton® meters utilize highly accurate current transformers for revenue grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same level of performance. CTs come as solid core standard for high quality, long term accuracy and reliability. Solid core CTs deliver +/-0.3% accuracy. Split core and Rogowski coil CTs deliver +/-1.0% accuracy. For added safety, all Leviton® current transformers come with built-in voltage suppression devices that prevent hazardous voltages from developing on CT secondaries should they become disconnected from a meter with load current present. Leviton® CTs are UL and cUL listed devices.
Leviton® VerifEye™ Current Transformer, Solid Core Sub-Metering, 200:0.1 Current Ratio, 200 A Primary Current, 0.1 A Secondary Current, 0.67 in ID x 1.65 in OD x 0.71 in THK

Specifications

 Application Commercial, Institutional, Industrial, Government and Residential Applications
 Brand Name Leviton®
 Current Ratio 200:0.1
 Dimensions 0.67 in ID x 1.65 in OD x 0.71 in THK
 Manufacturer Part Number CDE02-R11
 PART NUMBER KEYWORDS CDE02-R11 ; CDE02R11
 Primary Current 200 A
 Secondary Current 0.1 A
 Standards/Approvals ANSI Specified|UL 916|ASHRAE 90.1|Title 24 Compliant
 Type Solid Core Sub-Metering
 Video Links

Features

▪ Solid core current transformers are cost effective transformerive and less susceptible to damage during installation
▪ Solid core current transformers slip over power lines to measure the electrical current flowing through the line
▪ The current transformer secondary wires current transformer to the meter facilitating power and energy calculations
▪ They are comp current transformer and cost effective transformative
▪ Solid core current transformers are accurate (0.3% maximum error)
▪ For installation, power must be de-energized and the circuit opened in order to slip the current transformer over the power line
