Puls

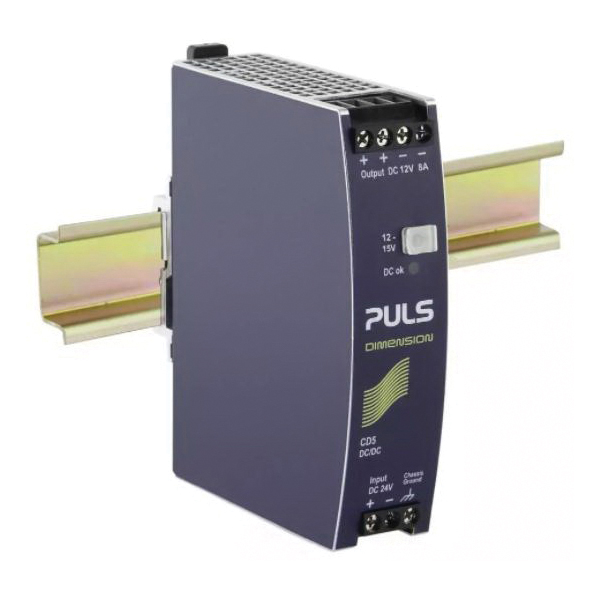

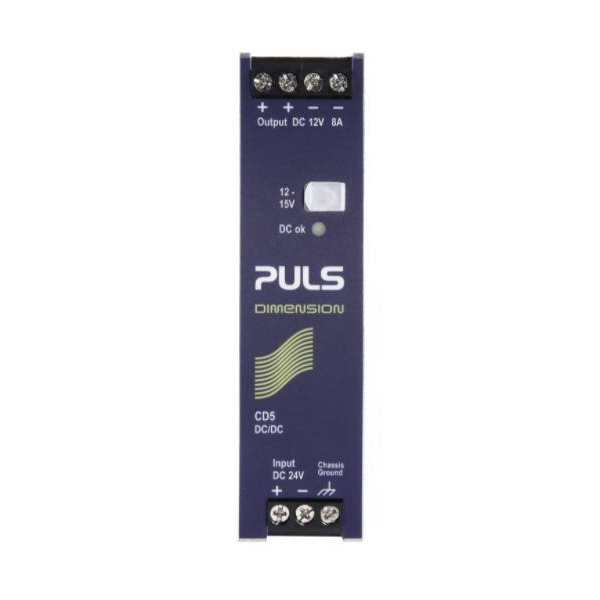

CD5.121 PULS POWER SUPPLY INPUT VOLTAGE: 18-32VDC; OUTPUT VOLTAGE: 12-15VDC; 8AMPS

Mouse over image to zoom, click to enlarge

  • CD5.121 PULS POWER SUPPLY INPUT VOLTAGE: 18-32VDC; OUTPUT VOLTAGE: 12-15VDC; 8AMPS
  • CD5.121 PULS POWER SUPPLY INPUT VOLTAGE: 18-32VDC; OUTPUT VOLTAGE: 12-15VDC; 8AMPS
  • CD5.121 PULS POWER SUPPLY INPUT VOLTAGE: 18-32VDC; OUTPUT VOLTAGE: 12-15VDC; 8AMPS

Manufacturer PN: CD5.121

Kendall Electric Inc PN: 2794026

Invoice Description:

CD5.121 PULS POWER SUPPLY INPUT VOLTAGE: 18-32VDC; OUTPUT VOLTAGE: 12-15VDC; 8AMPS


SPEC SHEET

▸ See All in DC to DC Converters


How Can We Make This Page Better?

Puls CD5.121 DC/DC Converter, 12 V, 8 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Specifications

 Adjustment Range 12 - 15 V
 Brand Name Puls
 DC Input Voltage DC 24 V (-25 %/+35 %)
 Derating 2.5 W/°C for >+60 °C
 Dimensions WxHxD 32 mm x 124 mm x 102 mm
 Efficiency Typ 88.2 %
 MTBF SN 29500 40 C H 1161000 h
 Mounting Method DIN rail
 Operating Temp Range -25 °C to 70 °C
 Output Current 6.4 A at 15 V
 Output Current Range 8 - 6.4 A
 Output Power 96 W
 Power Reserves 20 % Power Boost
 Ripple And Noise Voltage Max 75 mVpp
 Weight Per Unit Excl Packaging 425 g

Features

▪ 24 V DC-input
▪ Isolated 12 Vdc output
▪ Efficiency up to 88.2 %
▪ Width only 32 mm
▪ 20 % Output power reserves
▪ Full power between -25 °C and +60 °C
▪ Soft-start function
▪ Minimal inrush current surge
▪ Reverse input polarity protection
