Eaton

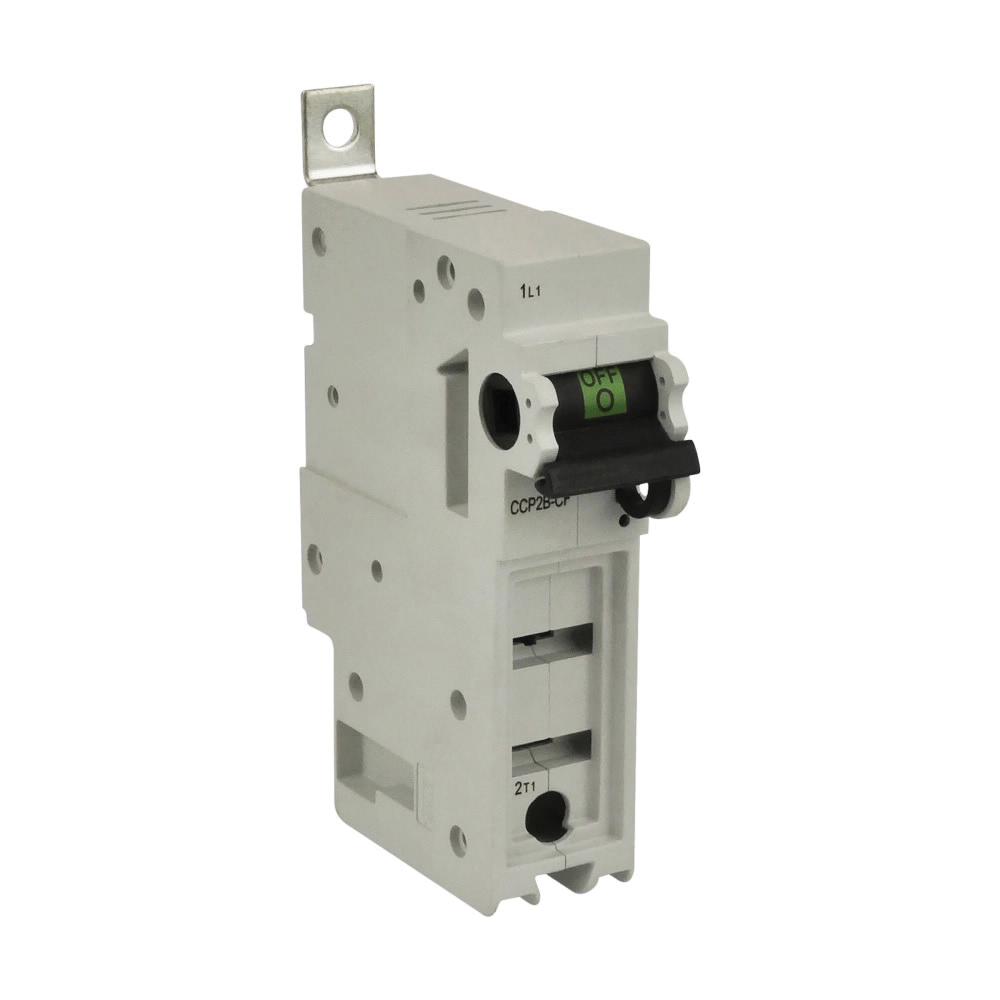

CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A

Mouse over image to zoom, click to enlarge

  • CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A
  • CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A
  • CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A
  • CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A

Description: Bussmann Circuit Protector Base, Compact Fused, Series: CCP2B, 347 VAC/125 VDC, 100 A, 1 Pole, Class CF Fuse, Bolt Mount, Switch Handle Operator, -20 to 75 deg C Operating, 3 in Width, 5.3 in Height

Manufacturer PN: CCP2B-1-70CF

UPC:  05171270951

Kendall Electric Inc PN: 4310020

Invoice Description:

CCP2B-1-70CF BUSSMANN 1 POLE COMP CKT PROTECT 70A


SPEC SHEET

▸ See All in Fusible Modules


How Can We Make This Page Better?

Bussmann CCP2B-1-70CF Compact Fused Circuit Protector Base, 347 VAC/125 VDC, 100 A, 1 Poles, Class CF Fuse

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The revolutionary Bussmann series compact circuit protector base (CCP2B) with CUBEFuse™ is a UL 98 horsepower rated fused branch circuit disconnect. Primarily used in the Bussmann series Quik-Spec™ Coordination Panelboard, the CCP2B with CUBEFuse™ simplifies selective coordination for code compliance and features a lockout/tagout feature for isolating individual branch circuit loads to promote safe work practices.
Bussmann Circuit Protector Base, Compact Fused, Series: CCP2B, 347 VAC/125 VDC, 100 A, 1 Pole, Class CF Fuse, Bolt Mount, Switch Handle Operator, -20 to 75 deg C Operating, 3 in Width, 5.3 in Height

Specifications

 Amperage Rating 100 A
 Brand Name Bussmann
 Fuse Type Class CF
 Height 5.3 in
 Manufacturer Part Number CCP2B-1-70CF
 Mounting Type Bolt
 Number of Poles 1
 Operating Temperature -20 to 75 deg C
 Operator Switch Handle
 Series CCP2B
 Standards/Approvals UL 98 File No. E302370, Guide WHTY|cULus to Canadian Standard 22.2 No. 4 File No. E302370, Guide WHTY7|CE Certified
 Type Compact Fused
 Video Links
 Voltage Rating 347 VAC/125 VDC
 Width 3 in

Features

▪ Uses finger-safe, current limiting class CF CUBEFuse™ with class J performance available in time delay or fast acting versions from 1 to 100 A
▪ Patented amp rating rejection feature helps prevent overfusing
▪ Disconnect rated to provide a means for load isolation
▪ UL 98 listed for branch circuit disconnect
▪ Open fuse indication lamp per pole speeds troubleshooting
▪ Additional open fuse indication can be provided by using the time delay indicating CUBEFuse™ in ratings from 6 to 100 A
▪ Built-in switch/fuse interlock prevents removing or installing a fuse while energized
▪ Permanent lockout/tagout and lock-on provision using a 1/4 in lock
▪ 200 kA AC, 100 kA DC short circuit current rating

Resources

 Catalog Page
 Product Data Sheet
