Eaton

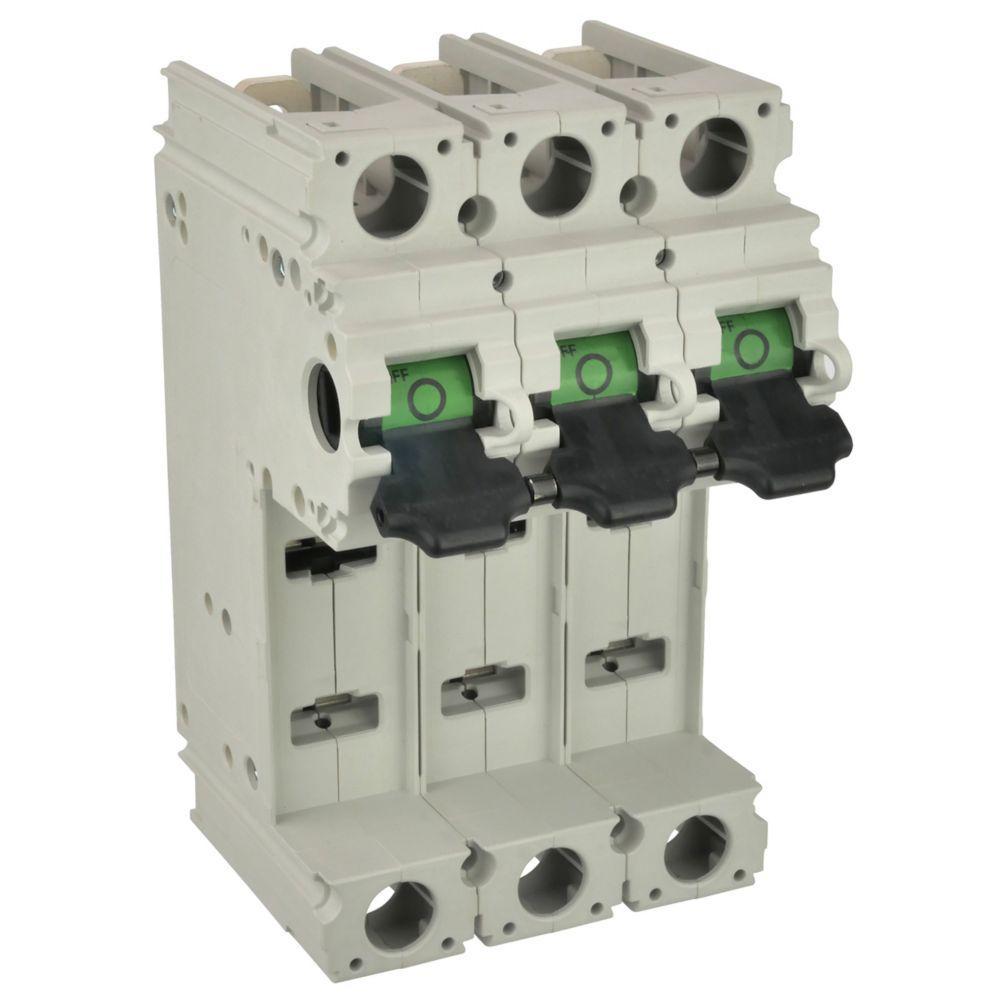

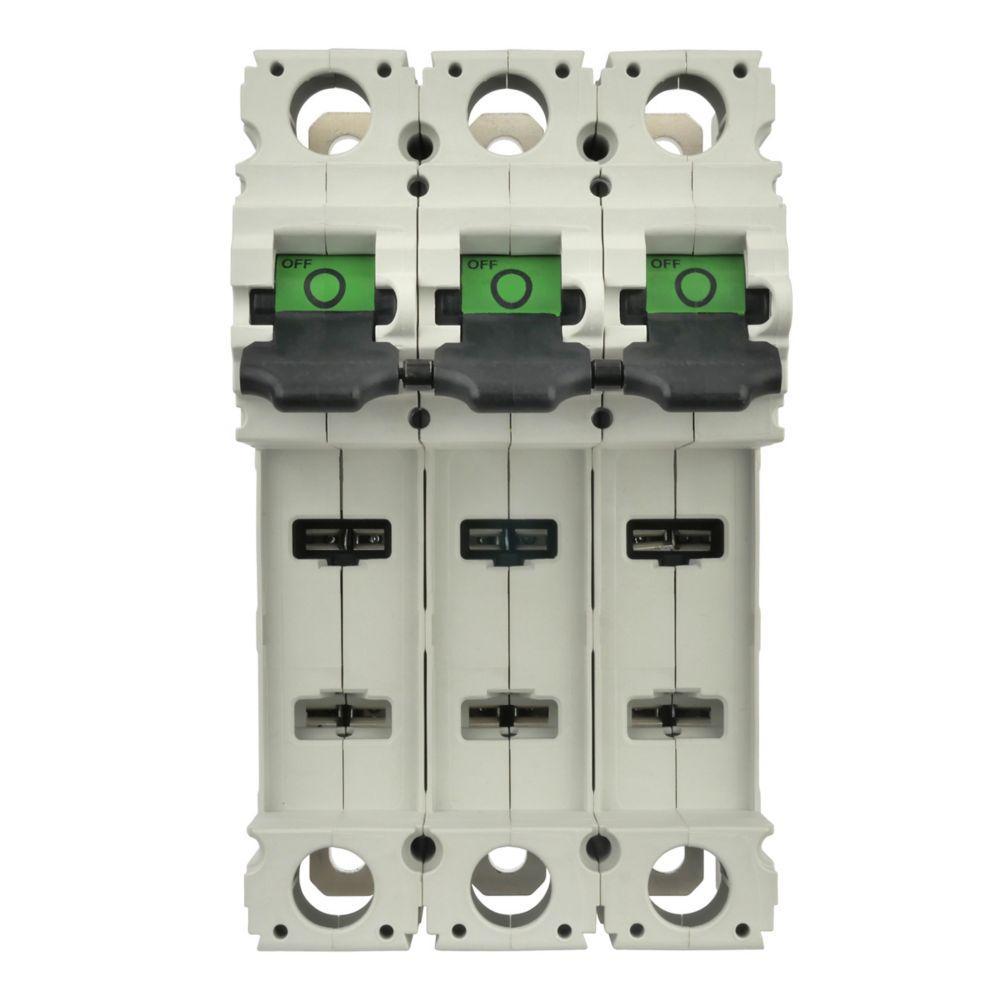

CCP2-3-200CF BUS FUSE

Mouse over image to zoom, click to enlarge

  • CCP2-3-200CF BUS FUSE
  • CCP2-3-200CF BUS FUSE
  • CCP2-3-200CF BUS FUSE

Description: EATON Bussmann CUBEFuse™ Circuit Protector Disconnect Switch, Compact Fused, 600 V AC/125 V DC, 200 A, 50/100/150 hp, 3 Pole, 200 kA Short Circuit Current Rating, 1NO-1NC 1 Form A/1 Form B, DIN Rail Mount, Screw Terminal, -4 to 167 deg F

Manufacturer PN: CCP2-3-200CF

UPC:  05171269008

Kendall Electric Inc PN: 3888814

Invoice Description:

CCP2-3-200CF BUS FUSE


SPEC SHEET

▸ See All in Safety/Disconnect Switch Bases


How Can We Make This Page Better?

EATON Bussmann CUBEFuse™ CCP2-3-200CF Compact Fused Circuit Protector Disconnect Switch, 600 V AC/125 V DC, 200 A, 50/100/150 hp, 1NO-1NC 1 Form A/1 Form B Contact, 3 Poles

Log In for Pricing and Availability




Description

The revolutionary Bussmann™ series CCP with CUBEFuse™ is a fused branch circuit disconnect that requires up to 67% less space with ratings up to 600A. The CCP with CUBEFuse simplifies selective coordination and allows for isolation of individual branch circuit loads for safe work practices.
EATON Bussmann CUBEFuse™ Circuit Protector Disconnect Switch, Compact Fused, 600 V AC/125 V DC, 200 A, 50/100/150 hp, 3 Pole, 200 kA Short Circuit Current Rating, 1NO-1NC 1 Form A/1 Form B, DIN Rail Mount, Screw Terminal, -4 to 167 deg F

Specifications

 Amperage Rating 200 A
 Application For use with class CF cube fuses, electrical assemblies, panels and OEM's applications
 Brand Name Bussmann
 Contact Form 1NO-1NC 1 Form A/1 Form B
 Horsepower 50/100/150 hp
 Manufacturer Part Number CCP2-3-200CF
 Mounting Type DIN Rail
 Number of Poles 3
 PART NUMBER KEYWORDS CCP2-3-200CF; CCP23200CF ; 14584312 ; 051712690089 ; 51712690089 ; 05171269008 ; 00051712690089
 Short Circuit Current Rating 200 kA
 Standards/Approvals Not Applicable
 Temperature Rating -4 to 167 deg F
 Terminal Type Screw
 Type Compact Fused
 Video Links
 Voltage Rating 600 V AC/125 V DC

Features

▪ Footprint half the space required by traditional fusible switches saves valuable panel space
▪ Multi-wire lug kit with terminal shrouds reduces wire connection and control panel components by allowing for power distribution to multiple loads
▪ Built-in switch interlock prohibits removing the fuse under load
▪ Standard open fuse indication speeds troubleshooting
▪ 1/4 in lockout/tagout provision enhances safety
▪ Straight voltage rated for application flexibility
▪ 50 hp at 240 VAC, 100 hp at 480 VAC, 150 hp at 600 VAC horsepower rating

Resources

 Catalog Page
 Product Data Sheet
