Eaton

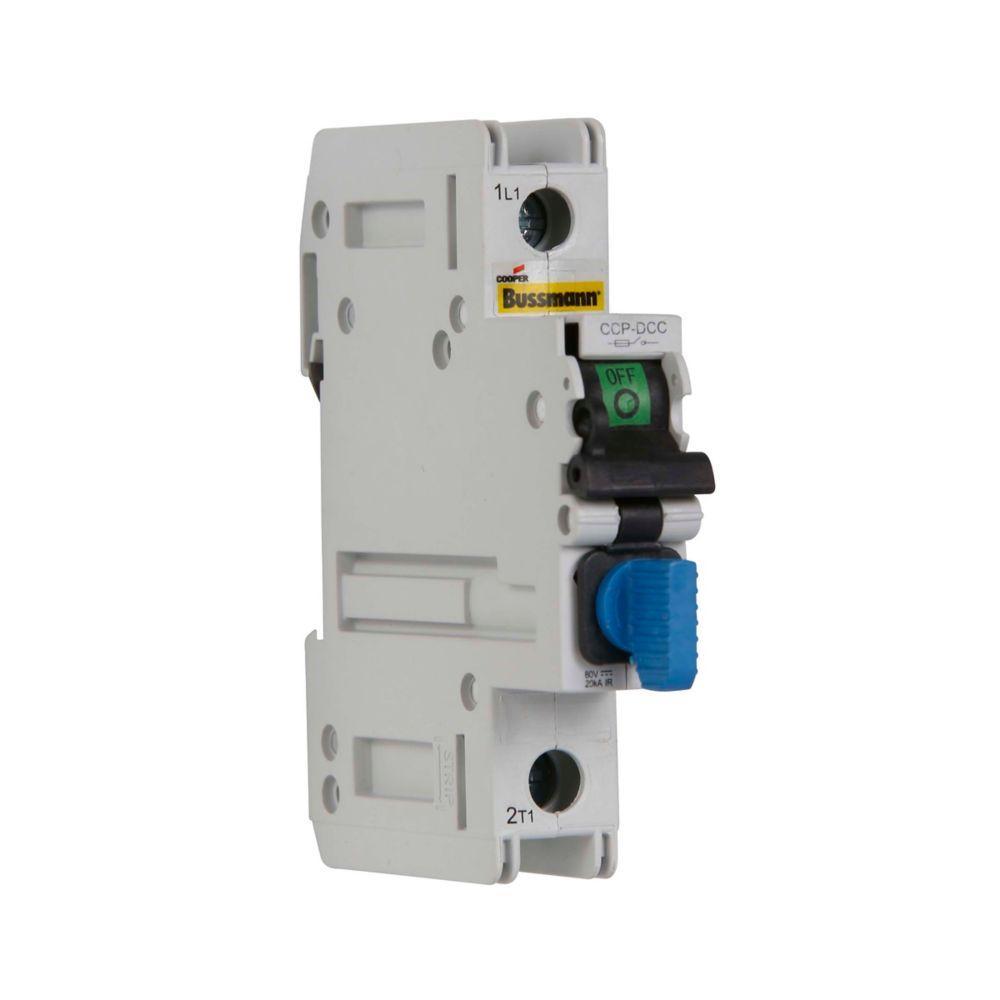

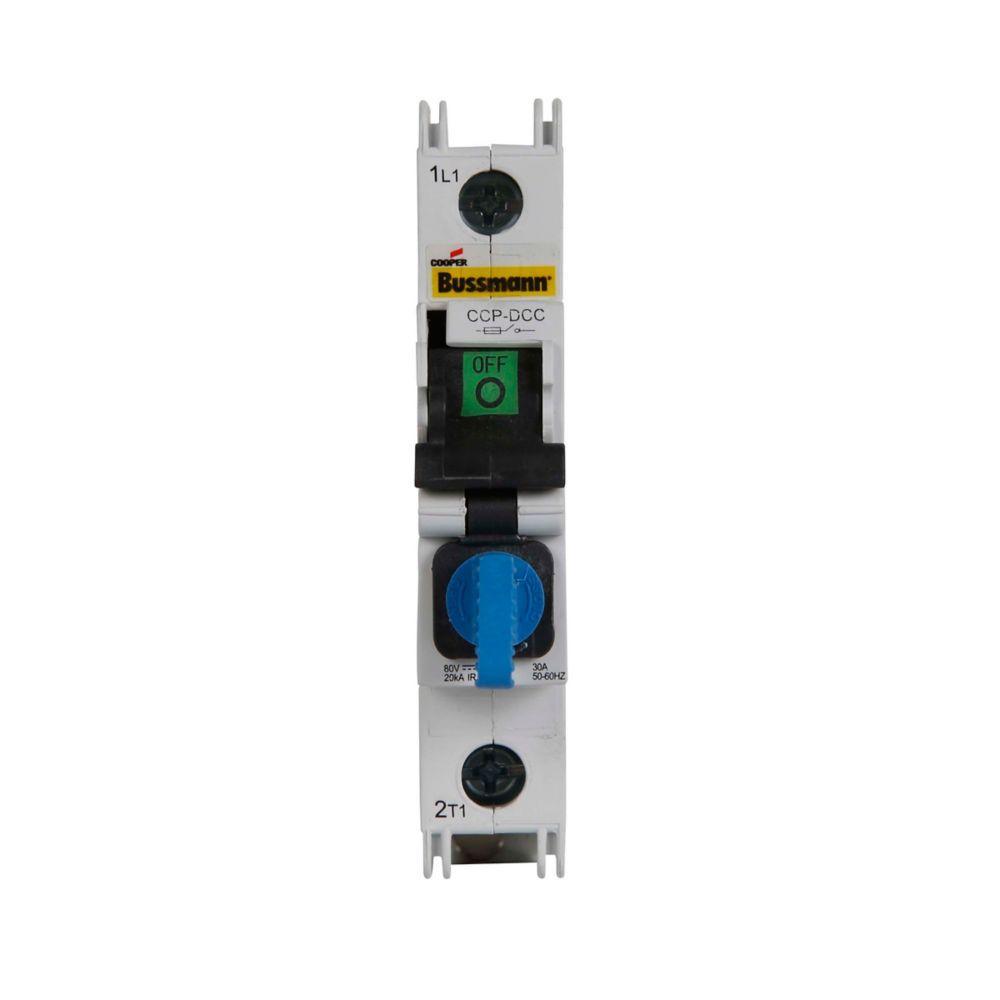

CCP-1-DCM BUS COMP CIRCUIT PROTECT SINGLE POLE 10X38MM DC MIDGET 05171215813 (6)

Mouse over image to zoom, click to enlarge

  • CCP-1-DCM BUS COMP CIRCUIT PROTECT SINGLE POLE 10X38MM DC MIDGET 05171215813 (6)
  • CCP-1-DCM BUS COMP CIRCUIT PROTECT SINGLE POLE 10X38MM DC MIDGET 05171215813 (6)
  • CCP-1-DCM BUS COMP CIRCUIT PROTECT SINGLE POLE 10X38MM DC MIDGET 05171215813 (6)

Description: Bussmann CUBEFuse® Compact Circuit Protector, Fusible Disconnect, Series: CCP, 600 VDAC/80 VDC, 30 A, 1 Pole, Midget Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 2.1 in Width, 3.7 in Height, 3.1 in Depth

Manufacturer PN: CCP-1-DCM

UPC:  05171215813

Kendall Electric Inc PN: 3508513

Invoice Description:

CCP-1-DCM BUS COMP CIRCUIT PROTECT SINGLE POLE 10X38MM DC MIDGET 05171215813 (6)


SPEC SHEET

▸ See All in Fusible Modules


How Can We Make This Page Better?

Bussmann CUBEFuse® CCP-1-DCM Fusible Disconnect Compact Circuit Protector, 600 VDAC/80 VDC, 30 A, 1 Pole, Midget Fuse, 18 to 6 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The revolutionary cooper Bussmann CCP is 1/3 the footprint of a molded case circuit breaker. the level of protection provided by the CCP is up to three times the short circuit current rating (SCCR) at full voltage than a molded case circuit breaker while providing disconnecting means.
Bussmann CUBEFuse® Compact Circuit Protector, Fusible Disconnect, Series: CCP, 600 VDAC/80 VDC, 30 A, 1 Pole, Midget Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 2.1 in Width, 3.7 in Height, 3.1 in Depth

Specifications

 Amperage Rating 30 A
 Application Branch Circuit Disconnect/Protection, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Depth 3.1 in
 Fuse Type Midget
 Height 3.7 in
 Manufacturer Part Number CCP-1-DCM
 Mounting Type DIN Rail
 Number of Poles 1
 Operating Temperature -20 to 75 deg C
 Operator Padlockable Handle
 PART NUMBER KEYWORDS CCP-1-DCM ; CCP1DCM ; 051712158138 ; 51712158138 ; 05171215813 ; 00051712158138
 Series CCP
 Standards/Approvals UL 508|98|cULus Listed|CSA C22.2|No. 14-05|CE Marked
 Type Fusible Disconnect
 Video Links
 Voltage Rating 600 VDAC/80 VDC
 Width 2.1 in

Features

▪ Box lug connection
▪ 35 mm DIN rail mounting
▪ Local fuse indication light
▪ Extremely compact design at 25.4 mm W per pole
▪ High short circuit current ratings up to 200 kA
▪ Disconnect rated to provide means for load isolation
▪ Full voltage rated 600 VAC or 80VDC
▪ Horsepower rated for protecting motor circuits with class CC units
▪ Open fuse indication local fuse indication lights are standard optional wired remote open fuse indication can be utilized to signal a PLC and open a contactor to de-energize all phases, if required
▪ IP20 finger safe construction with 10 AWG wire or larger
▪ Built-in switch interlock capability prohibits removing the fuse under load
▪ Padlockable handle for lockout tagout procedures
