Eaton

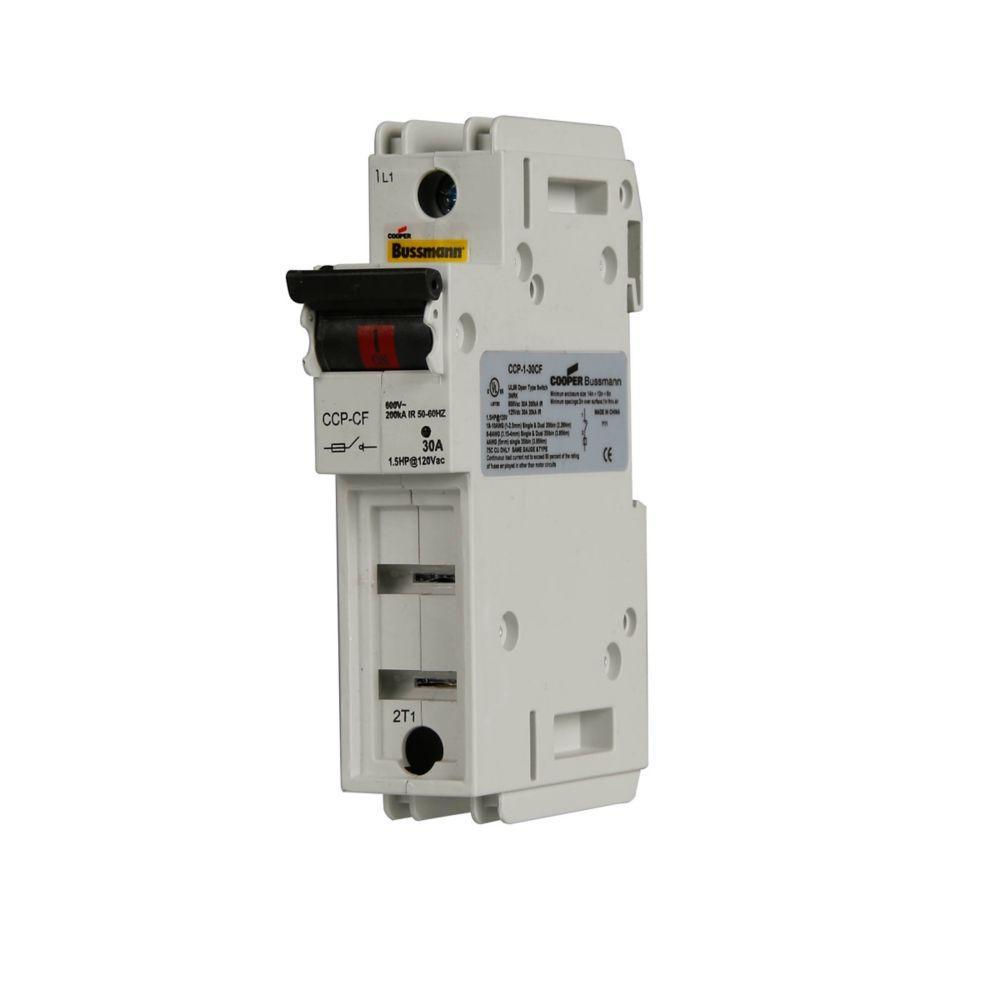

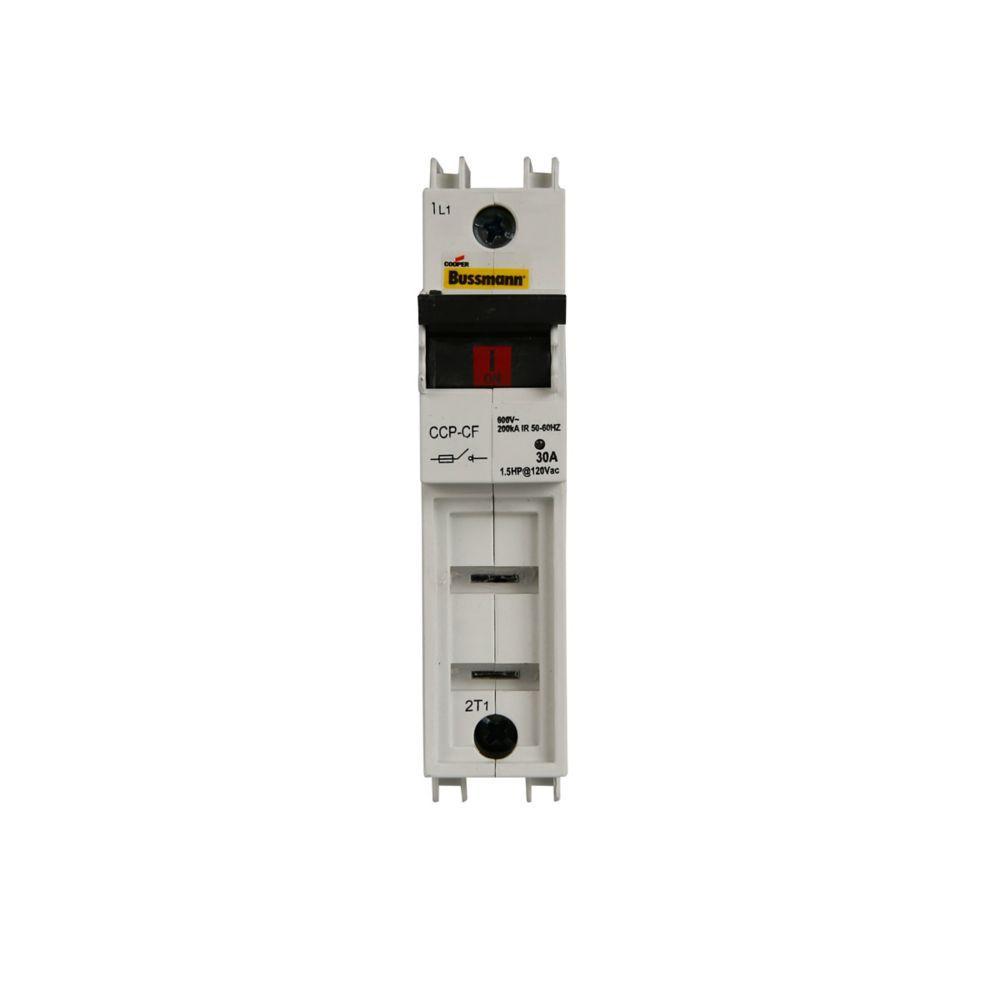

CCP-1-60CF BUS COMPACT CIRCUIT PROTECTOR 1 POLE60A CF (1)

Mouse over image to zoom, click to enlarge

  • CCP-1-60CF BUS COMPACT CIRCUIT PROTECTOR 1 POLE60A CF (1)
  • CCP-1-60CF BUS COMPACT CIRCUIT PROTECTOR 1 POLE60A CF (1)
  • CCP-1-60CF BUS COMPACT CIRCUIT PROTECTOR 1 POLE60A CF (1)

Description: Bussmann CUBEFuse® Compact Circuit Protector, Fusible Disconnect Non-Indicating, Series: CCP, 600 VAC/125 VDC, 60 A, 1 Pole, Class CF Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 3 in Width, 4-1/2 in Height, 3 in Depth

Manufacturer PN: CCP-1-60CF

UPC:  05171220149

Kendall Electric Inc PN: 2687952

Invoice Description:

CCP-1-60CF BUS COMPACT CIRCUIT PROTECTOR 1 POLE60A CF (1)


SPEC SHEET

How Can We Make This Page Better?

Bussmann CUBEFuse® CCP-1-60CF Fusible Disconnect Non-Indicating Compact Circuit Protector, 600 VAC/125 VDC, 60 A, 1 Pole, Class CF Fuse, 18 to 6 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The revolutionary Cooper Bussmann® CCP is 1/3 the footprint of a molded case circuit breaker. The level of protection provided by the CCP is up to three times the Short Circuit Current Rating (SCCR) at full voltage than a molded case circuit breaker while providing disconnecting means.
Bussmann CUBEFuse® Compact Circuit Protector, Fusible Disconnect Non-Indicating, Series: CCP, 600 VAC/125 VDC, 60 A, 1 Pole, Class CF Fuse, 18 to 6 AWG Wire, Solid/Stranded Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 3 in Width, 4-1/2 in Height, 3 in Depth

Specifications

 Amperage Rating 60 A
 Application Branch Circuit Disconnect and Protection Applications
 Brand Name Bussmann
 Depth 3 in
 Fuse Type Class CF
 Height 4-1/2 in
 Manufacturer Part Number CCP-1-60CF
 Mounting Type DIN Rail
 Number of Poles 1
 Operating Temperature -20 to 75 deg C
 Operator Padlockable Handle
 PART NUMBER KEYWORDS CCP-1-60CF ; CCP160CF ; 10512752 ; 051712201490 ; 51712201490 ; 05171220149 ; 00051712201490
 Series CCP
 Standards/Approvals UL 98|CSA C22.2|CE Certified
 Type Fusible Disconnect Non-Indicating
 Video Links
 Voltage Rating 600 V AC/125 V DC
 Width 3 in

Features

▪ High short circuit current ratings up to 200 kA
▪ 3 hp at 120 VAC rating

Resources

 Catalog Page
 Product Data Sheet
