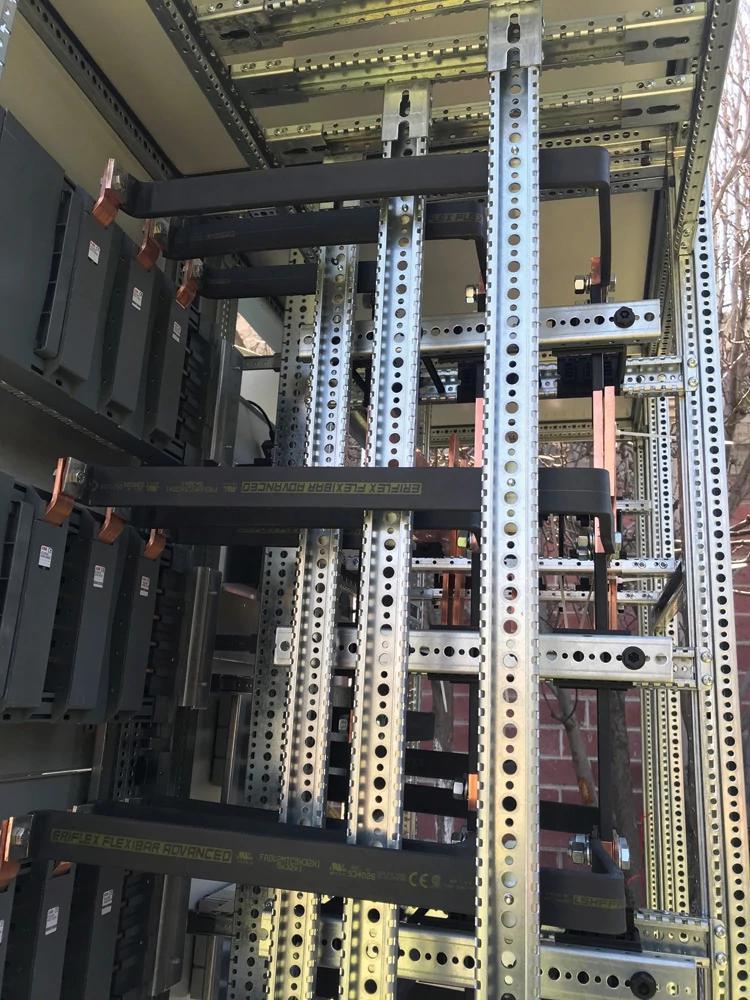

CADDY 534033 FLEXIBAR FADV2MTC5X40X1

Mouse over image to zoom, click to enlarge

  • CADDY 534033 FLEXIBAR FADV2MTC5X40X1
  • CADDY 534033 FLEXIBAR FADV2MTC5X40X1

Description: nVent ERIFLEX Insulated Flexible Busbar, 5-Layer Advanced Flexibar, Series: FADV, 1.575 in Bar Width, 2 m Bar Length, 0.039 in Bar Thickness, 1000 V AC/1500 V DC, 630 A, Copper/Thermoplastic Elastomer, Tin Plated

Manufacturer PN: 534033

UPC:  78285693765

Kendall Electric Inc PN: 4426980

Invoice Description:

CADDY 534033 FLEXIBAR FADV2MTC5X40X1


SPEC SHEET

How Can We Make This Page Better?

nVent ERIFLEX FADV2MTC5X40X1 FADV 5-Layer Advanced Flexibar Insulated Flexible Busbar, 2 m L x 1.575 in W, 1000 V AC/1500 V DC, Copper/Thermoplastic Elastomer

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

After extensive research, nVent ERIFLEX is proud to establish a new gold standard in terms of insulation for flexible busbar called nVent ERIFLEX Flexibar Advanced. The new product is low smoke, halogen-free and flame retardant all while maintaining the level of flexibility and reliability that our partners have come to expect from nVent ERIFLEX Flexibar.
nVent ERIFLEX Insulated Flexible Busbar, 5-Layer Advanced Flexibar, Series: FADV, 1.575 in Bar Width, 2 m Bar Length, 0.039 in Bar Thickness, 1000 V AC/1500 V DC, 630 A, Copper/Thermoplastic Elastomer, Tin Plated

Specifications

 Amperage Rating 630 A
 Application Data Centers, Rail, Hospitals, Schools, Submarines, Switchboards and Other Enclosed Environments Applications
 Bar Length 2 m
 Bar Thickness 0.039 in
 Bar Width 1.575 in
 Brand Name nVent ERIFLEX
 Finish Tin Plated
 Manufacturer Part Number FADV2MTC5X40X1
 Material Copper/Thermoplastic Elastomer
 PART NUMBER KEYWORDS FADV2MTC5X40X1 ; 14855547 ; 534033 ; 782856937654 ; 78285693765 ; 0782856937654 ; 00782856937654
 Series FADV
 Standards/Approvals RoHS Compliant|cULus Recognized|Bureau Veritas 02859|ABS Certified|CE Certified|UL 65|UL 758|UL (IEC) AVLV2 File No. E316390|CSA File No. 70173298|CSA File No. 90005|EAC 02941|IEC 60695-2-11|IEC 61439-1|IEC 60695-2-12 CC11418|IEC 61439-1 Class II|ISO 5659-2 CC11518|NF EN 45545|UL 94 V-0 Flammability Rating
 Type 5-Layer Advanced Flexibar
 Video Links
 Voltage Rating 1000 V AC/1500 V DC

Features

▪ Thin layers of tinned electrolytic copper formed into a stack
▪ Insulated by high-resistance, halogen free, flame retardant and low smoke material with less than 20 Percent contact with conductor for high flexibility
▪ Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
▪ Dramatically smaller and more flexible than comparable cable based on ampacity
▪ Better power density than cable with lower skin effect ratio
▪ Connections made by punching and bolting directly through the copper laminates or clamping onto the end of the nVent ERIFLEX Flexibar
▪ No lugs needed, reducing installation time and improving resistance to vibration
▪ Weight savings and material savings compared to wire alternatives
▪ Reduces total installation cost
