Eaton

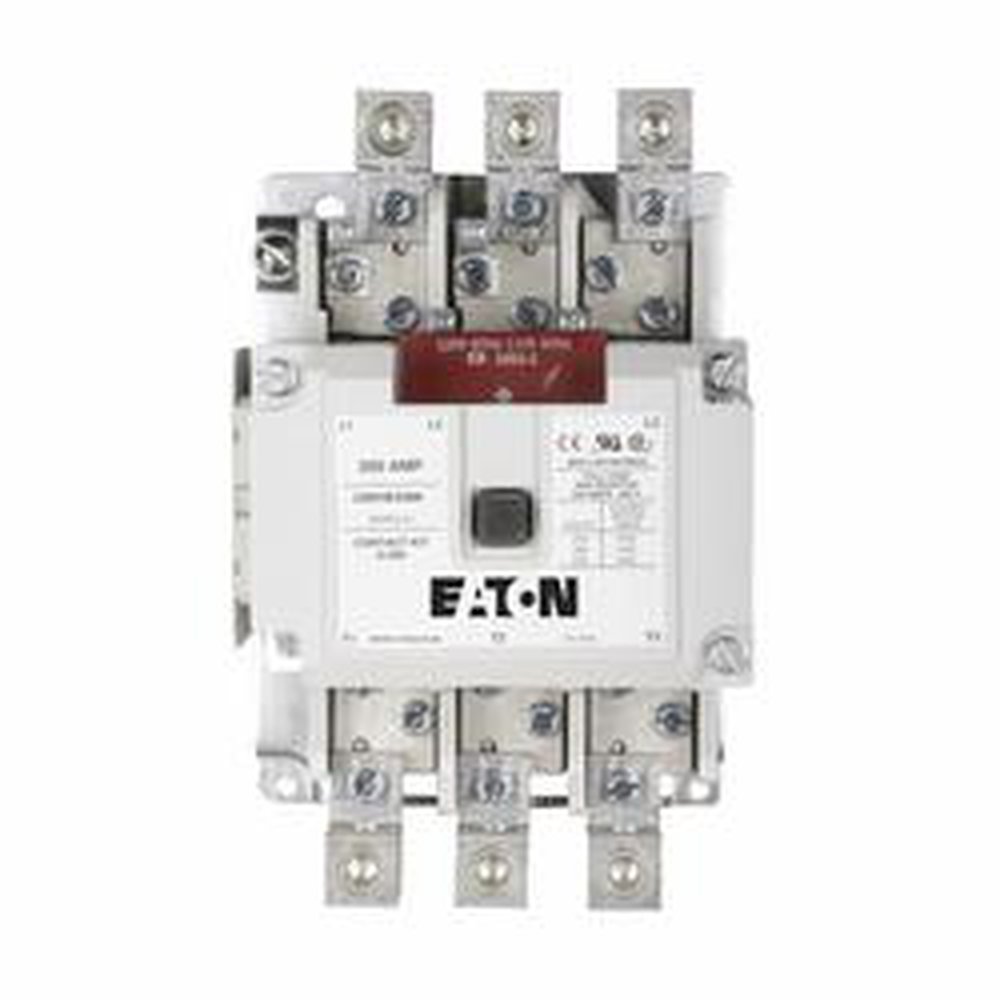

C25LNE3360AC CH DP CONT 360A 3P OPN 120V W/1NO-NC AUX

Mouse over image to zoom, click to enlarge

  • C25LNE3360AC CH DP CONT 360A 3P OPN 120V W/1NO-NC AUX
  • C25LNE3360AC CH DP CONT 360A 3P OPN 120V W/1NO-NC AUX
  • C25LNE3360AC CH DP CONT 360A 3P OPN 120V W/1NO-NC AUX

Description: EATON Definite Purpose Contactor, L-Frame Non-Reversing, 110 to 120 V AC Coil, 360 A Inductive/Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, 1NO-1NC Contact Configuration, 2 Auxiliary Contacts, Quick-Connect Connection, Box Lug Terminal, Open Enclosure, 300000 cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 7.78 in L x 7.05 in W x 13.12 in H Dimensions

Manufacturer PN: C25LNE3360AC

UPC:  78211418174

Kendall Electric Inc PN: 3705393

Invoice Description:

C25LNE3360AC CH DP CONT 360A 3P OPN 120V W/1NO-NC AUX


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

EATON C25LNE3360AC L-Frame Non-Reversing Definite Purpose Contactor With Metal Mounting Plate, 110 to 120 V AC V Coil, 360 A Inductive/Resistive, 1NO-1NC Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.
EATON Definite Purpose Contactor, L-Frame Non-Reversing, 110 to 120 V AC Coil, 360 A Inductive/Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, 1NO-1NC Contact Configuration, 2 Auxiliary Contacts, Quick-Connect Connection, Box Lug Terminal, Open Enclosure, 300000 cycles Operating Cycles, 150 deg F Operating, Surface Mounting, 7.78 in L x 7.05 in W x 13.12 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and Eoem, Electrical Assemblies, Panels and Eoems Applications
 Brand Name EATON
 Coil Voltage 110 to 120 V AC
 Connection Type Quick-Connect
 Contact Configuration 1NO-1NC
 Contact Type Double Break
 Dimensions 7.78 in L x 7.05 in W x 13.12 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number C25LNE3360AC
 Maximum Load Current 360 A Inductive/Resistive
 Mounting Type Surface
 Number of Auxiliary Contacts 2
 Number of Poles 3
 Operating Cycles 300000 cycles
 Operating Temperature 150 deg F
 PART NUMBER KEYWORDS C25LNE3360AC ; 7385326 ; 782114181744 ; 78211418174 ; 00782114181744
 Standards/Approvals CSA Certified,UL Recognized,RoHS Compliant
 Terminal Type Box Lug
 Type L-Frame Non-Reversing

Features

▪ The universal mounting plate eliminates changing hole patterns when replacing competitive devices
▪ Variety of terminal styles allows product to meet all specific application needs
▪ Snap-on accessories require no tool for hassle-free installation
▪ Quick coil changing ability allows for easy maintenance
▪ Non-position sensitive mounting allows for fast, convenient setup
▪ Shrouded or fingerproof terminals to reduce possibility of electrical shock
▪ 360 A frame
▪ Open with metal mounting plate

Resources

 Catalog
 Catalog Page
 Product Data Sheet
