Eaton

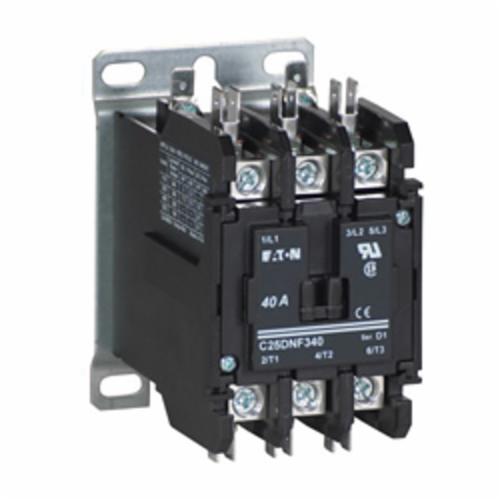

C25DNF340B CH OPEN N-R 3P 40A DP CONT BOX LUGS W/QC TERM 240VAC COIL

Mouse over image to zoom, click to enlarge

  • C25DNF340B CH OPEN N-R 3P 40A DP CONT BOX LUGS W/QC TERM 240VAC COIL
  • C25DNF340B CH OPEN N-R 3P 40A DP CONT BOX LUGS W/QC TERM 240VAC COIL
  • C25DNF340B CH OPEN N-R 3P 40A DP CONT BOX LUGS W/QC TERM 240VAC COIL

Description: EATON Definite Purpose AC Contactor, Non-Reversing, 208 to 240 V AC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, Quick-Connect (Side by Side) Connection, Box Lug (Posi Drive Setscrew) Terminal, Open Enclosure, 150 deg F Ambient Operating, 3.35 in L x 2.4 in W x 3.75 in H Dimensions

Manufacturer PN: C25DNF340B

UPC:  78211630068

Kendall Electric Inc PN: 2150054

Invoice Description:

C25DNF340B CH OPEN N-R 3P 40A DP CONT BOX LUGS W/QC TERM 240VAC COIL


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

EATON C25DNF340B Non-Reversing Definite Purpose AC Contactor, 208 to 240 V AC V Coil, 40 A Inductive/50 A Resistive, 3 Poles

Log In for Pricing and Availability




Description

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.
EATON Definite Purpose AC Contactor, Non-Reversing, 208 to 240 V AC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, Quick-Connect (Side by Side) Connection, Box Lug (Posi Drive Setscrew) Terminal, Open Enclosure, 150 deg F Ambient Operating, 3.35 in L x 2.4 in W x 3.75 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Coil Voltage 208 to 240 V AC
 Connection Type Quick-Connect (Side by Side)
 Contact Type Double Break
 Dimensions 3.35 in L x 2.4 in W x 3.75 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number C25DNF340B
 Maximum Load Current 40 A Inductive/50 A Resistive
 Number of Poles 3
 Operating Temperature 150 deg F Ambient
 PART NUMBER KEYWORDS C25DNF340B ; 7406327 ; 782116300686 ; 78211630068 ; 00782116300686
 Standards/Approvals UL Recognized,CSA Certified,RoHS Compliant
 Terminal Type Box Lug (Posidrive Setscrew)
 Type Non-Reversing

Features

▪ Open with metal mounting plate
