Eaton

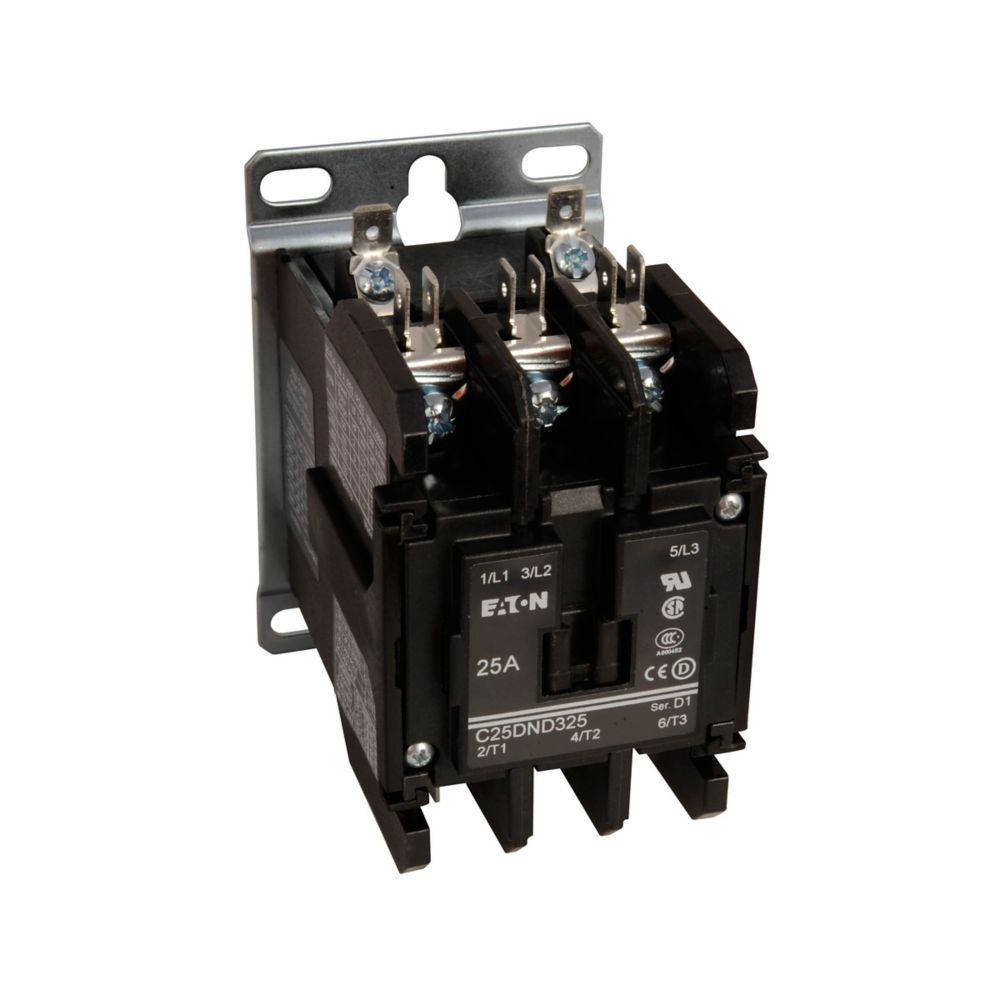

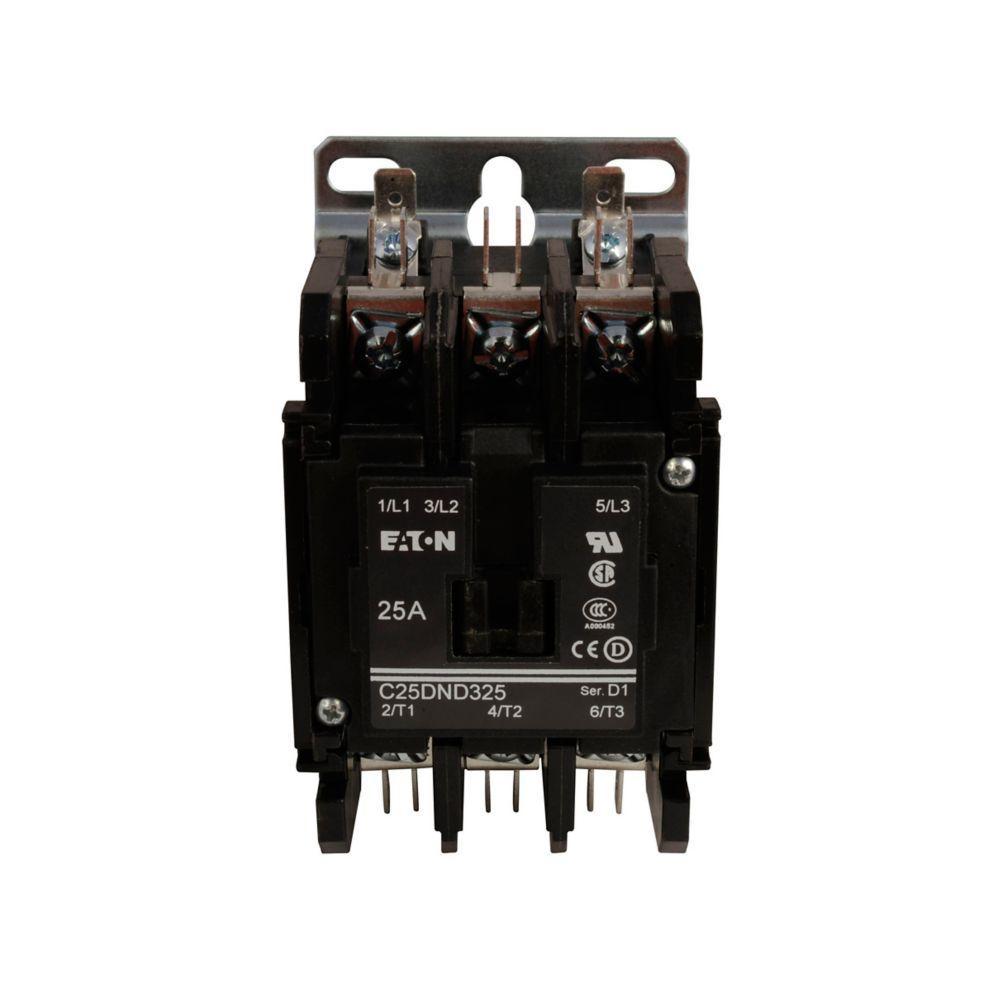

C25DND330H CH OPEN N-R 3P 30A DP CONT SCR/PP W/QC TERM 277VAC COIL

Mouse over image to zoom, click to enlarge

Description: EATON Definite Purpose Control Contactor, Non-Reversing, 277 V AC at 60 Hz Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 3 Pole, Quick-Connect (Side by Side) Connection, Pressure Plate/Screw Terminal, Open Enclosure, 3.35 in L x 2.4 in W x 3.75 in H Dimensions

Manufacturer PN: C25DND330H

Kendall Electric Inc PN: 4371799

Invoice Description:

C25DND330H CH OPEN N-R 3P 30A DP CONT SCR/PP W/QC TERM 277VAC COIL

SPEC SHEET

▸ See All in Definite Purpose Contactors AC

How Can We Make This Page Better?

EATON C25DND330H Non-Reversing Definite Purpose Control Contactor With Metal Mounting Plate, 277 V AC at 60 Hz V Coil, 30 A Inductive/40 A Resistive, 3 Poles

Note: Lead times are estimates only

Description Specifications Features Resources

Description

EATON offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications, EATON DP contactors are designed to handle the most challenging installations.

EATON Definite Purpose Control Contactor, Non-Reversing, 277 V AC at 60 Hz Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 3 Pole, Quick-Connect (Side by Side) Connection, Pressure Plate/Screw Terminal, Open Enclosure, 3.35 in L x 2.4 in W x 3.75 in H Dimensions

Specifications

Application	For motor and power control equipment
Brand Name	EATON
Coil Voltage	277 V AC at 60 Hz
Connection Type	Quick-Connect (Side by Side)
Dimensions	3.35 in L x 2.4 in W x 3.75 in H
Enclosure	Open
Manufacturer Part Number	C25DND330H
Maximum Load Current	30 A Inductive/40 A Resistive
Number of Poles	3
Standards/Approvals	CSA Certified,UL Recognized,RoHS Compliant
Terminal Type	Pressure Plate/Screw
Type	Non-Reversing
