Eaton
C25BNF240A CH COMPACT 2P 40A CONT BOX LUG TERM QUAD QC 120VAC COIL

Mouse over image to zoom, click to enlarge

  • C25BNF240A CH COMPACT 2P 40A CONT BOX LUG TERM QUAD QC 120VAC COIL
  • C25BNF240A CH COMPACT 2P 40A CONT BOX LUG TERM QUAD QC 120VAC COIL
  • C25BNF240A CH COMPACT 2P 40A CONT BOX LUG TERM QUAD QC 120VAC COIL

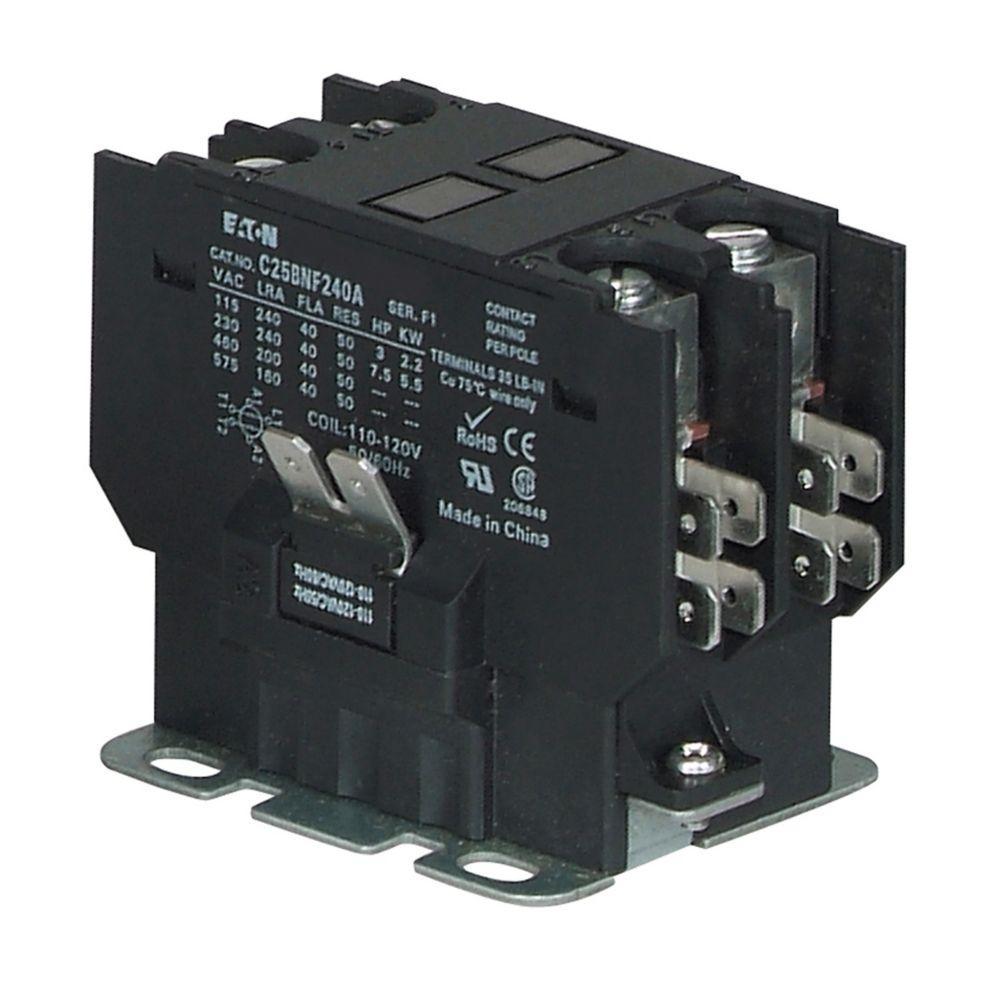

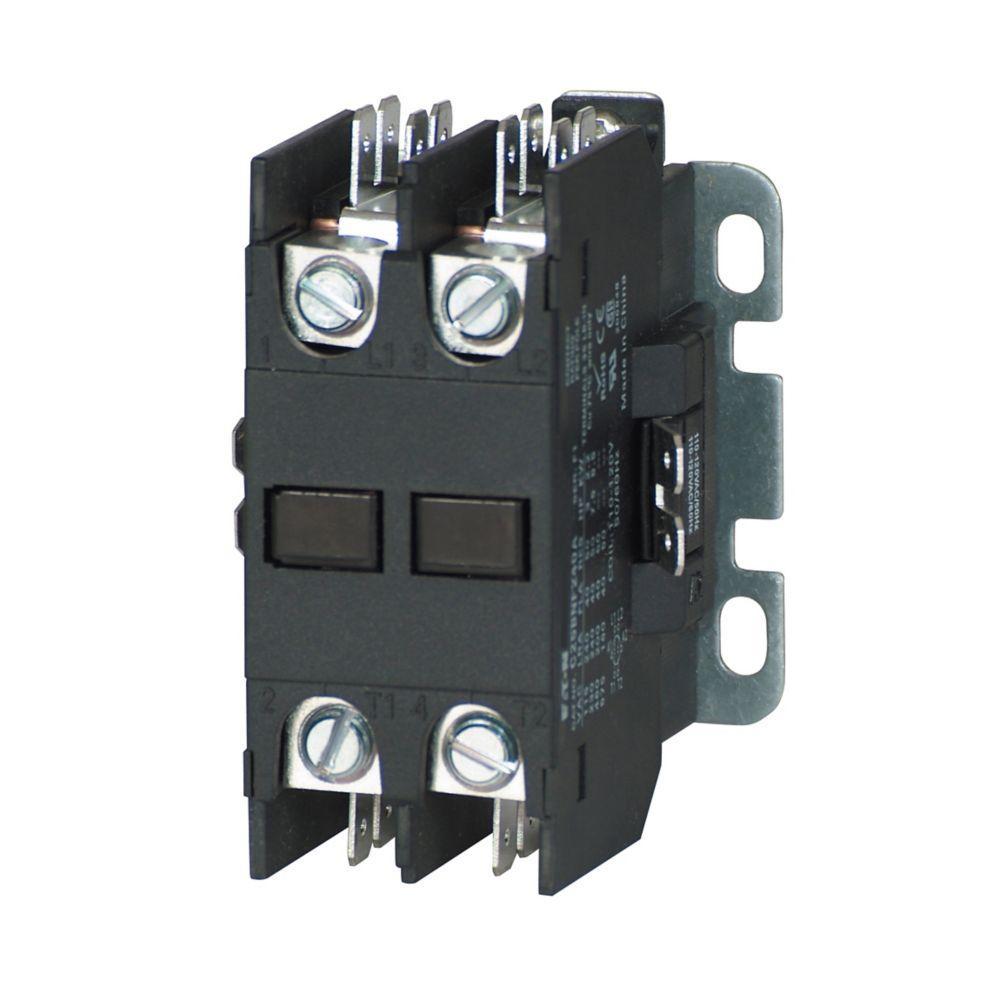

Description: EATON Definite Purpose Control Contactor, Non-Reversing, 110 to 120 V AC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz, Quick-Joint, Box Lugs/Quick-Connect Terminal, Open with Metal Mounting Plate, 3.19 in L x 2.32 in W x 1.97 in H

Manufacturer PN: C25BNF240A

UPC:  78668511615

Kendall Electric Inc PN: 2642521

Invoice Description:

C25BNF240A CH COMPACT 2P 40A CONT BOX LUG TERM QUAD QC 120VAC COIL


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

EATON C25BNF240A Non-Reversing Definite Purpose Control Contactor, 110 to 120 V AC V Coil, 40 A Inductive/50 A Resistive, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications. Eaton DP contactors are designed to handle the most challenging installations.
EATON Definite Purpose Control Contactor, Non-Reversing, 110 to 120 V AC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz, Quick-Joint, Box Lugs/Quick-Connect Terminal, Open with Metal Mounting Plate, 3.19 in L x 2.32 in W x 1.97 in H

Specifications

 Application Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 110 to 120 V AC
 Connection Type Quick-Joint
 Dimensions 3.19 in L x 2.32 in W x 1.97 in H
 Enclosure Open with Metal Mounting Plate
 Frequency Rating 50/60 Hz
 Manufacturer Part Number C25BNF240A
 Maximum Load Current 40 A Inductive/50 A Resistive
 Number of Poles 2
 PART NUMBER KEYWORDS C25BNF240A ; 9851023 ; 786685116150 ; 78668511615 ; 00786685116150
 Standards/Approvals CSA Certified,UL Recognized,RoHS Compliant
 Terminal Type Box Lugs/Quick-Connect
 Type Non-Reversing

Features

▪ Completely encased design impervious to dust and other environmental elements
▪ 1, 2, 3 and 4-pole configurations
▪ Open components and enclosed designs
▪ Compact frame
