Eaton

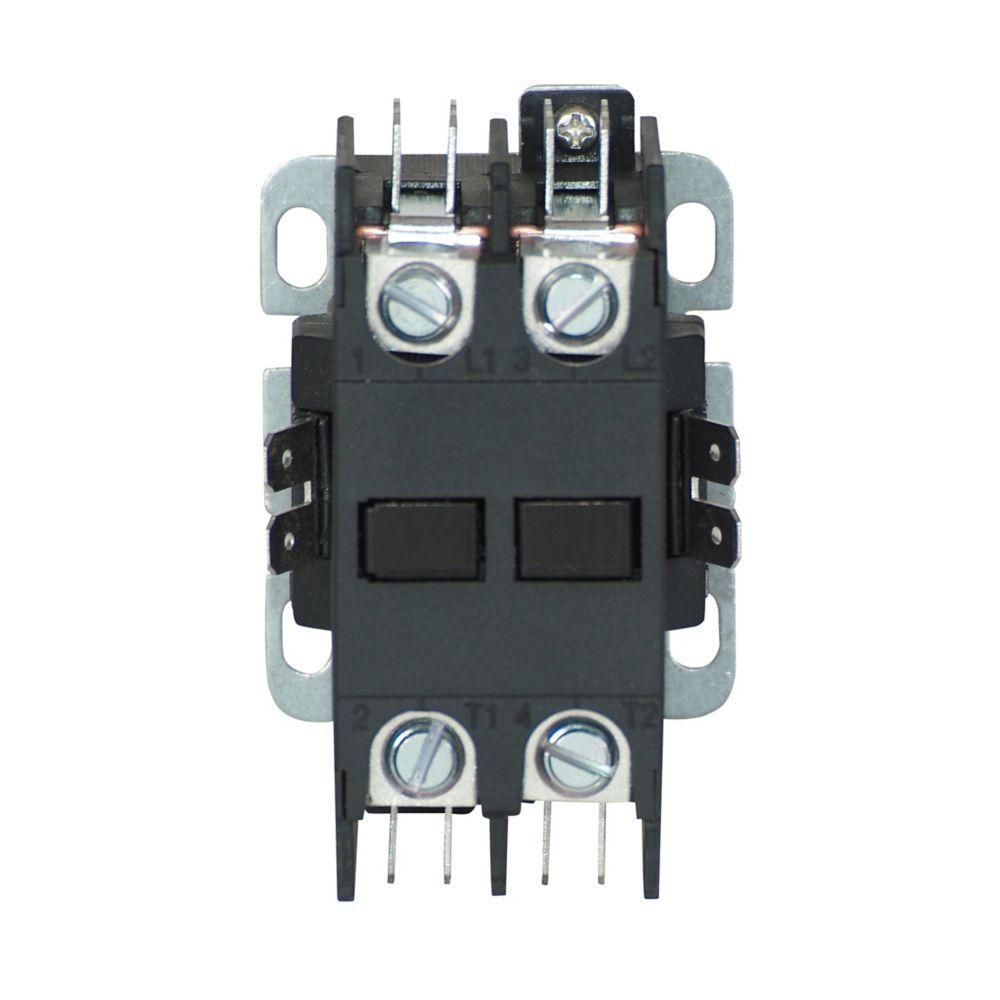

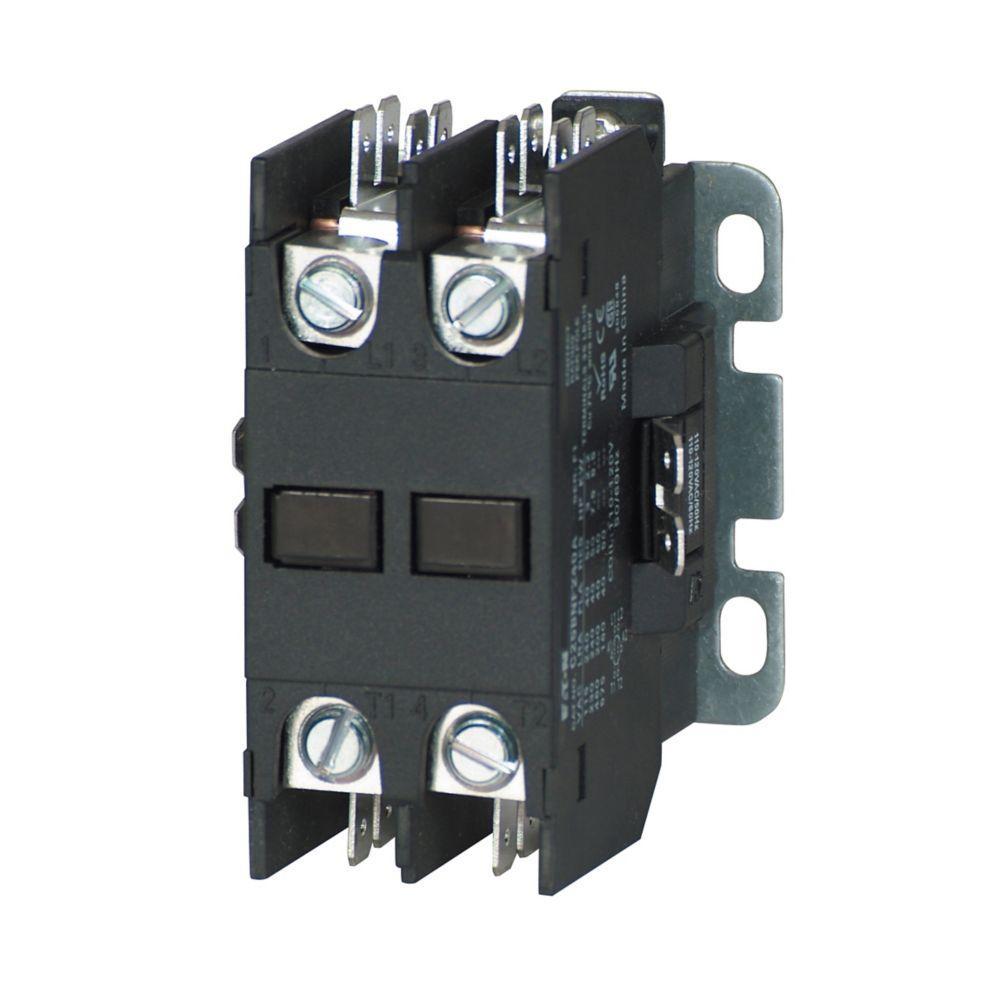

C25BNF230B CH COMPACT 2P 30A CONT BOX LUG TERM QUAD QC 240VAC COIL

Mouse over image to zoom, click to enlarge

  • C25BNF230B CH COMPACT 2P 30A CONT BOX LUG TERM QUAD QC 240VAC COIL
  • C25BNF230B CH COMPACT 2P 30A CONT BOX LUG TERM QUAD QC 240VAC COIL
  • C25BNF230B CH COMPACT 2P 30A CONT BOX LUG TERM QUAD QC 240VAC COIL

Description: EATON Definite Purpose Control Contactor, Compact Non-Reversing, 208/240 V AC Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz Frequency, Double Break Contact, Box Lug/Quick-Connect Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions

Manufacturer PN: C25BNF230B

UPC:  78668511613

Kendall Electric Inc PN: 2895998

Invoice Description:

C25BNF230B CH COMPACT 2P 30A CONT BOX LUG TERM QUAD QC 240VAC COIL


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

EATON C25BNF230B Compact Non-Reversing Definite Purpose Control Contactor, 208/240 V AC V Coil, 30 A Inductive/40 A Resistive, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.
EATON Definite Purpose Control Contactor, Compact Non-Reversing, 208/240 V AC Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz Frequency, Double Break Contact, Box Lug/Quick-Connect Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions

Specifications

 Application Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 208/240 V AC
 Contact Type Double Break
 Dimensions 3.19 in L x 2.32 in W x 1.97 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number C25BNF230B
 Maximum Load Current 30 A Inductive/40 A Resistive
 Mounting Type Surface
 Number of Poles 2
 Operating Temperature -13 to 158 deg F
 PART NUMBER KEYWORDS C25BNF230B ; 9851021 ; 786685116136 ; 78668511613 ; 00786685116136
 Standards/Approvals UL Recognized,CSA Certified,RoHS Compliant
 Terminal Type Box Lug/Quick-Connect
 Type Compact Non-Reversing

Features

▪ The universal mounting plate eliminates changing hole patterns when replacing competitive devices
▪ Variety of terminal styles allows product to meet all specific application needs
▪ Snap-on accessories require no tools for hassle-free installation
▪ Quick coil changing ability allows for easy maintenance
▪ Non-position sensitive mounting allows for fast, convenient set up
▪ Shrouded or fingerproof terminals reduce possibility of electrical shock
▪ Open with metal mounting plate
