Eaton

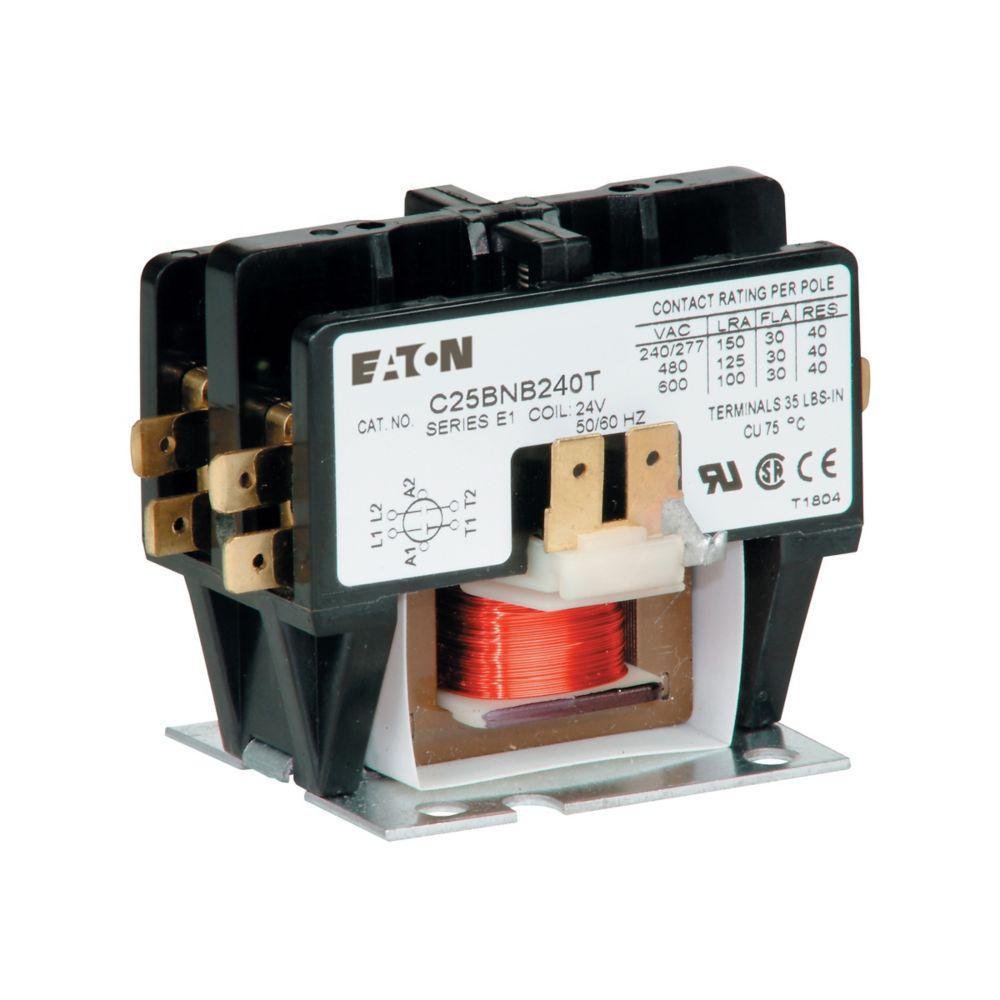

C25BNB240T CH COMPACT 2P 40A CONT SCR TERM QUAD QC 24VAC COIL

Mouse over image to zoom, click to enlarge

Description: EATON Definite Purpose Contactor, Compact, 24 V AC Coil, 40/50 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, Double Break/Non-Reversing Contact, Quick-Connect Connection, Binding Head Screw Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions

Manufacturer PN: C25BNB240T

UPC:  78668511610

Kendall Electric Inc PN: 2195654

Invoice Description:

C25BNB240T CH COMPACT 2P 40A CONT SCR TERM QUAD QC 24VAC COIL


SPEC SHEET

How Can We Make This Page Better?

EATON C25BNB240T Compact Definite Purpose Contactor With Metal Mounting Plate, 24 V AC V Coil, 40/50 A, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.
EATON Definite Purpose Contactor, Compact, 24 V AC Coil, 40/50 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, Double Break/Non-Reversing Contact, Quick-Connect Connection, Binding Head Screw Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels, OEMs, Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor, Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 24 V AC
 Connection Type Quick-Connect
 Contact Type Double Break/Non-Reversing
 Dimensions 3.19 in L x 2.32 in W x 1.97 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number C25BNB240T
 Maximum Load Current 40/50 A
 Mounting Type Surface
 Number of Poles 2
 Operating Temperature -13 to 158 deg F
 PART NUMBER KEYWORDS C25BNB240T ; 9851018 ; 786685116105 ; 78668511610 ; 00786685116105
 Standards/Approvals RoHS Compliant|UL File No. E1491|UL Guide No. NLDX2/NLDX8|CSA C22.2 File No. 14-05|CSA File No. 238083|CSA Class 3211-84|IEC 60947-4-1|EN 60947-4-1|ARI 780/790|CE Certified|UL Recognized
 Terminal Type Binding Head Screw
 Type Compact

Features

▪ The universal mounting plate eliminates changing hole patterns when replacing competitive devices
▪ Variety of terminal styles allows product to meet all specific application needs
▪ Snap-on accessories require no tools for hassle-free installation
▪ Quick coil changing ability allows for easy maintenance
▪ Non-position sensitive mounting allows for fast, convenient setup
▪ Shrouded or fingerproof terminals to reduce possibility of electrical shock
▪ Open with metal mounting plate
▪ 40 A Inductive/50 a resistive
