Eaton
C22S-WS-MS1-K20 CH 2-POS MOM KEY SEL SWTCH BLK-BZL WD-0 2NO

Mouse over image to zoom, click to enlarge

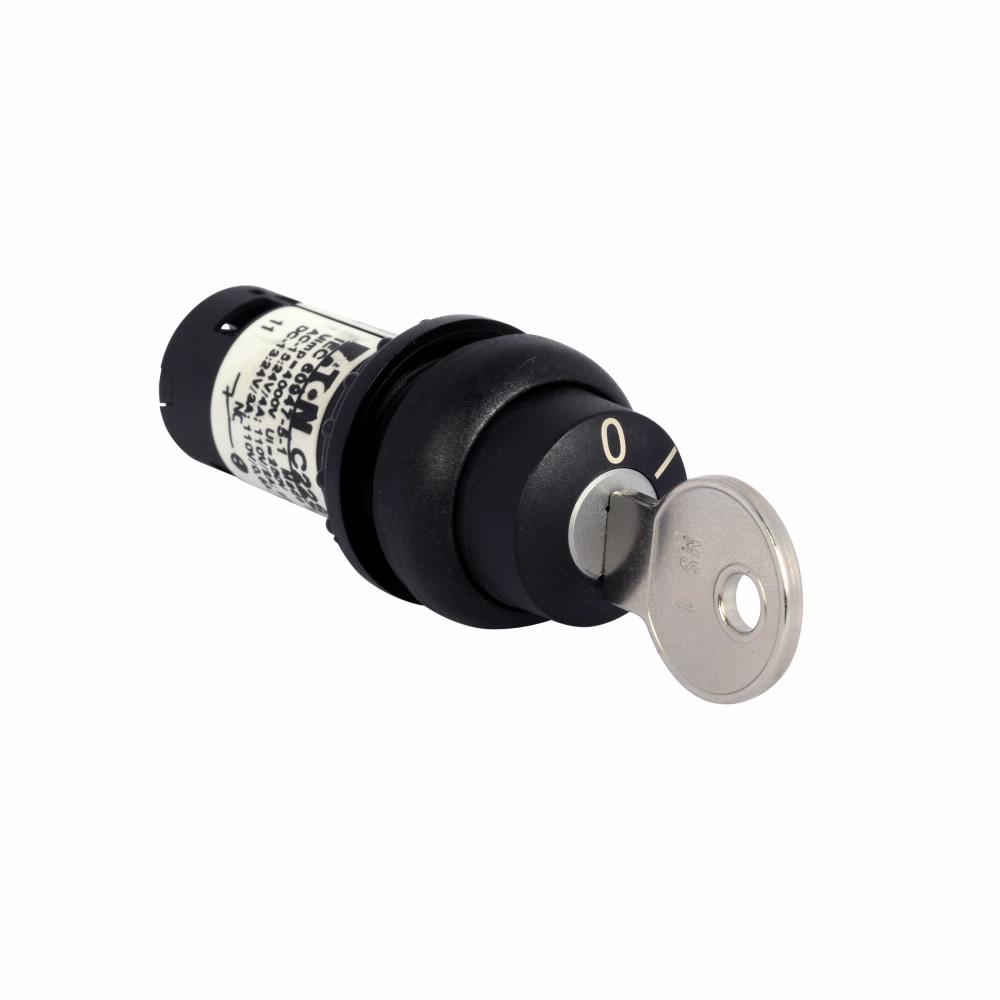

  • C22S-WS-MS1-K20 CH 2-POS MOM KEY SEL SWTCH BLK-BZL WD-0 2NO

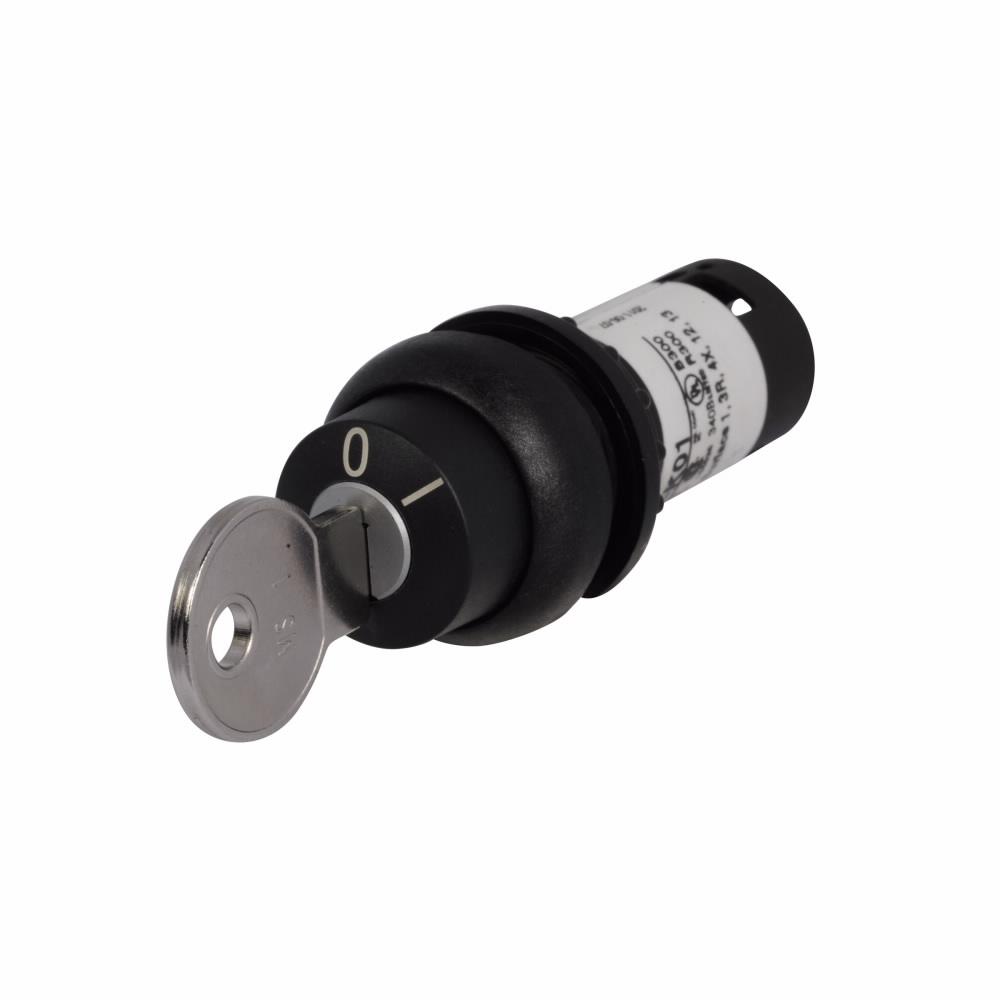

  • C22S-WS-MS1-K20 CH 2-POS MOM KEY SEL SWTCH BLK-BZL WD-0 2NO
  • C22S-WS-MS1-K20 CH 2-POS MOM KEY SEL SWTCH BLK-BZL WD-0 2NO

Description: EATON Non-Illuminated Selector Switch, Compact Heavy Duty, Series: C22, 22.5 mm, 2NO, Momentary Contact Mode, 2 Positions, 40 deg Throw, Bezel/Housing: Black Nylon Bezel, Keyed, Screw Terminal, NEMA 4X/13/IP65, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature

Manufacturer PN: C22S-WS-MS1-K20

UPC:  01508129754

Kendall Electric Inc PN: 4396497

Invoice Description:

C22S-WS-MS1-K20 CH 2-POS MOM KEY SEL SWTCH BLK-BZL WD-0 2NO


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON C22S-WS-MS1-K20 C22 Compact Heavy Duty Non-Illuminated Selector Switch, 22.5 mm, 2NO Contact, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON C22 compact pushbutton line offers an industry leading array of functional, attractive and ergonomically designed all-in-one illuminated and non-illuminated pushbuttons, selector switches, emergency stops and indicating lights. The complete illuminated line is only offered in LED light units to ensure high quality brightness and up to 100000 hr of LED illumination. C22 operators are available with either a silver or black bezel and share the exact same front of the panel look and feel as EATON M22 line. The C22 compact, all-in-one design with the contact block(s) and operators integral provides the user with a simple solution. The 2017 product extension C22 with pigtail has more than doubled the portfolio. The C22 with pigtail now allows customers the ability to directly mount the product without the need for pushbutton enclosures. With three different connection methods and multiple lengths, the C22 with pigtail can be used for a wide range of applications.
EATON Non-Illuminated Selector Switch, Compact Heavy Duty, Series: C22, 22.5 mm, 2NO, Momentary Contact Mode, 2 Positions, 40 deg Throw, Bezel/Housing: Black Nylon Bezel, Keyed, Screw Terminal, NEMA 4X/13/IP65, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature

Specifications

 Actuator Keyed
 Bezel Housing Black Nylon Bezel
 Brand Name EATON
 Color Black
 Contact Configuration 2NO
 Enclosure NEMA 4X/13/IP65
 Environmental Conditions -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature
 Manufacturer Part Number C22S-WS-MS1-K20
 Number of Positions 2
 Series C22
 Size 22.5 mm
 Standards/Approvals CSA Certified|UL Listed|EN 60947|IEC 60947|DIN VDE 0600|CE Marked|Bureau Veritas Certified|Lloyd's Register Certified|GL Certified|CCC Marked|PCT Certified
 Terminal Type Screw
 Throw 40 deg
 Type Compact Heavy Duty
 Video Links

Features

▪ Selector switch (non-keyed) rated for 1 million mechanical operations
▪ Momentary selector switches are field convertible from momentary to maintained
▪ Rear pigtails provide IP65 front and rear ratings, eliminating enclosure requirements and reducing installation times
