Eaton

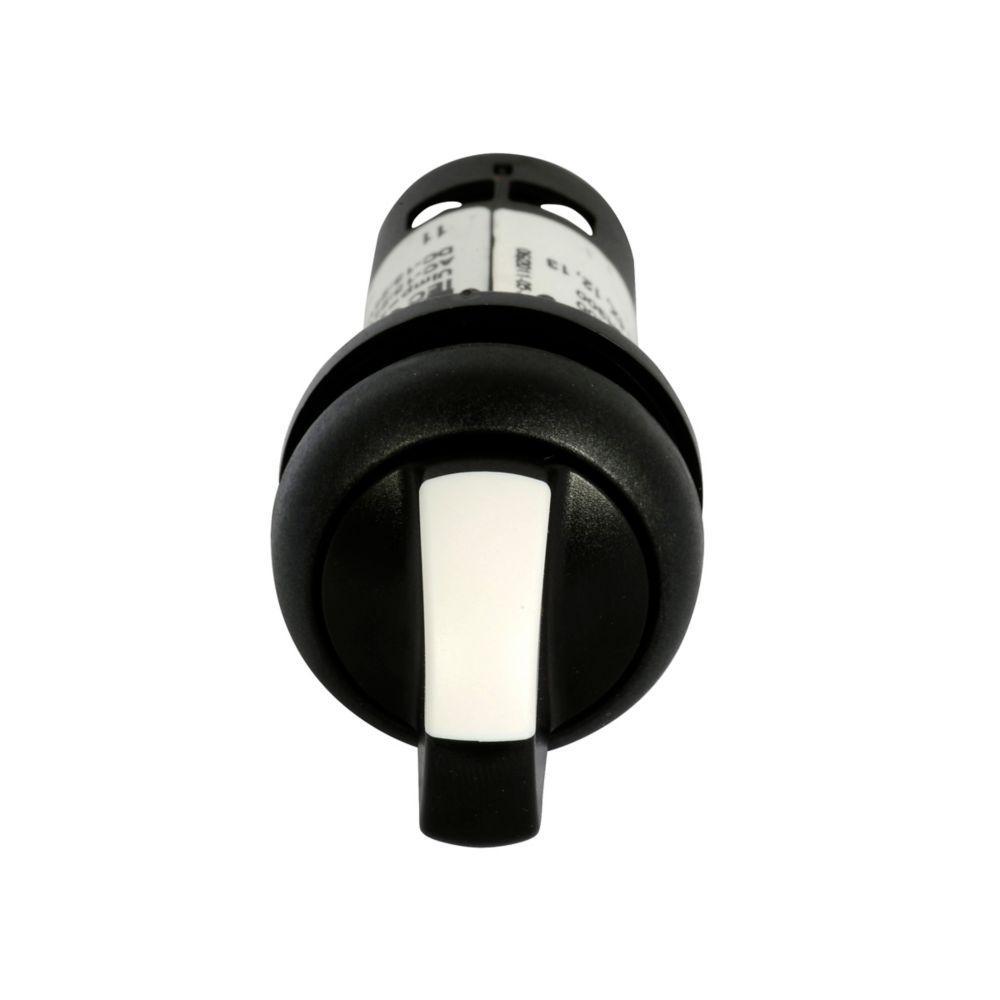

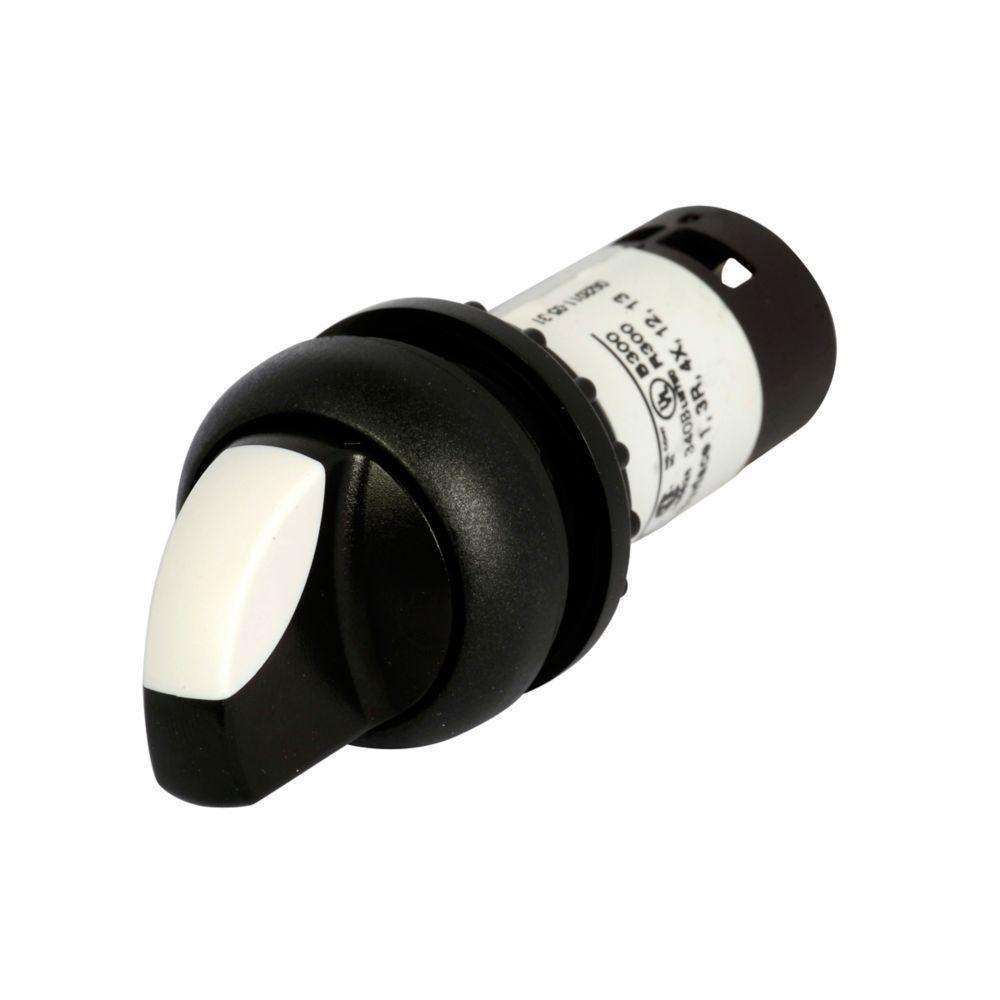

C22S-WRKV-K11 CH COMPACT SELECTOR SWITCH 22MM BLACK VCAM 2POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 1NO 1NC

Mouse over image to zoom, click to enlarge

  • C22S-WRKV-K11 CH COMPACT SELECTOR SWITCH 22MM BLACK VCAM 2POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 1NO 1NC
  • C22S-WRKV-K11 CH COMPACT SELECTOR SWITCH 22MM BLACK VCAM 2POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 1NO 1NC
  • C22S-WRKV-K11 CH COMPACT SELECTOR SWITCH 22MM BLACK VCAM 2POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 1NO 1NC

Description: EATON Non-Illuminated Selector Switch, Compact Heavy Duty, Series: C22, 22.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 2 Positions, 60 deg Throw, Bezel/Housing: Black Nylon Bezel, Knob Actuator, Screw Terminal, NEMA 4X/13/IP65 Enclosure, Black/White, Environmental Conditions: -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature

Manufacturer PN: C22S-WRKV-K11

UPC:  01508119419

Kendall Electric Inc PN: 2931973

Invoice Description:

C22S-WRKV-K11 CH COMPACT SELECTOR SWITCH 22MM BLACK VCAM 2POSITION NON-ILLUMINATED MAINTAINED BLACK BEZEL 1NO 1NC


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON C22S-WRKV-K11 Compact Heavy Duty Non-Illuminated Selector Switch, 22.5 mm, 1NO-1NC Contact, Black/White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON C22 compact pushbutton line offers an industry leading array of functional, attractive and ergonomically designed all-in-one illuminated and non-illuminated pushbuttons, selector switches, emergency stops and indicating lights. The complete illuminated line is only offered in LED light units to ensure high quality brightness and up to 100000 hr of LED illumination. C22 operators are available with either a silver or black bezel and share the exact same front of the panel look and feel as EATON M22 line. The C22 compact, all-in-one design with the contact block(s) and operators integral provides the user with a simple solution. The 2017 product extension C22 with pigtail has more than doubled the portfolio. The C22 with pigtail now allows customers the ability to directly mount the product without the need for pushbutton enclosures. With three different connection methods and multiple lengths, the C22 with pigtail can be used for a wide range of applications.
EATON Non-Illuminated Selector Switch, Compact Heavy Duty, Series: C22, 22.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 2 Positions, 60 deg Throw, Bezel/Housing: Black Nylon Bezel, Knob Actuator, Screw Terminal, NEMA 4X/13/IP65 Enclosure, Black/White, Environmental Conditions: -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature

Specifications

 Actuator Knob
 Bezel Housing Black Nylon Bezel
 Brand Name EATON
 Color Black/White
 Contact Configuration 1NO-1NC
 Enclosure NEMA 4X/13/IP65
 Environmental Conditions -25 to 70 deg C Operating Temperature, -30 to 80 deg C Storage Temperature
 Manufacturer Part Number C22S-WRKV-K11
 Number of Positions 2
 Series C22
 Size 22.5 mm
 Standards/Approvals UL Listed,IEC 60947,EN 60947,CSA Certified,DIN VDE 0600
 Terminal Type Screw
 Throw 60 deg
 Type Compact Heavy Duty
 Video Links

Features

▪ Selector switch (non-keyed) rated for 1 million mechanical operations
▪ Momentary selector switches are field convertible from momentary to maintained
▪ Rear pigtails provide IP65 front and rear ratings, eliminating enclosure requirements and reducing installation times
▪ Maintained pushbuttons can be converted in the field to momentary operation by switching the locking ring, which is accessible through the side of the operator body
