C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480

Mouse over image to zoom, click to enlarge

  • C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480
  • C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480
  • C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480
  • C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480

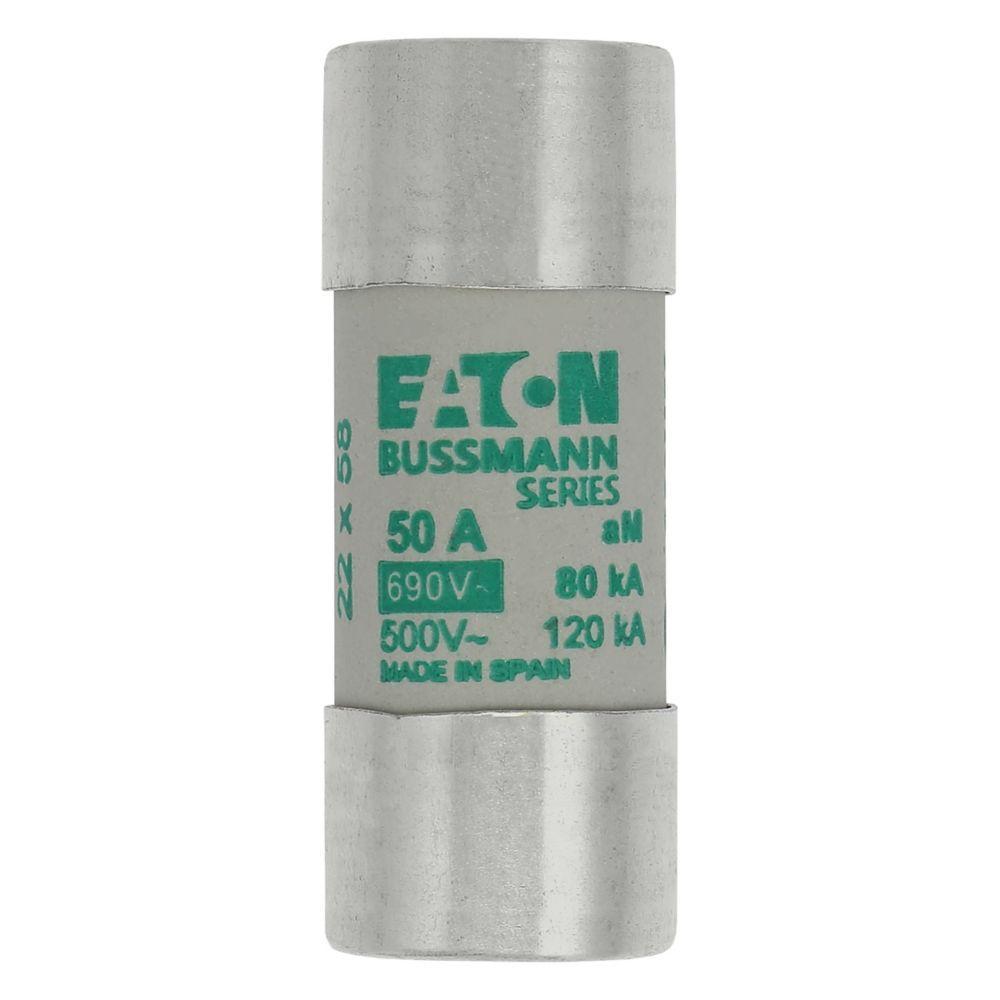

Description: Bussmann Fuse, Cylindrical Low Voltage, Non-Indicating, 50 A, 690 V, 80 kA Interrupt, Class: aM, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Ceramic, 22 mm Dia x 58 mm L Body

Manufacturer PN: C22M50

UPC:  05171275480

Kendall Electric Inc PN: 3590104

Invoice Description:

C22M50 BUSSMANN CYLINDRICAL FUSE 22 X 58 50A AM 690V AC 05171275480


SPEC SHEET

▸ See All in Specialty Fuses


How Can We Make This Page Better?

Bussmann C22M50 Cylindrical Low Voltage Fuse, 50 A, 690 V, 80 kA Interrupt, Class: aM, Cylindrical Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applications. gG cylindrical fuses are for general protection against overloads and short circuit. aM cylindrical fuses protect against short circuits in motors, transformers and any applications which typically see high inrush currents. Available in three sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and complemented by a full range of modular fuse holders.
Bussmann Fuse, Cylindrical Low Voltage, Non-Indicating, 50 A, 690 V, 80 kA Interrupt, Class: aM, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Ceramic, 22 mm Dia x 58 mm L Body

Specifications

 Amperage Rating 50 A
 Application Power Distribution and Control, Electrical Assemblies, Panels and EOEMs, Panel Builders, Industrial Facilities and Factories Facility, Control Panels for Machines, Aftermarket, Stationary Machine Equipment In Factory - Robotics, Industrial Applications
 Body Size 22 mm Dia x 58 mm L
 Body Type Cylindrical
 Brand Name Bussmann
 Class aM
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number C22M50
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS C22M50 ; 7642478 ; 051712754804 ; 51712754804 ; 05171275480 ; 00051712754804 ; 5027590495868
 Standards/Approvals CE Marking|GoST-R Compliant|IEC 60269|RoHS Compliant|VDE Certified
 Terminal Type Ferrule End
 Type Cylindrical Low Voltage
 Video Links
 Voltage Rating 690 V

Features

▪ Compact design
▪ Tool-free installation
▪ Low temperature rise
▪ Compatible with Eaton Bussmann® series modular fuse holders
