Eaton

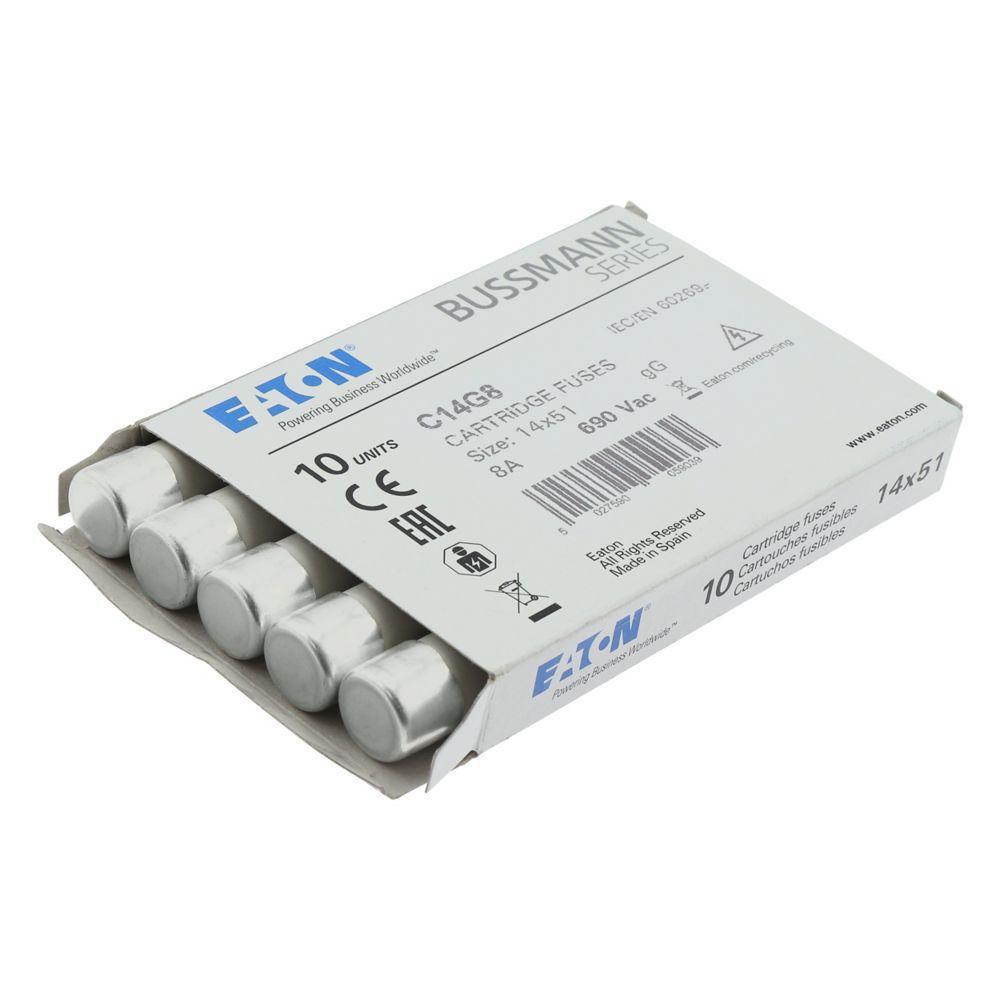

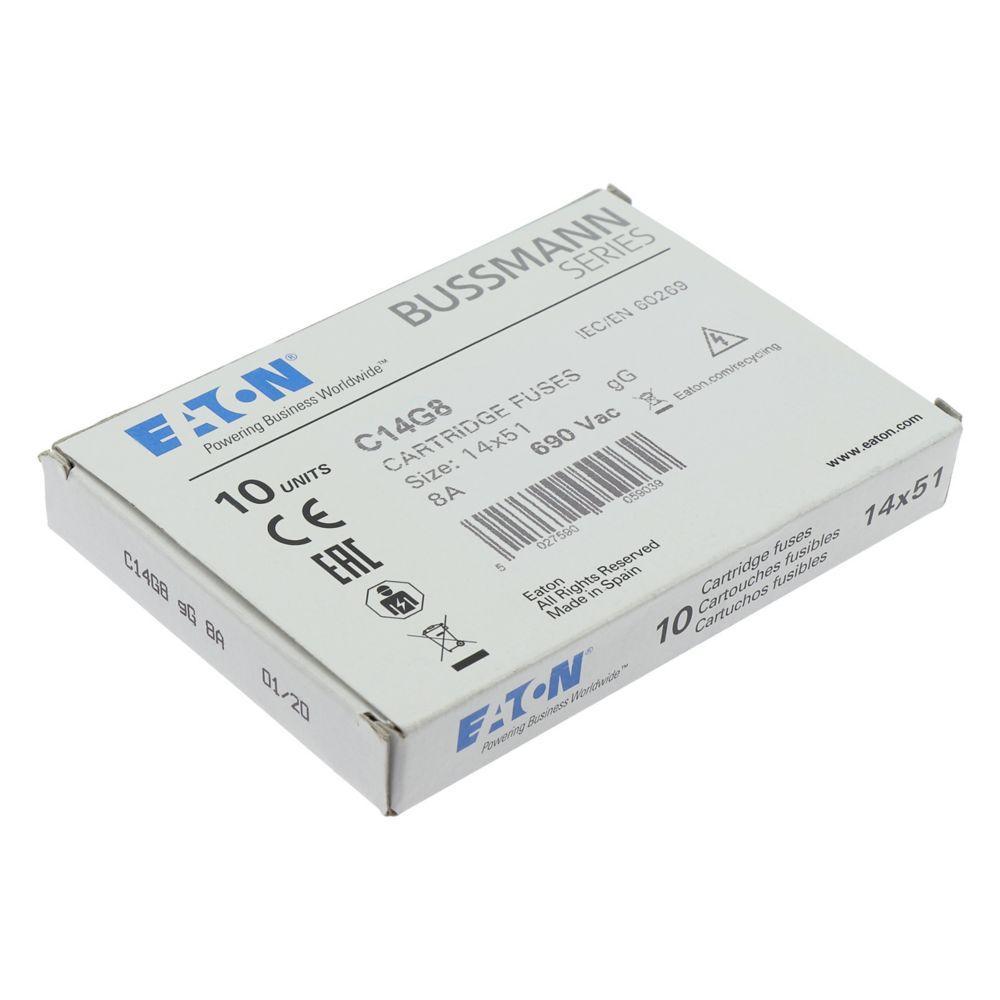

C14G8 BUSSMANN AC CYLINDRICAL FUSE 14X51 8AMP CG 690V

Mouse over image to zoom, click to enlarge

  • C14G8 BUSSMANN AC CYLINDRICAL FUSE 14X51 8AMP CG 690V
  • C14G8 BUSSMANN AC CYLINDRICAL FUSE 14X51 8AMP CG 690V
  • C14G8 BUSSMANN AC CYLINDRICAL FUSE 14X51 8AMP CG 690V

Description: Bussmann Fuse, Cylindrical Low Voltage Time Delay, Non-Indicating, 8 A, 690 V, 50 A Interrupt, Class: GL/GG/C, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Silver Plated Copper, 14 mm Dia x 51 mm L Body

Manufacturer PN: C14G8

UPC:  05171258991

Kendall Electric Inc PN: 4529057

Invoice Description:

C14G8 BUSSMANN AC CYLINDRICAL FUSE 14X51 8AMP CG 690V


SPEC SHEET

▸ See All in Specialty Fuses


How Can We Make This Page Better?

Bussmann C14G8 Cylindrical Low Voltage Time Delay Fuse, 8 A, 690 V, 50 A Interrupt, Class: GL/GG/C, Cylindrical Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applications. gG cylindrical fuses are for general protection against overloads and short circuit. aM cylindrical fuses protect against short circuits in motors, transformers and any applications which typically see high inrush currents. Available in three sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and complemented by a full range of modular fuse holders.
Bussmann Fuse, Cylindrical Low Voltage Time Delay, Non-Indicating, 8 A, 690 V, 50 A Interrupt, Class: GL/GG/C, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Silver Plated Copper, 14 mm Dia x 51 mm L Body

Specifications

 Amperage Rating 8 A
 Application Power Distribution and Control, Electrical Assemblies, Panels and EOEMs, Panel Builders, Industrial Facilities and Factories Facility, Control Panels for Machines, Aftermarket, Ceramic body, Stationary Machine Equipment In Factory - Robotics, General Purpose and Industrial Applications
 Body Size 14 mm Dia x 51 mm L
 Body Type Cylindrical
 Brand Name Bussmann
 Class GL/GG/C
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number C14G8
 Material Silver Plated Copper
 Mounting Type Holder
 PART NUMBER KEYWORDS C14G8 ; 7626003 ; 051712589918 ; 51712589918 ; 05171258991 ; 00051712589918 ; 5027590494182
 Standards/Approvals IEC 60269,CE Marked,RoHS Compliant,GoST-R
 Terminal Type Ferrule End
 Type Cylindrical Low Voltage Time Delay
 Video Links
 Voltage Rating 690 V

Features

▪ Compact design
▪ Tool-free installation
▪ Low temperature rise
▪ Compatible with Eaton Bussmann® series modular fuse holders
