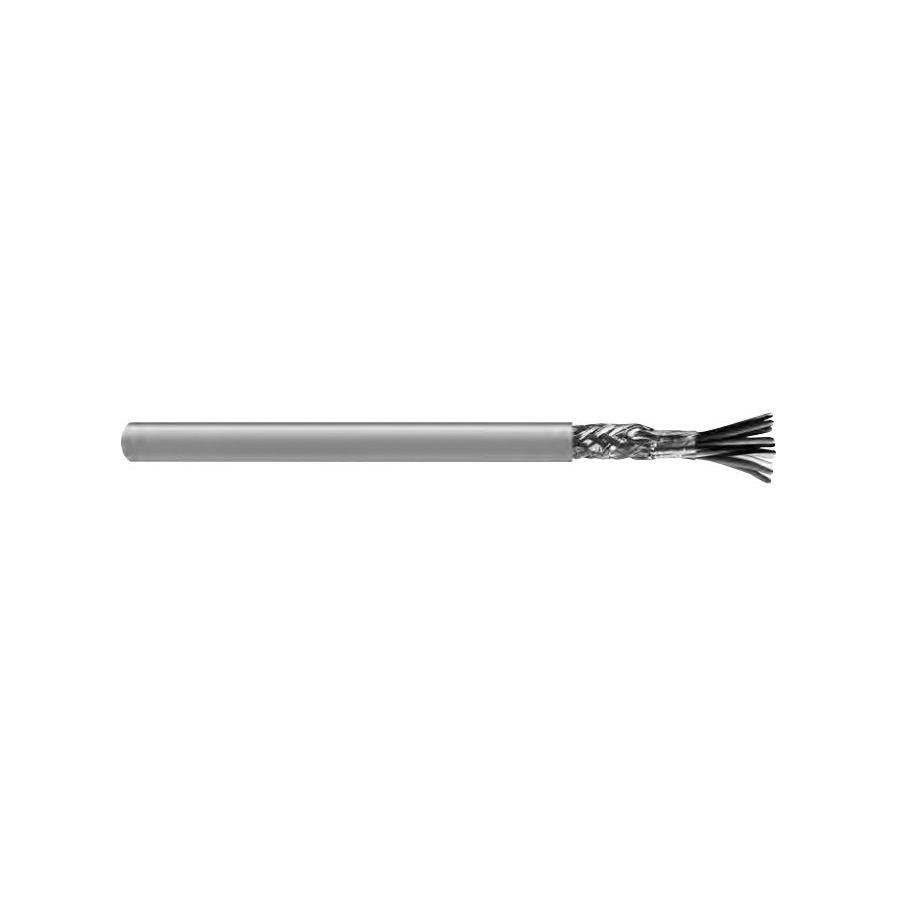

C0972A.18.10 GEN CABLE 4C/22 7/30TC FL/BRD SH CM, 500' SPOOL

Mouse over image to zoom, click to enlarge

  • C0972A.18.10 GEN CABLE 4C/22 7/30TC FL/BRD SH CM, 500' SPOOL
  • C0972A.18.10 GEN CABLE 4C/22 7/30TC FL/BRD SH CM, 500' SPOOL

Description: Carol® Computer Cable, Type CMR/CMG Foil/Braid Shielded Multi-Conductor, Spool Packaging, 300 V AC, 4 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.212 in OD, 500 ft Length, 7/30 Strands, 16.6/4.4 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, -20 to 80 deg C

Manufacturer PN: C0972A.18.10

UPC:  07940704752

Kendall Electric Inc PN: 3712818

Invoice Description:

C0972A.18.10 GEN CABLE 4C/22 7/30TC FL/BRD SH CM, 500' SPOOL


SPEC SHEET

▸ See All in Computer Cables


How Can We Make This Page Better?

Carol® C0972A.18.10 Type CMR/CMG Foil/Braid Shielded Multi-Conductor Computer Cable, Spool Packaging, 300 V AC, (4) 22 AWG Fully Annealed Stranded Tinned Copper Conductor, 500 ft L

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

General Cable's complete line of Carol® brand paired and unpaired, shielded computer cables are used primarily for the internal or external interconnection of electronic equipment and computers. Applications include data transmission, CAD/CAM, telemetering, data displays, computer print-out, credit verification systems and similar applications. We also offer a variety of put-ups for computer cables to meet your individual requirements. Carol® brand computer cables are manufactured to meet the latest UL, CSA, NEC and RoHS requirements and approvals.
Carol® Computer Cable, Type CMR/CMG Foil/Braid Shielded Multi-Conductor, Spool Packaging, 300 V AC, 4 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.212 in OD, 500 ft Length, 7/30 Strands, 16.6/4.4 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, -20 to 80 deg C

Specifications

 Application Computers, Industrial Equipment, Data Transmission, Control Circuits and EIA RS-232 Applications
 Brand Name General Cable®
 Conductor Size 22 AWG
 Conductor Type Fully Annealed Stranded Tinned Copper
 Insulation Material PVC
 Jacket Color Gray
 Jacket Material PVC
 Length 500 ft
 Manufacturer Part Number C0972A.18.10
 Number of Conductors 4
 Resistance 16.6/4.4 Ohm
 Standards/Approvals RoHS Compliant|NEC Article 800 Type CMR|UL 2464|UL 70000 BTU Vertical Tray Flame Test|CSA CMG Flame Test
 Strands 7/30
 Temperature Rating -20 to 80 deg C
 Type Type CMR/CMG Foil/Braid Shielded Multi-Conductor
 Voltage Rating 300 V AC

Features

▪ Premium grade, color coded S-R PVC insulation
▪ 36 pF/ft capacitance between conductors, 66 pF/ft capacitance between one conductor and other conductors connected to shield
▪ Superior shielding where noise rejection is critical
▪ Assists system designers in meeting FCC docket 20780 demands
▪ Braid shield provides good flexibility
▪ Suitable for EIA RS-232 applications
▪ 100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out shield
▪ 16.6 conductor/4.4 shield Ohm/kft
