Eaton
C0750E2AFB CH .75KVA 230/480V-120

Mouse over image to zoom, click to enlarge

  • C0750E2AFB CH .75KVA 230/480V-120
  • C0750E2AFB CH .75KVA 230/480V-120
  • C0750E2AFB CH .75KVA 230/480V-120
  • C0750E2AFB CH .75KVA 230/480V-120
  • C0750E2AFB CH .75KVA 230/480V-120

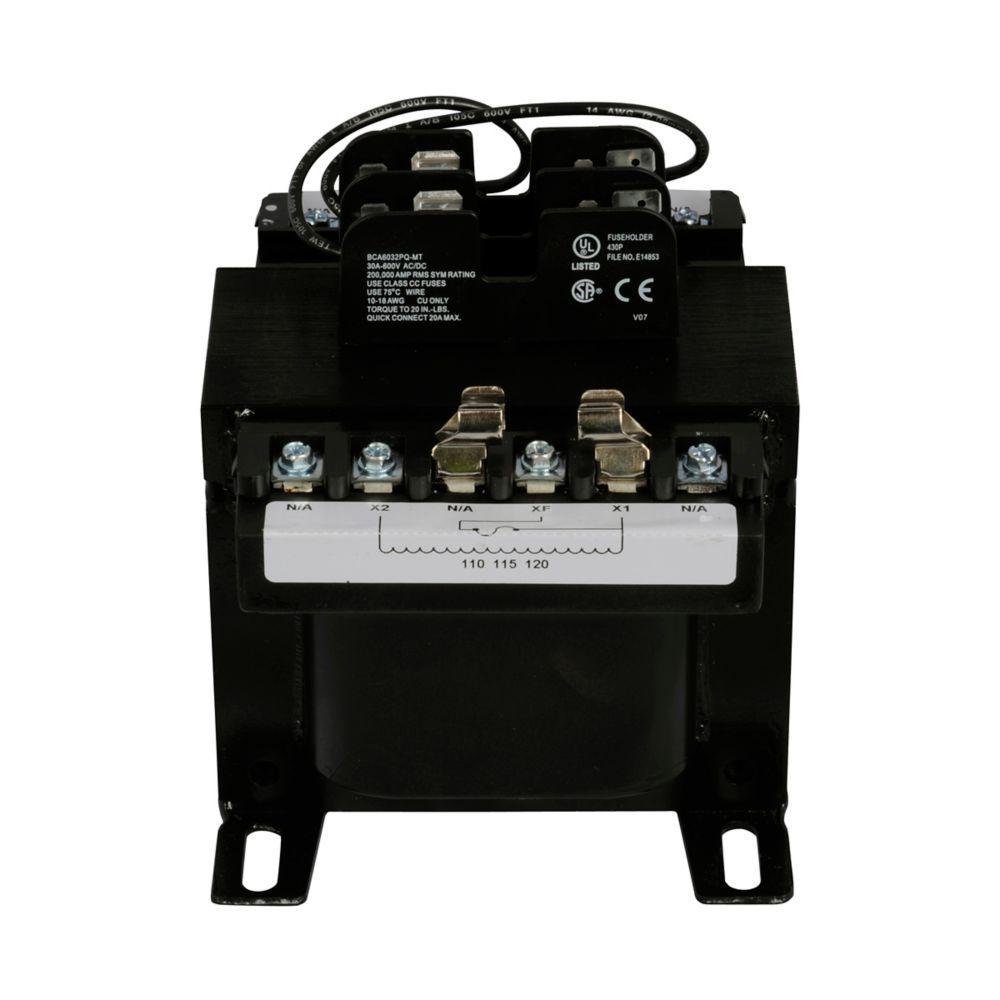

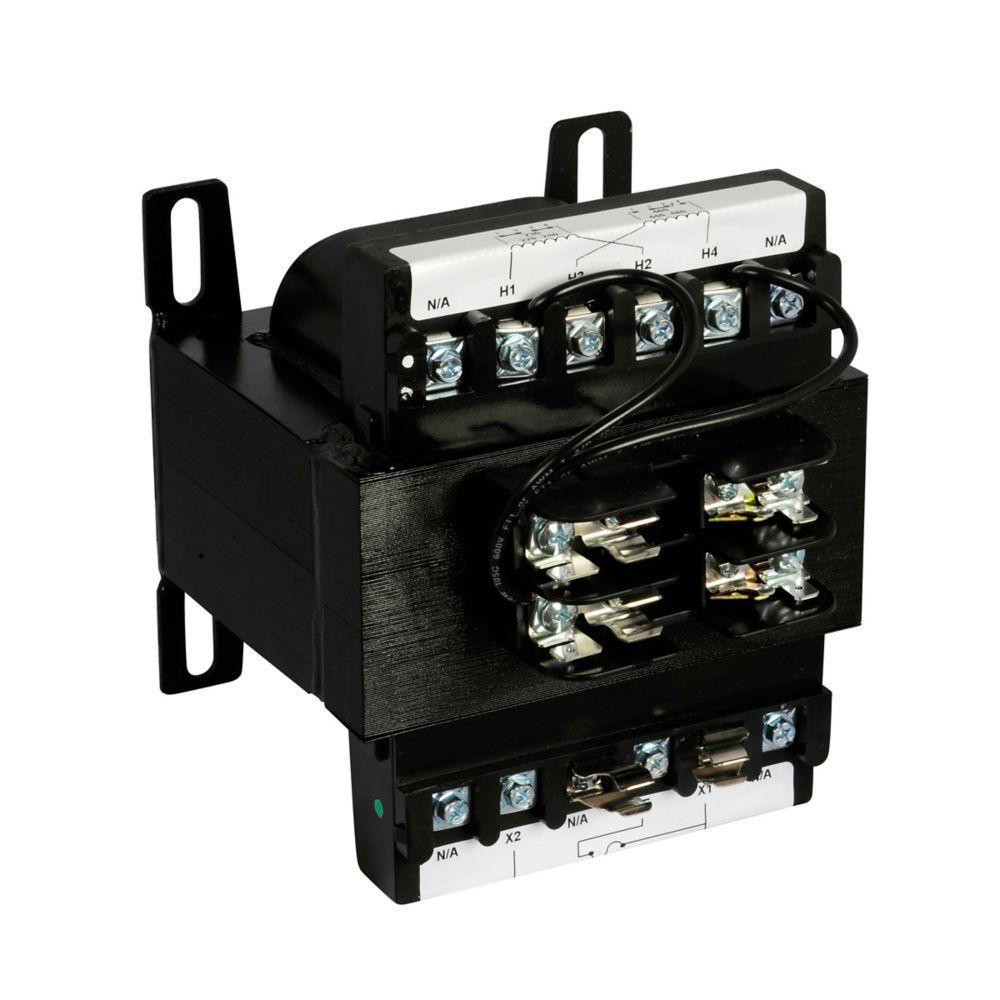

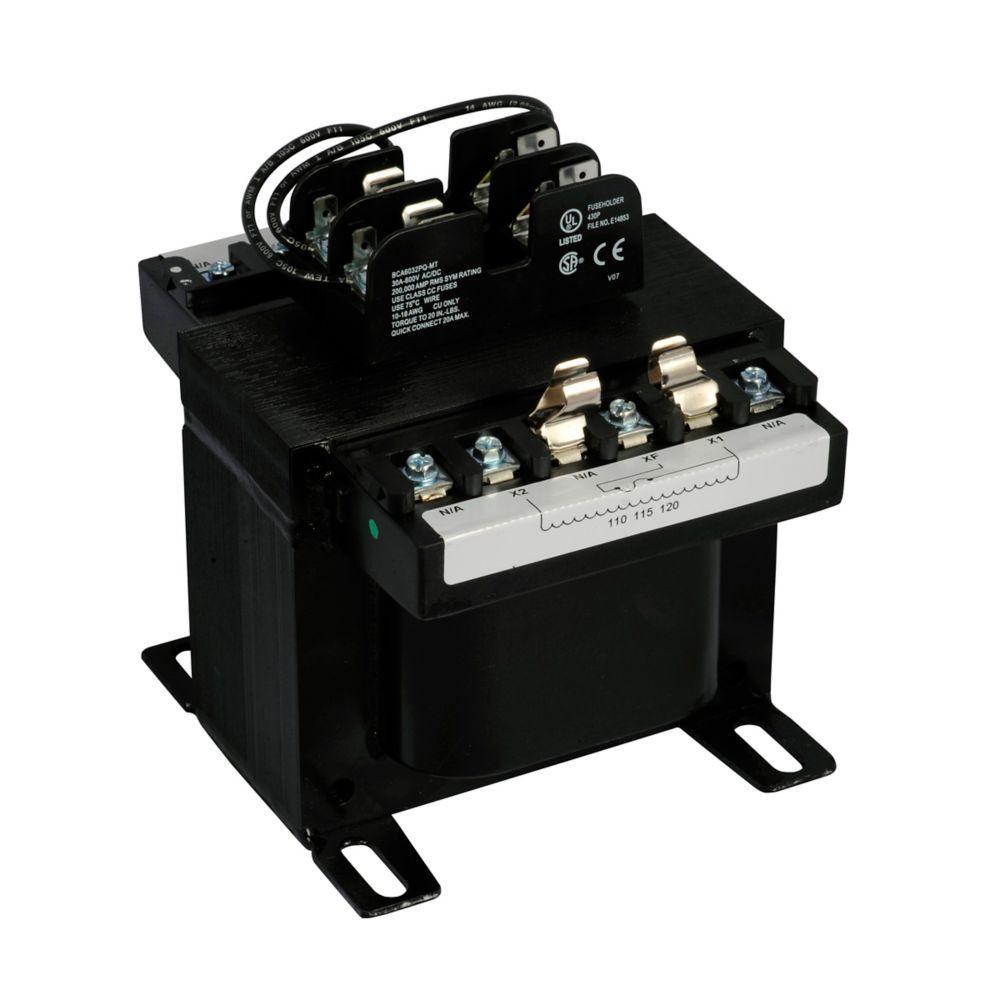

Description: EATON Control Transformer, Type MTE, 230 x 460, 220 x 440, 240 x 480 V Primary, 120/115/110 V Secondary, 750 VA Power, 50/60 Hz Frequency, 1 ph, Molded-In Connection, 130 deg C Insulation, 55 deg C, 7.008 in L x 5.236 in W x 6.142 in H Dimensions

Manufacturer PN: C0750E2AFB

UPC:  78668042271

Kendall Electric Inc PN: 2093119

Invoice Description:

C0750E2AFB CH .75KVA 230/480V-120


SPEC SHEET

▸ See All in Control Transformers


How Can We Make This Page Better?

EATON C0750E2AFB Type MTE Control Transformer, 230 x 460, 220 x 440, 240 x 480 V Primary, 120/115/110 V Secondary, 750 VA Power Rating, 50/60 Hz, 1 Phase

Log In for Pricing and Availability




Description

Eaton offers a complete line of Type AP, MTE and MTK Industrial Control Transformers, which provide stepped-down voltages to machine tool control devices. Each unit must pass rigid tests for turns ratio, insulation, continuity, and over potential. Performance meets or exceeds ANSI/NEMA ST-1 requirements. With a 50-60 Hz operation standard, transformers are designed for loads requiring extremely good regulation. Regulation also exceeds ANSI/NEMA requirements.
EATON Control Transformer, Type MTE, 230 x 460, 220 x 440, 240 x 480 V Primary, 120/115/110 V Secondary, 750 VA Power, 50/60 Hz Frequency, 1 ph, Molded-In Connection, 130 deg C Insulation, 55 deg C, 7.008 in L x 5.236 in W x 6.142 in H Dimensions

Specifications

 Application Industrial Applications
 Brand Name EATON
 Connection Type Molded-In
 Dimensions 7.008 in L x 5.236 in W x 6.142 in H
 Frequency Rating 50/60 Hz
 Insulation 130 deg C
 Manufacturer Part Number C0750E2AFB
 PART NUMBER KEYWORDS C0750E2AFB ; 7437377 ; 786680422713 ; 78668042271 ; 00786680422713
 Phase 1
 Power Rating 750 VA
 Secondary Voltage 120/115/110 V
 Standards/Approvals cUL Certified,CSA Certified,UL Listed,RoHS Compliant
 Temperature Rating 55 deg C
 Type Type MTE

Features

▪ Epoxy encapsulated coil design
▪ Laminations of high quality, silicon steel minimize core losses and optimize performance
▪ Copper magnet wire for high quality, efficient operation
▪ Secondary fuse clips where applicable
▪ Performance meets/exceeds requirements of ANSI/NEMA ST-1
▪ Regulation exceeds ANSI/NEMA requirements for all ratings
▪ Molded-in terminals for maximum durability
▪ Factory mounted 2-pole primary fuse block for rejection-type fuses
