Eaton

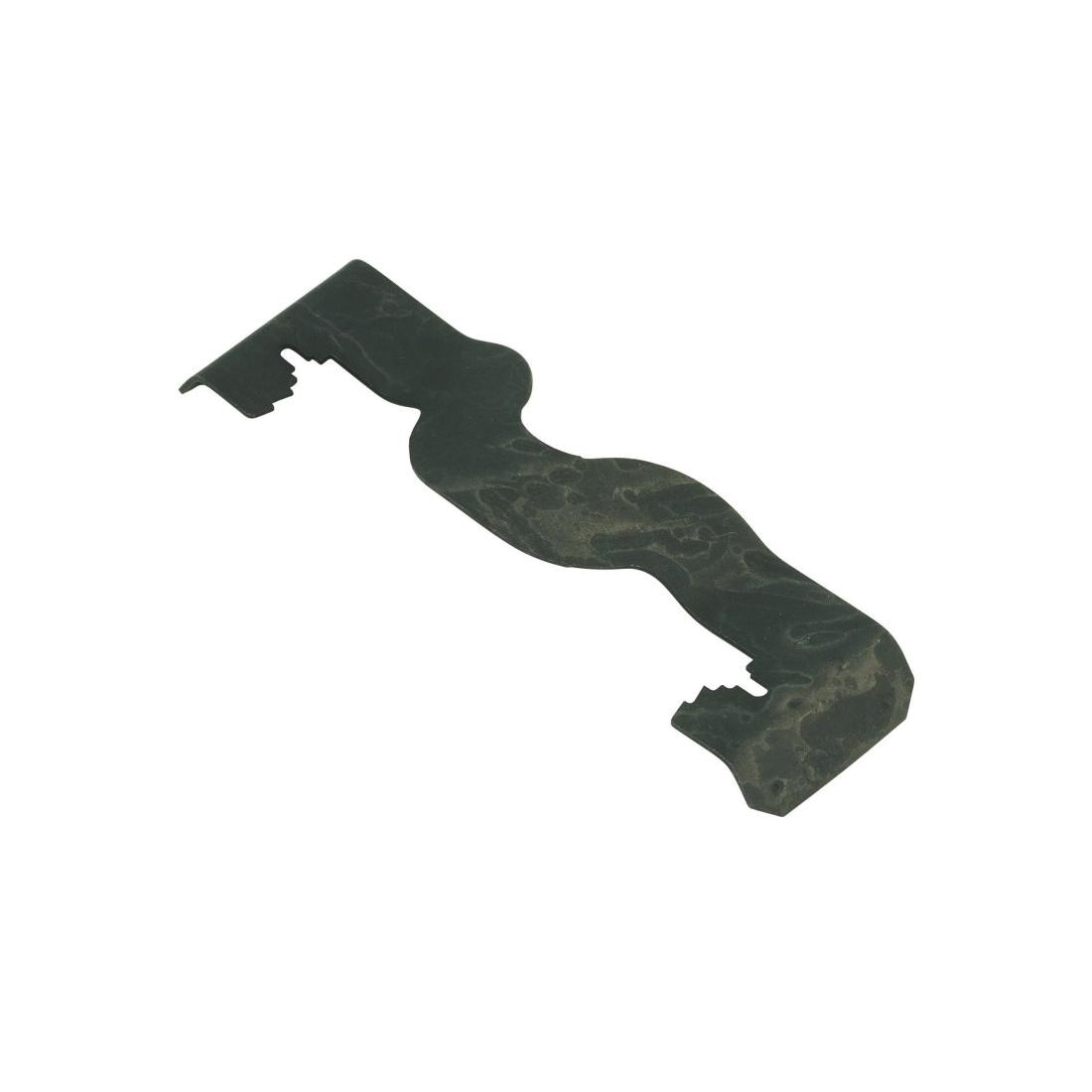

BW-8 B-LINE WING CLIP ROD AND WIRE FASTENER 78101119710

Mouse over image to zoom, click to enlarge

  • BW-8 B-LINE WING CLIP ROD AND WIRE FASTENER 78101119710
  • BW-8 B-LINE WING CLIP ROD AND WIRE FASTENER 78101119710
  • BW-8 B-LINE WING CLIP ROD AND WIRE FASTENER 78101119710

Description: B-Line Rod Wire Fastener, 1/8 to 1/4 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in EMT/Rigid Conduit, Cold Rolled High Carbon Steel

Manufacturer PN: BW-8

UPC:  78101119710

Kendall Electric Inc PN: 2415992

Invoice Description:

BW-8 B-LINE WING CLIP ROD AND WIRE FASTENER 78101119710


SPEC SHEET

▸ See All in Rod-Bolt-Wire to Beam Fasteners


How Can We Make This Page Better?

B-Line BW-8 Rod Wire Fastener, 1/8 to 1/4 in THK, 25/50/100 lb Load, Cold Rolled High Carbon Steel

Log In for Pricing and Availability




Description

B-Line is a leading manufacturer and fabricator of metal products used in the support of Pipe Hangers and Support Equipment for industrial, commercial, utility and HVACR applications. B-Line Pipe Hangers and Supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.
B-Line Rod Wire Fastener, 1/8 to 1/4 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in EMT/Rigid Conduit, Cold Rolled High Carbon Steel

Specifications

 Brand Name B-Line
 Flange Thickness 1/8 to 1/4 in
 Load Capacity 25/50/100 lb
 Manufacturer Part Number BW-8
 Material Cold Rolled High Carbon Steel
 PART NUMBER KEYWORDS BW-8 ; BW8 ; 78101119710 ; 8201576 ; 781011197100 ; 78101119710 ; 00781011197100
 Specifications 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in EMT/Rigid Conduit
 Standards/Approvals UL/cULus Listed|Federal Specification WW-H-171E, A-A-1192A Type 1|ANSI/MSS SP-69/SP-58 Type 1|FM Approved|NFPA Pamphlet 13|OSHPD Approved
 Suitable For Use With Flexible Metallic Tubing or Armored Cable

Features

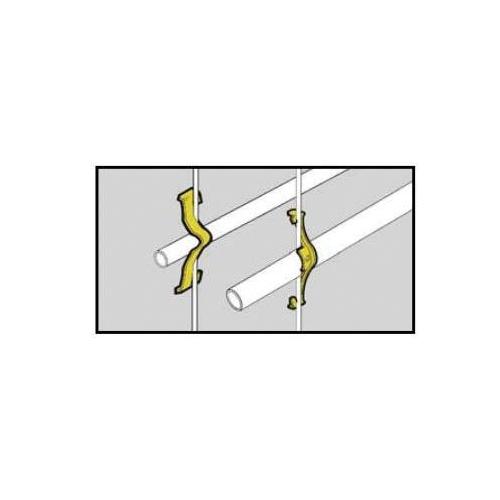

▪ Attaches conduit to wire rods or flanges
▪ Clip on installation
▪ Can be used for flexible metallic tubing, armored cable, portable cable, control cable, and communication cable

Resources

 Catalog Page
 Product Data Sheet
