Eaton

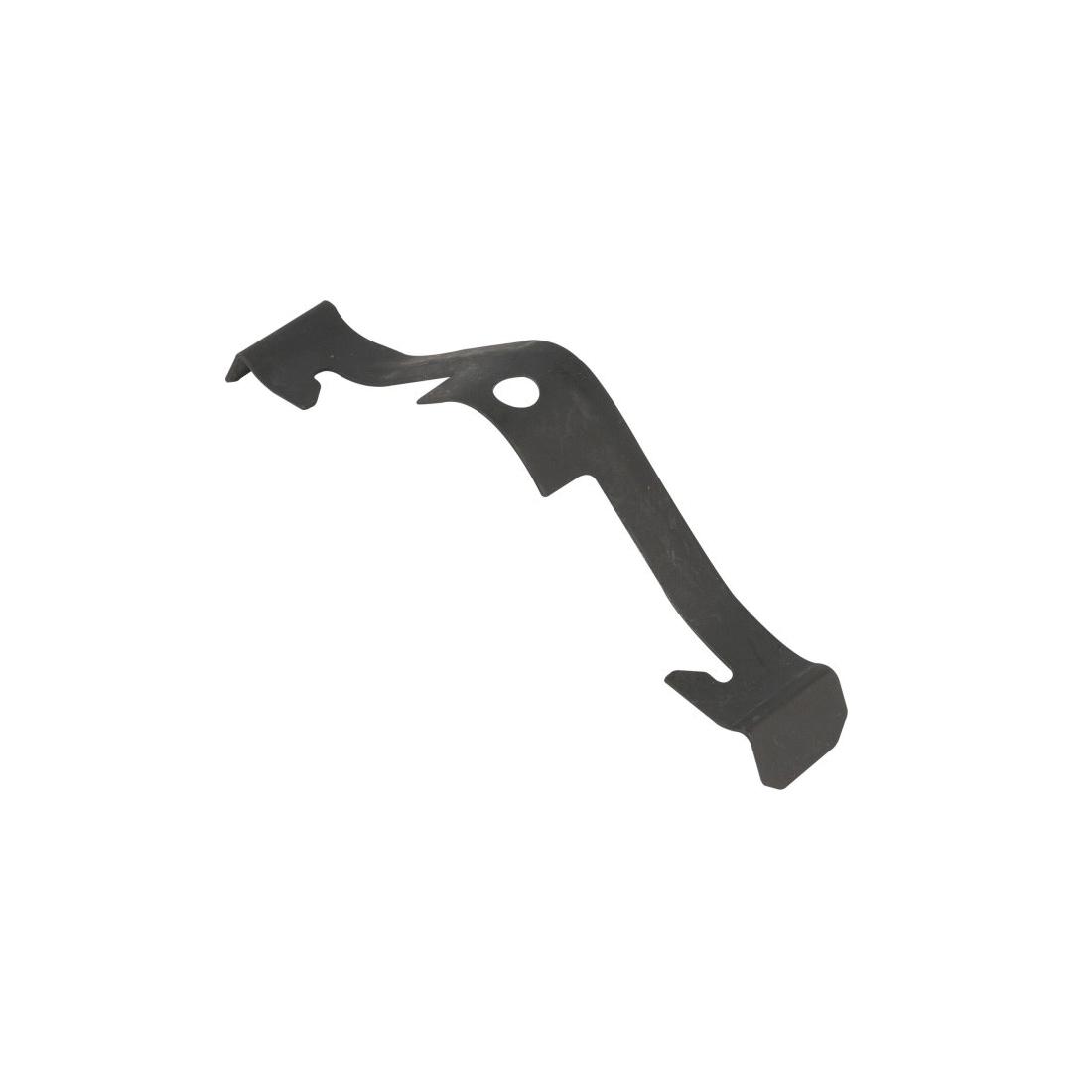

BW-16 B-LINE ROD & WIRE FASTENER 78101119720

Mouse over image to zoom, click to enlarge

  • BW-16 B-LINE ROD & WIRE FASTENER 78101119720
  • BW-16 B-LINE ROD & WIRE FASTENER 78101119720

Description: B-Line Rod Wire Fastener, 1/8 to 1/2 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 3/4 in Rigid Conduit, 1 in EMT Cable, Cold Rolled High Carbon Steel

Manufacturer PN: BW-16

UPC:  78101119720

Kendall Electric Inc PN: 3593490

Invoice Description:

BW-16 B-LINE ROD & WIRE FASTENER 78101119720


SPEC SHEET

▸ See All in Lathers Channel Rod & Wire Fasteners


How Can We Make This Page Better?

B-Line BW-16 Rod Wire Fastener, 1/8 to 1/2 in THK, 25/50/100 lb Load, Cold Rolled High Carbon Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

B-Line is a leading manufacturer and fabricator of metal products used in the support of Pipe Hangers and Support Equipment for industrial, commercial, utility and HVACR applications. B-Line Pipe Hangers and Supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.
B-Line Rod Wire Fastener, 1/8 to 1/2 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 3/4 in Rigid Conduit, 1 in EMT Cable, Cold Rolled High Carbon Steel

Specifications

 Brand Name B-Line
 Flange Thickness 1/8 to 1/2 in
 Load Capacity 25/50/100 lb
 Manufacturer Part Number BW-16
 Material Cold Rolled High Carbon Steel
 PART NUMBER KEYWORDS BW-16 ; BW16 ; 78101119720 ; 8201592 ; 781011197209 ; 78101119720 ; 00781011197209
 Specifications 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 3/4 in Rigid Conduit, 1 in EMT Cable
 Standards/Approvals UL/CUL listed
 Suitable For Use With Flexible Metallic Tubing or Armored Cable

Features

▪ Attaches conduit to wire rods or flanges
▪ Clip on installation
▪ Can be used for flexible metallic tubing, armored cable, portable cable, control cable, and communication cable

Resources

 Catalog Page
 Product Data Sheet
