Ideal Industries

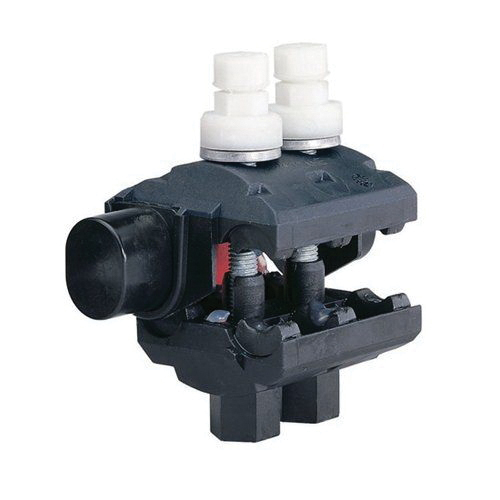

BTC4/0-2 BUC B-TAP CONNECTOR 4/0-2

Mouse over image to zoom, click to enlarge

  • BTC4/0-2 BUC B-TAP CONNECTOR 4/0-2
  • BTC4/0-2 BUC B-TAP CONNECTOR 4/0-2

Description: BUCHANAN B-TAP® Piercing Insulated Tap Connector, 2 to 4/0 AWG Main, 4 to 4/0 AWG Tap Conductor, 600 V AC, 1-Bolt, 3.2 in-lb Torque, 1/2 in Socket, 194 deg F, 4.4 in H x 2.4 in W x 3.2 in D

Manufacturer PN: BTC4/0-2

UPC:  78178945447

Kendall Electric Inc PN: 21030

Invoice Description:

BTC4/0-2 BUC B-TAP CONNECTOR 4/0-2


SPEC SHEET

▸ See All in Piercing Insulated Connectors


How Can We Make This Page Better?

BUCHANAN B-TAP® BTC4/0-2 Piercing Insulated Tap Connector, 2 to 4/0 AWG Main, 4 to 4/0 AWG Tap Conductor

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Safe, dependable, and easy. No other connector offers as much as the B-TAP® insulation piercing connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap and much more. Self-insulating and weather-proof, B-TAP® connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease filled rubber end caps provide superior water and corrosion resistance, while the insulation design eliminates downtime and power interruptions. That translates into a 60% installed savings compared to split bolts. The exclusive breakaway torque nut simply snaps off when UL torque requirements are met. No more guesswork! B-TAP® connectors can be safely installed on energized systems, eliminating power interruptions and downtime.
BUCHANAN B-TAP® Piercing Insulated Tap Connector, 2 to 4/0 AWG Main, 4 to 4/0 AWG Tap Conductor, 600 V AC, 1-Bolt, 3.2 in-lb Torque, 1/2 in Socket, 194 deg F, 4.4 in H x 2.4 in W x 3.2 in D

Specifications

 Brand Name BUCHANAN
 Conductor Size 2 to 4/0 AWG Main, 4 to 4/0 AWG Tap
 Dimensions 4.4 in H x 2.4 in W x 3.2 in D
 Manufacturer Part Number BTC4/0-2
 Specifications 1-Bolt, 3.2 in-lb Torque, 1/2 in Socket
 Standards/Approvals CSA Certified|RoHS Compliant|UL Listed
 Temperature Rating 194 deg F
 Type Insulation-Piercing
 Voltage Rating 600 V AC

Features

▪ Installs on energized systems eliminating costly power shutdowns
▪ Unique turbo spacer keeps connector wide open for quick and easy installation
▪ Eliminates split bolts and tape
▪ Self-sealing, grease filled end cap ensures safe
▪ Weathertight connection
▪ Breakaway torque nut snaps off when UL torque requirements are met
▪ Second nut remains for easy connector removal
▪ Self-insulated housing eliminates the need for tape, safely installs on energized systems
▪ Grease filled end cap seals end of conductor for superior weather protection
▪ Grease filled boots protect copper teeth from corrosion and prevent arcing
▪ Hardened copper teeth pierce insulation and bite into conductors
▪ Torque regulating nut breaks off when proper tension is reached
▪ Easy 2 min installation requires only box/socket wrench
▪ Can be used on copper-copper, aluminum-aluminum, copper-aluminum and aluminum-copper when used in non-tension, insulated applications
