Eaton

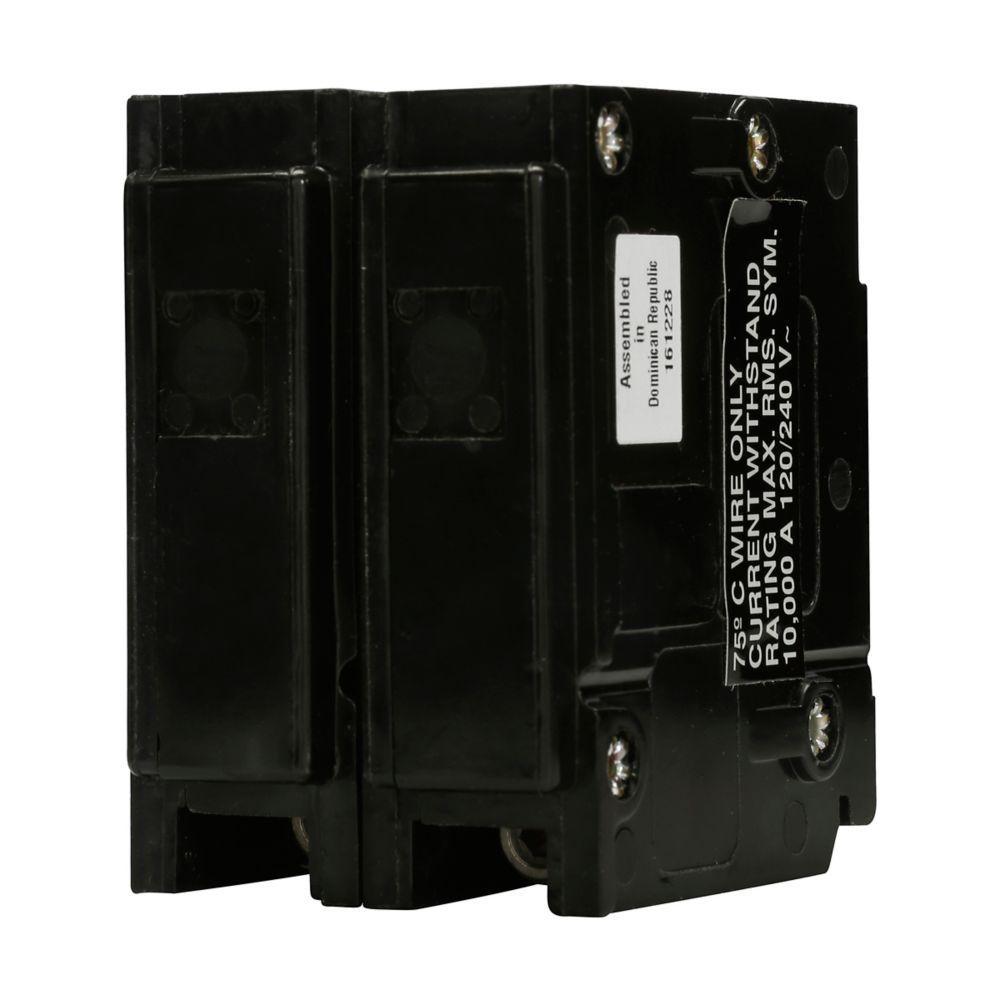

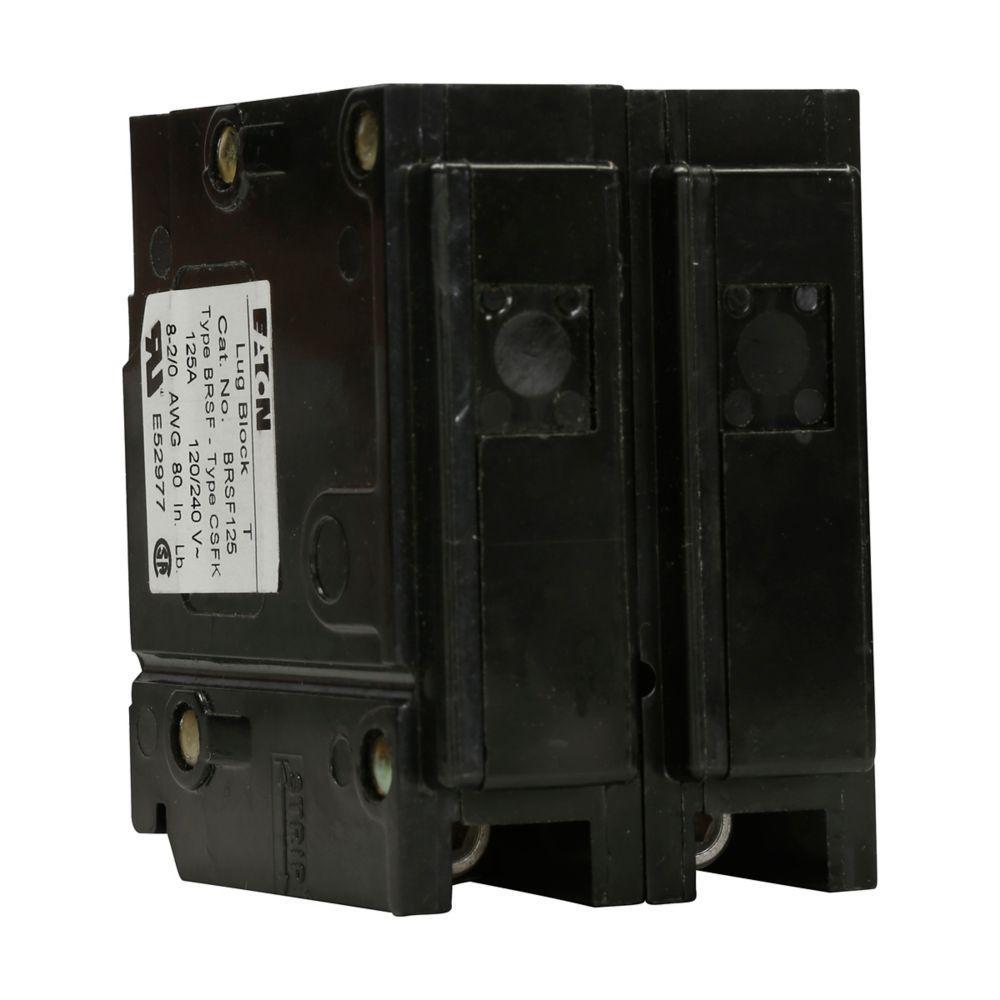

BRSF125 CH SUB-FEED LUG BLOCK 2P 125 AMP

Mouse over image to zoom, click to enlarge

  • BRSF125 CH SUB-FEED LUG BLOCK 2P 125 AMP
  • BRSF125 CH SUB-FEED LUG BLOCK 2P 125 AMP
  • BRSF125 CH SUB-FEED LUG BLOCK 2P 125 AMP

Description: EATON Main/Sub-Feed Lug Block, 2 Pole, 125 A, For Use With: Type BR Loadcenter and Circuit Breaker, 2-1/2 in L x 4-1/2 in W x 4 in H

Manufacturer PN: BRSF125

UPC:  78667600176

Kendall Electric Inc PN: 2027776

Invoice Description:

BRSF125 CH SUB-FEED LUG BLOCK 2P 125 AMP


SPEC SHEET

▸ See All in Load Center Sub-Feed Lug Blocks


How Can We Make This Page Better?

EATON BRSF125 Main/Sub-Feed Lug Block, 2 Poles, 125 A, For Use With Type BR Loadcenter and Circuit Breaker

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main/Sub-Feed Lug Block, 2 Pole, 125 A, For Use With: Type BR Loadcenter and Circuit Breaker, 2-1/2 in L x 4-1/2 in W x 4 in H

Specifications

 Amperage Rating 125 A
 Brand Name EATON
 Dimensions 2-1/2 in L x 4-1/2 in W x 4 in H
 Manufacturer Part Number BRSF125
 Number of Poles 2
 Standards/Approvals CE Marked|EN 60947-5-1/60947-5-5|CSA C22.2 No. 14 File No. LR68551|UL 508 File No. 131568
 Suitable For Use With Type BR Loadcenter and Circuit Breaker

Features

▪ Flush mounting
▪ 8 to 2/0 AWG copper aluminum wire range
▪ (2) 1 in spaces needed

Resources

 Catalog Page
 Product Data Sheet
