Eaton

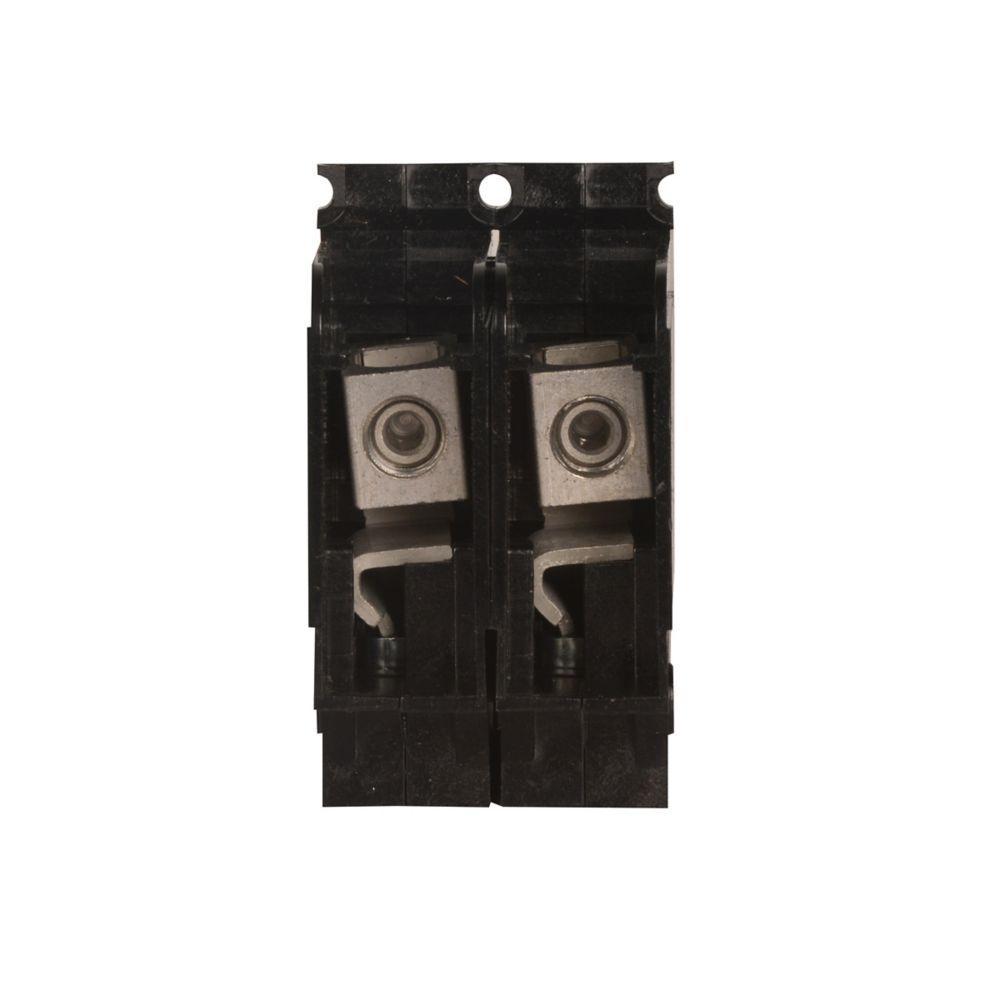

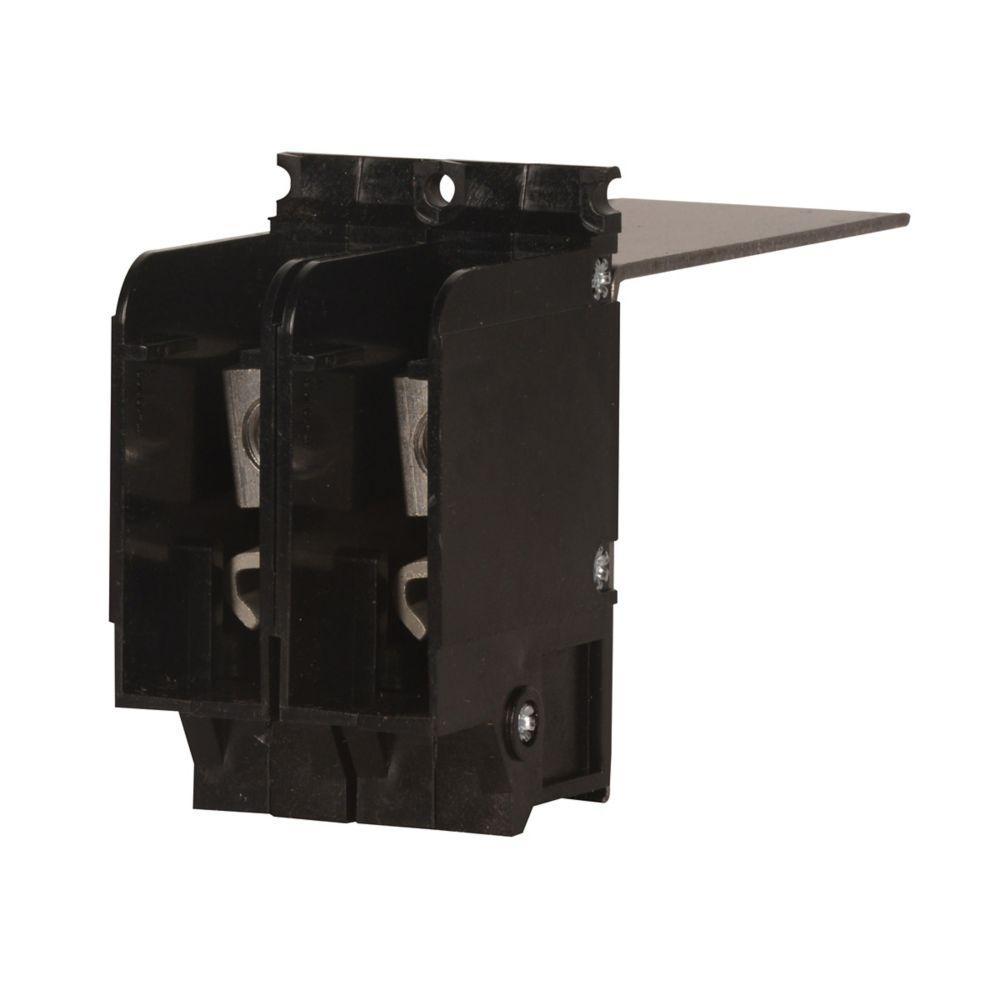

BRS125CLX CH MAIN OR SUBFEED LUG BLOCK 2 POLE 125A #6-2/0 WIRE SIZE

Mouse over image to zoom, click to enlarge

Description: EATON Main/Sub-Feed Lug Block, 2 Pole, 125 A, For Use With: Type BR Loadcenter and Circuit Breaker

Manufacturer PN: BRS125CLX

UPC: 78211488123

Kendall Electric Inc PN: 3762956

Invoice Description:

BRS125CLX CH MAIN OR SUBFEED LUG BLOCK 2 POLE 125A #6-2/0 WIRE SIZE

SPEC SHEET

▸ See All in Load Center Sub-Feed Lug Blocks

How Can We Make This Page Better?

EATON BRS125CLX Main/Sub-Feed Lug Block, 2 Poles, 125 A, For Use With Type BR Loadcenter and Circuit Breaker

Note: Lead times are estimates only

Description Specifications Resources

Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main/Sub-Feed Lug Block, 2 Pole, 125 A, For Use With: Type BR Loadcenter and Circuit Breaker

Specifications

Amperage Rating	125 A
Brand Name	EATON
Includes	Combination Recess Hex Head Machine Screw and Square Nut
Manufacturer Part Number	BRS125CLX
Number of Poles	2
Standards/Approvals	UL Listed
Suitable For Use With	Type BR Loadcenter and Circuit Breaker
