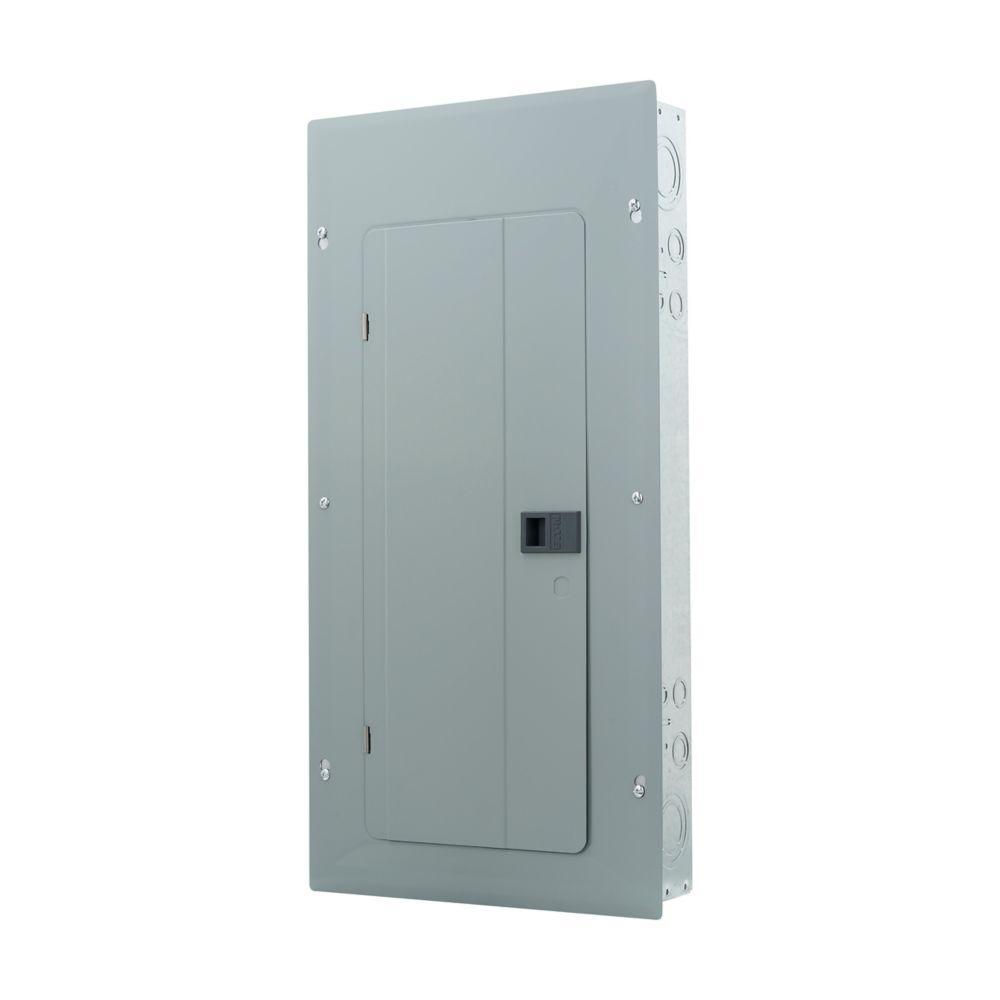

BRP30B100 CH BR PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACE

Mouse over image to zoom, click to enlarge

  • BRP30B100 CH BR PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACE
  • BRP30B100 CH BR PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACE

Description: EATON Main Circuit Breaker Load Center, 1-Phase, 120/240 V AC, 100 A, 1 Pole, 10 kA Interrupt, 30 Circuits, BR Breaker, 3-Wire Wiring Configuration, 25 B22 Bus, 30 Spaces, 6 to 2/0 AWG Wire, Plug-On Mounting, NEMA 1 Enclosure, X5 Enclosure Box, Galvanized Steel Housing Material, 29-1/2 in L x 15 in W x 4-1/2 in H Dimensions

Manufacturer PN: BRP30B100

UPC:  78668905499

Kendall Electric Inc PN: 3857092

Invoice Description:

BRP30B100 CH BR PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACE


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON BRP30B100 1-Phase Main Circuit Breaker Load Center, 120/240 V AC, 100 A, 1 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Circuit Breaker Load Center, 1-Phase, 120/240 V AC, 100 A, 1 Pole, 10 kA Interrupt, 30 Circuits, BR Breaker, 3-Wire Wiring Configuration, 25 B22 Bus, 30 Spaces, 6 to 2/0 AWG Wire, Plug-On Mounting, NEMA 1 Enclosure, X5 Enclosure Box, Galvanized Steel Housing Material, 29-1/2 in L x 15 in W x 4-1/2 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application Electrical Assemblies, Panels and EOEMs, Indoor, Residential, Light Commercial, Residential Buildings and Facilities Applications
 Brand Name EATON
 Breaker Type BR
 Bus Rating 25 B22
 Dimensions 29-1/2 in L x 15 in W x 4-1/2 in H
 Enclosure NEMA 1
 Enclosure Box Size X5
 Housing Material Galvanized Steel
 Includes Cover and Combination Trim
 Manufacturer Part Number BRP30B100
 Mounting Type Plug-On
 Number of Circuits 30
 Number of Poles 1
 Number of Spaces 30
 PART NUMBER KEYWORDS BRP30B100 ; 14278279 ; 786689054991 ; 78668905499 ; 00786689054991
 Standards/Approvals UL 50,UL 67
 Type 1-Phase
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Bonding Z-strap, provides easy field conversion for service entrance applications
▪ Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
▪ 6 to 2/0 AWG copper/aluminum wire size
▪ Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
▪ Straight-in wiring saves labor and material
▪ One panel for either top or bottom applications
▪ 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
▪ Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
▪ Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
▪ Tangential center knockout - easier installation for conduit applications
▪ Commercial grade main breaker, 25 kA series rated main breaker for superior protection
▪ Neutral bus, easily removable for sub-panel applications
