Eaton

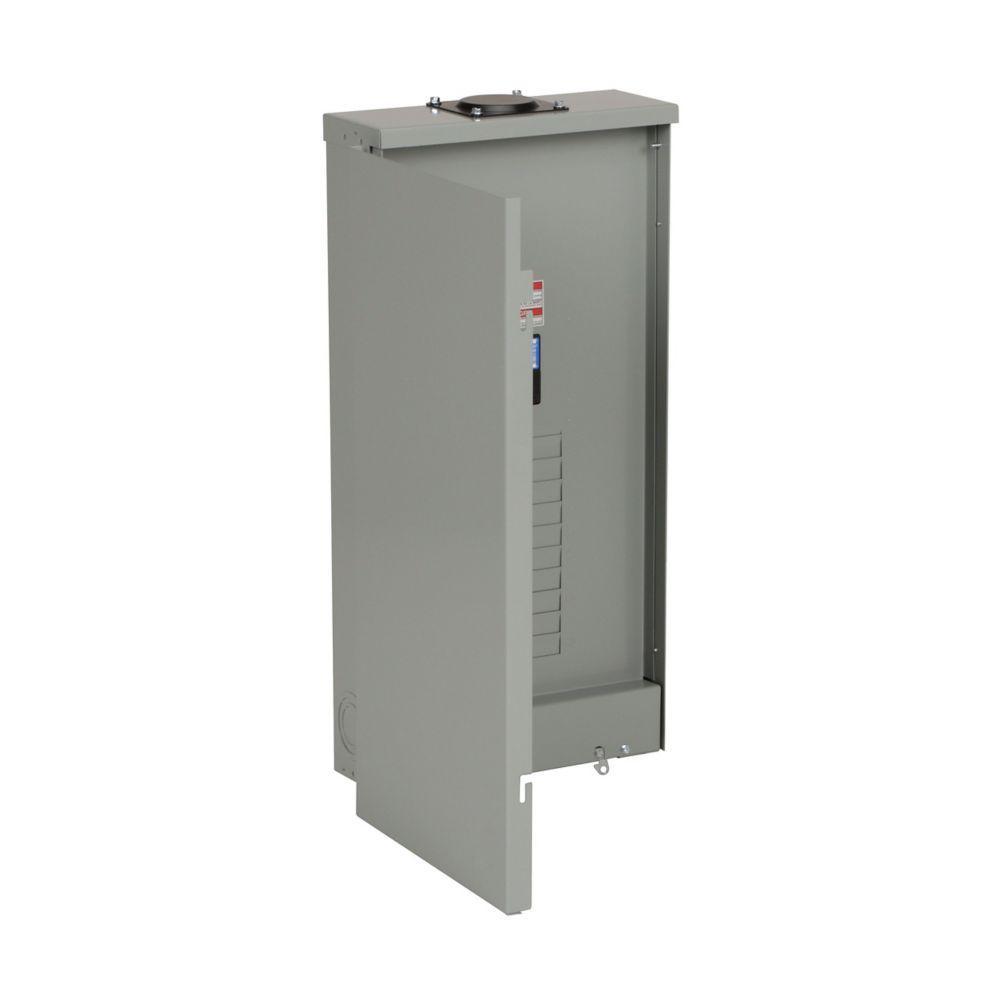

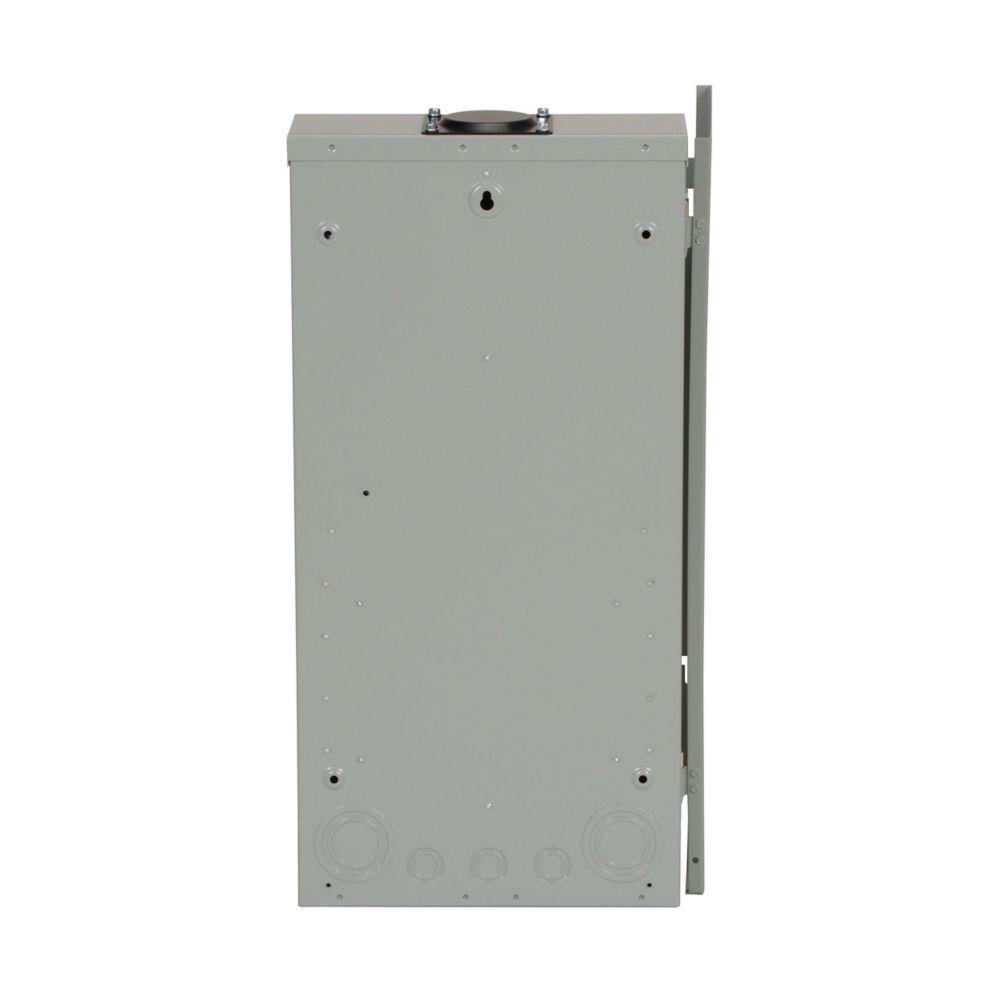

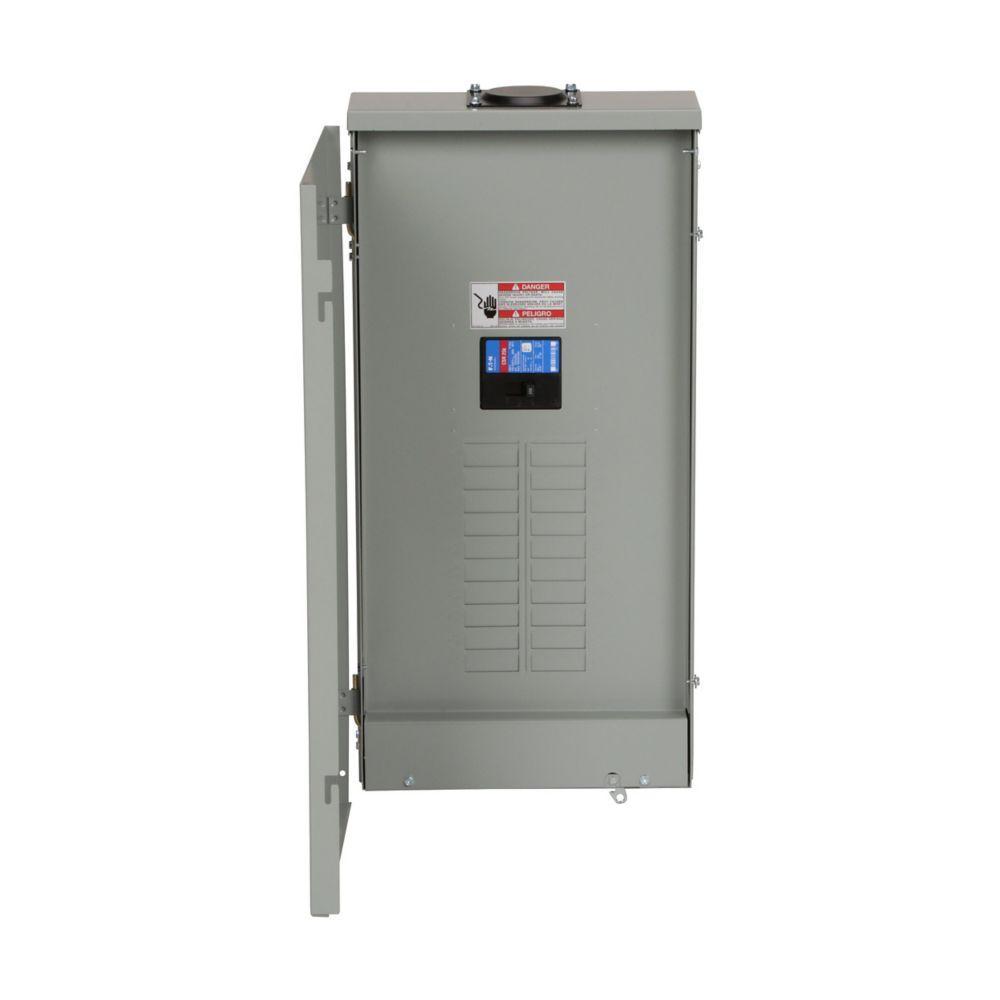

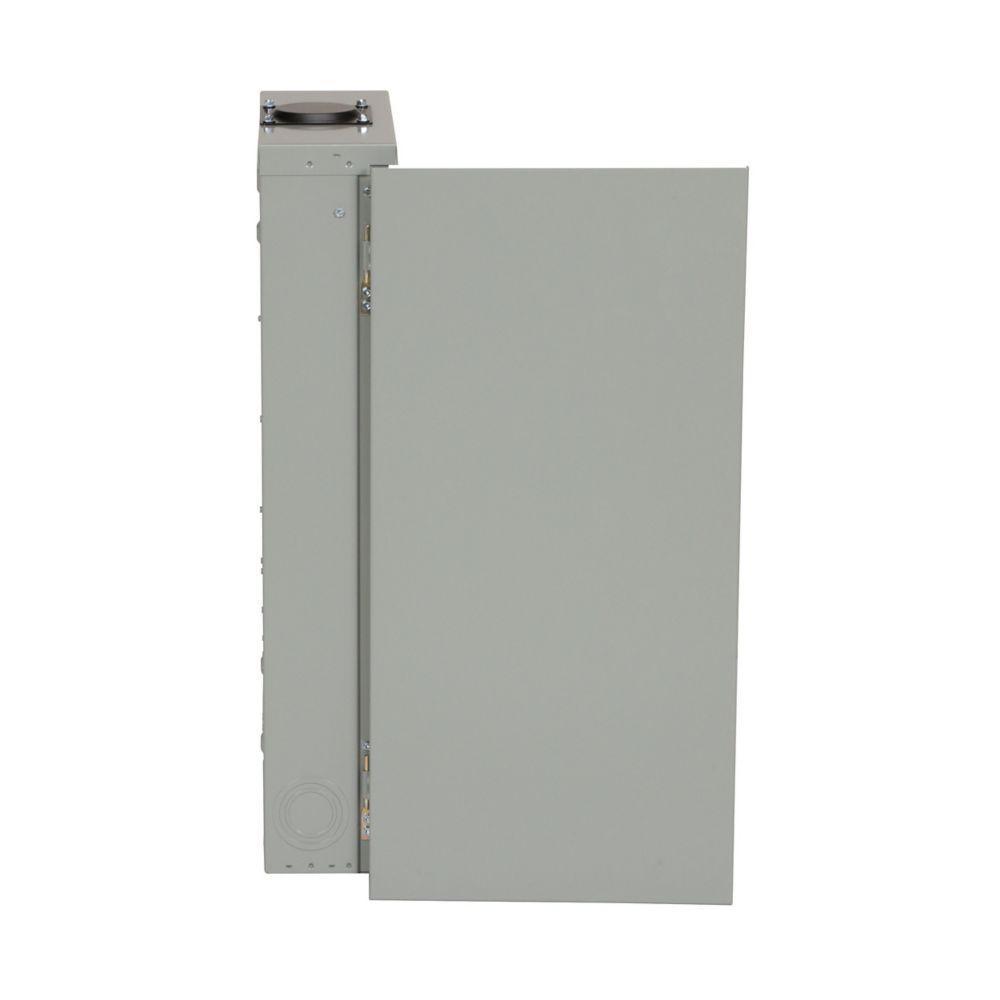

BRP20B200R CH EATON BR PON LOADCENTER

Mouse over image to zoom, click to enlarge

  • BRP20B200R CH EATON BR PON LOADCENTER
  • BRP20B200R CH EATON BR PON LOADCENTER
  • BRP20B200R CH EATON BR PON LOADCENTER
  • BRP20B200R CH EATON BR PON LOADCENTER
  • BRP20B200R CH EATON BR PON LOADCENTER

Description: EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 200 A, 1 Pole, 10 kA Interrupt, 20 Circuits, BR Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 20 Spaces, Plug-On Mounting, NEMA 3R Enclosure, X5 Enclosure Box, Sheet Steel Housing Material, 3.88 in L x 14.31 in W x 6 in H Dimensions

Manufacturer PN: BRP20B200R

UPC:  78668905925

Kendall Electric Inc PN: 3846621

Invoice Description:

BRP20B200R CH EATON BR PON LOADCENTER


SPEC SHEET

How Can We Make This Page Better?

EATON BRP20B200R 1-Phase Main Breaker Load Center, 120/240 V AC, 200 A, 1 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 200 A, 1 Pole, 10 kA Interrupt, 20 Circuits, BR Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 20 Spaces, Plug-On Mounting, NEMA 3R Enclosure, X5 Enclosure Box, Sheet Steel Housing Material, 3.88 in L x 14.31 in W x 6 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels and EOEMs, Residential Buildings and Facilities Applications
 Brand Name EATON
 Breaker Mounting Plug-On Neutral
 Breaker Type BR
 Dimensions 3.88 in L x 14.31 in W x 6 in H
 Enclosure NEMA 3R
 Enclosure Box Size X5
 Housing Material Sheet Steel
 Includes Cover
 Manufacturer Part Number BRP20B200R
 Mounting Type Plug-On
 Number of Circuits 20
 Number of Poles 1
 Number of Spaces 20
 PART NUMBER KEYWORDS BRP20B200R ; 14285156 ; 786689059255 ; 78668905925 ; 00786689059255
 Standards/Approvals UL 50,UL 67
 Type 1-Phase
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Aluminum bus housing
▪ NEMA 3R rain proof enclosure
▪ ANSI 61 gray trim
▪ The BR plug-on neutral portfolio from EATON offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
▪ Unique self-leveling tabs to allow for quick drywall offset
▪ The short-body BR electronic circuit breakers are optimized to save gutter space and installation time with an easier, more succinct installation process
▪ Added key hole hanging feature on cover for ease of installation
▪ Common drive types on screw connections for added simplicity and convenience
▪ In board neutral to increase the gutter space for easier installation of conductors
▪ Backed-out neutral screws to allow for a quick connection of ground and neutral conductors
▪ Upgraded to embossed circuit numbers for a more clean and professional look
▪ Main breaker
