Eaton

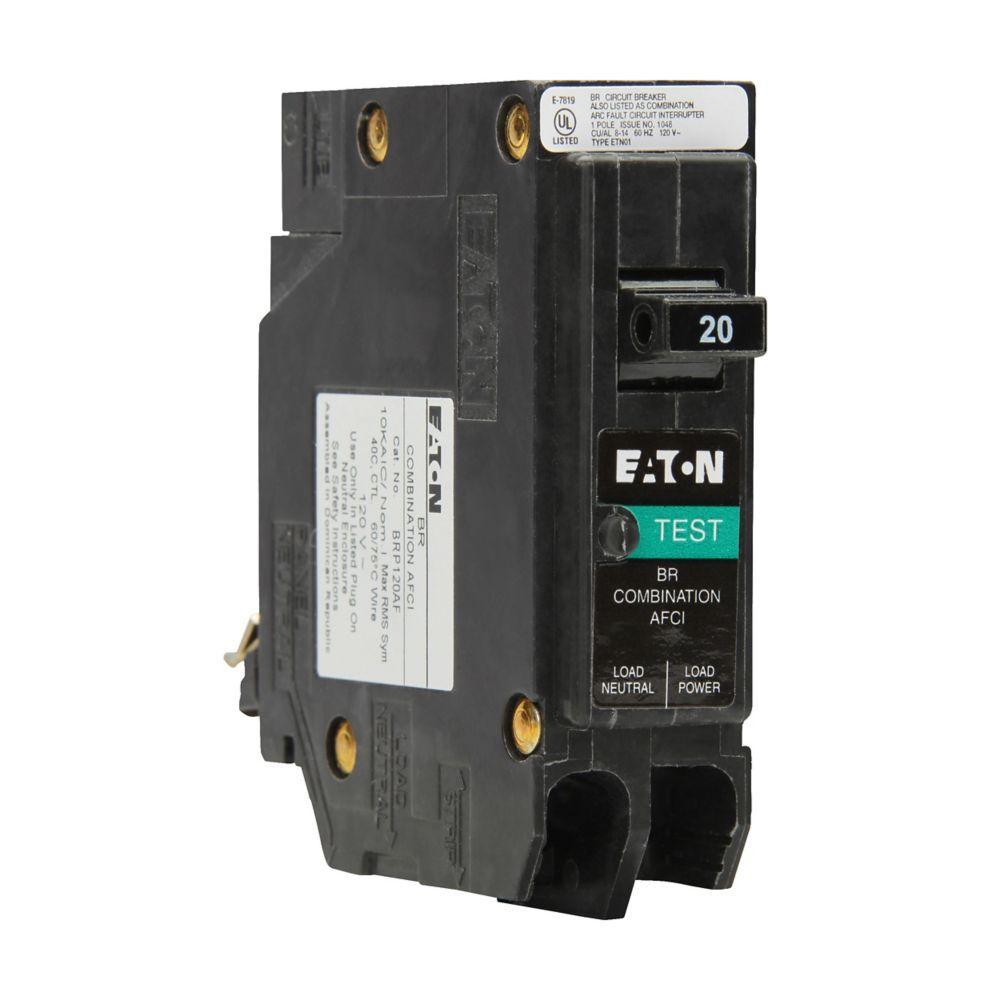

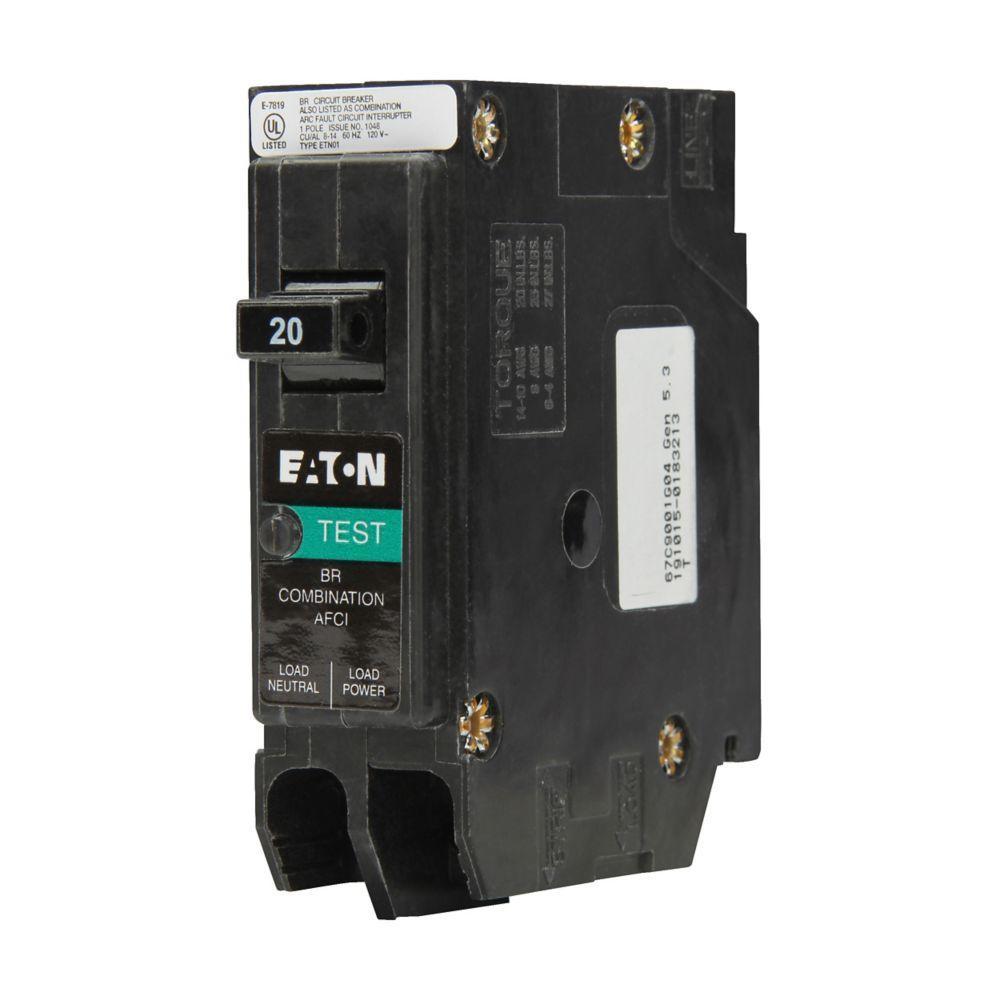

BRP120AF CH AFCI, 1P, 20A, 10KAIC PON

Mouse over image to zoom, click to enlarge

  • BRP120AF CH AFCI, 1P, 20A, 10KAIC PON
  • BRP120AF CH AFCI, 1P, 20A, 10KAIC PON
  • BRP120AF CH AFCI, 1P, 20A, 10KAIC PON

Description: EATON Arc Fault Circuit Interrupter, Type BR, 120 V AC, 20 A, 10 kA Interrupt, 1 Pole, 1 ph, Pigtail Neutral Connection, 14 to 8 AWG Wire, Plug-On Mounting, 6 in L x 3-1/2 in W x 1-1/4 in H Dimensions, Thermoset

Manufacturer PN: BRP120AF

UPC:  78668904102

Kendall Electric Inc PN: 3818120

Invoice Description:

BRP120AF CH AFCI, 1P, 20A, 10KAIC PON


SPEC SHEET

How Can We Make This Page Better?

EATON BRP120AF Type BR Arc Fault Circuit Interrupter, 120 V AC, 20 A, 10 kA Interrupt, 1 Poles

Log In for Pricing and Availability




Description

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
EATON Arc Fault Circuit Interrupter, Type BR, 120 V AC, 20 A, 10 kA Interrupt, 1 Pole, 1 ph, Pigtail Neutral Connection, 14 to 8 AWG Wire, Plug-On Mounting, 6 in L x 3-1/2 in W x 1-1/4 in H Dimensions, Thermoset

Specifications

 Amperage Rating 20 A
 Application For use with type BR loadcentersand electrical assemblies, panels and EOEMs applications
 Brand Name EATON
 Connection Type Pigtail Neutral
 Dimensions 6 in L x 3-1/2 in W x 1-1/4 in H
 Manufacturer Part Number BRP120AF
 Material Thermoset
 Mounting Type Plug-On
 Number of Poles 1
 PART NUMBER KEYWORDS BRP120AF ; 14260248 ; 786689041021 ; 78668904102 ; 00786689041021
 Phase 1
 Standards/Approvals UL Listed
 Type Type BR
 Voltage Rating 120 V AC

Resources

 Catalog Page
 Product Data Sheet
