Eaton

Mouse over image to zoom, click to enlarge

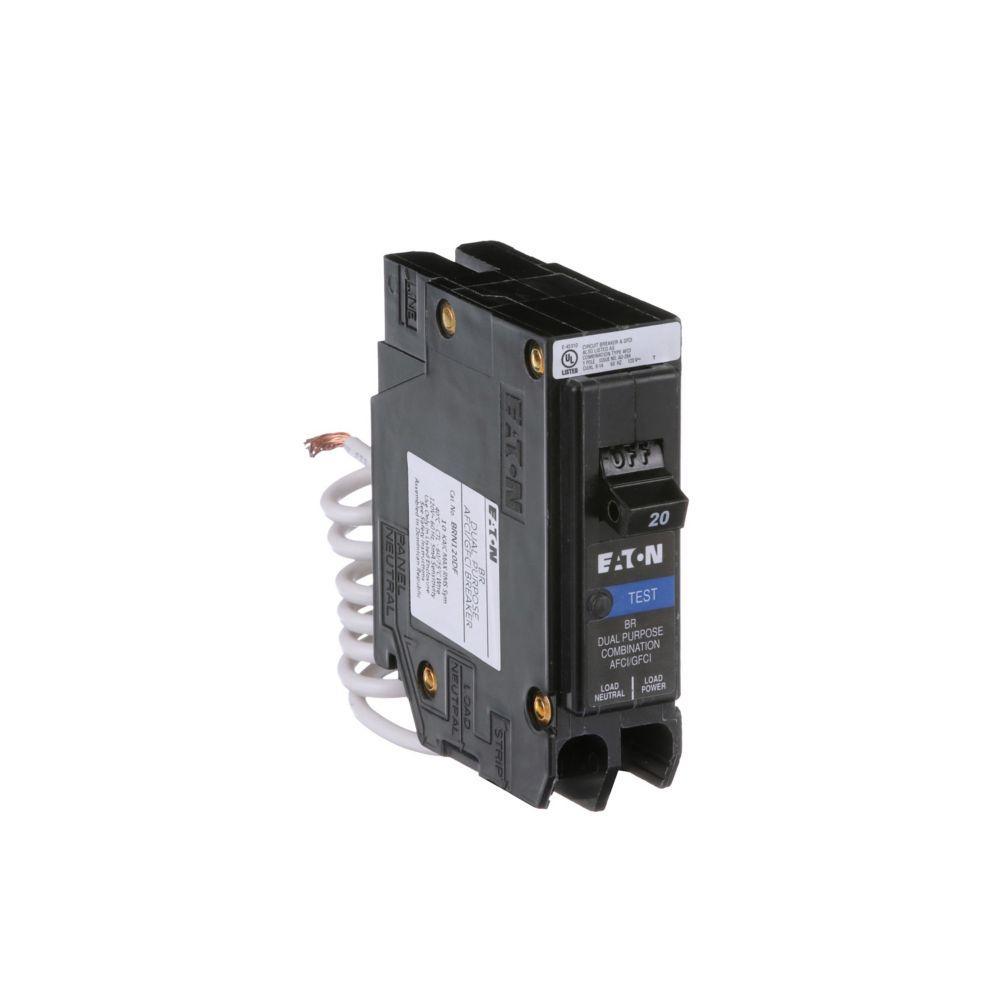

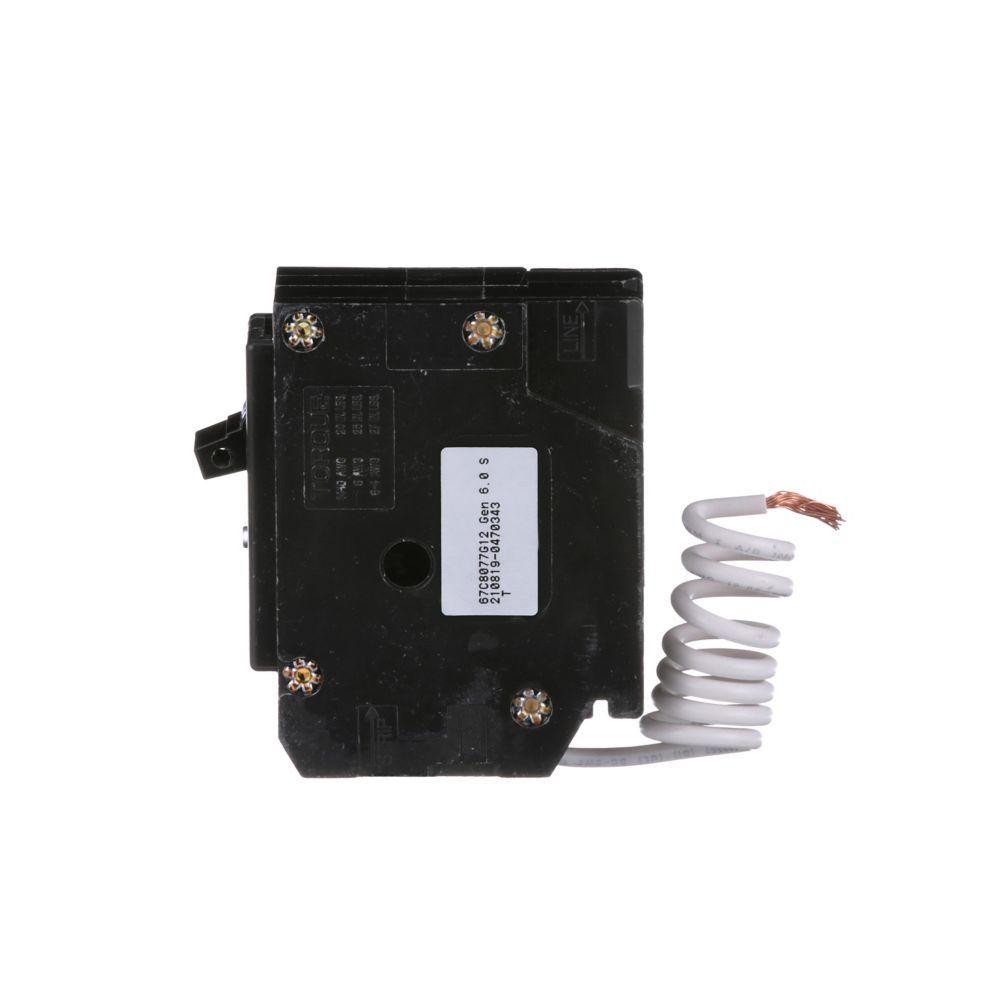

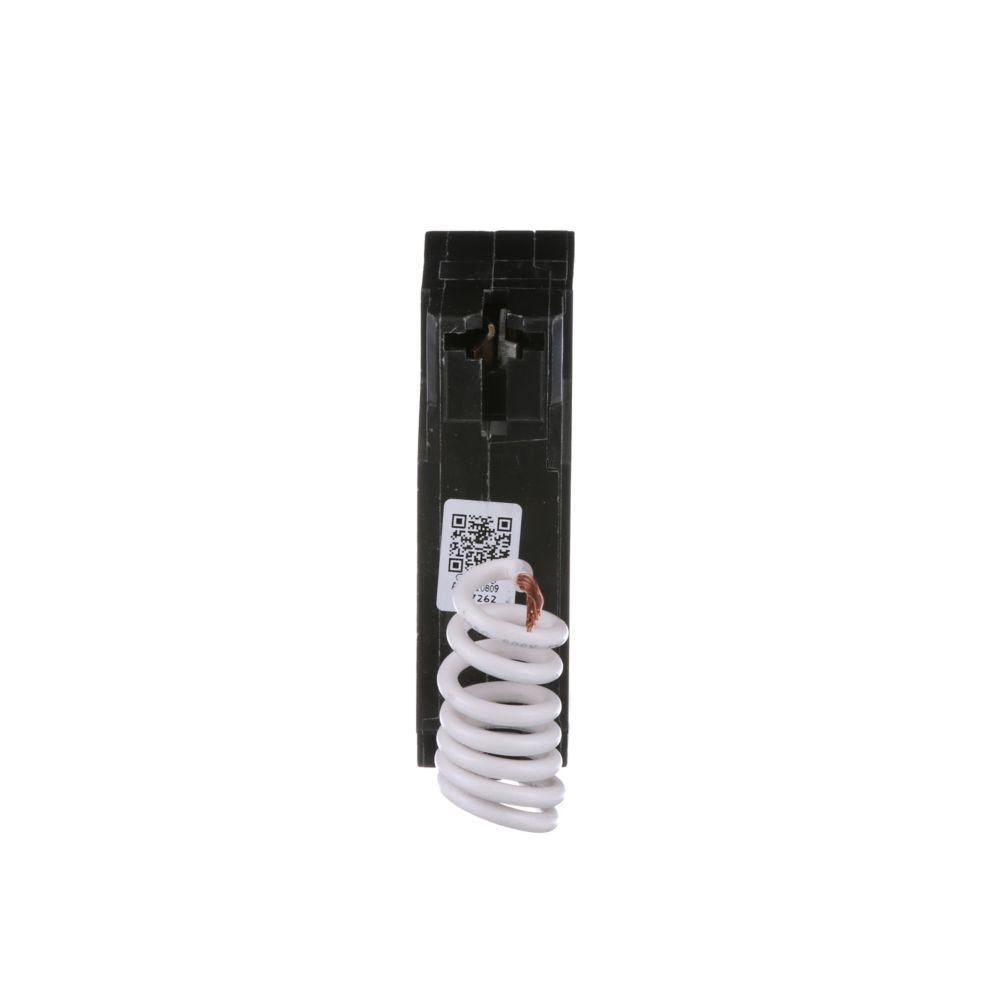

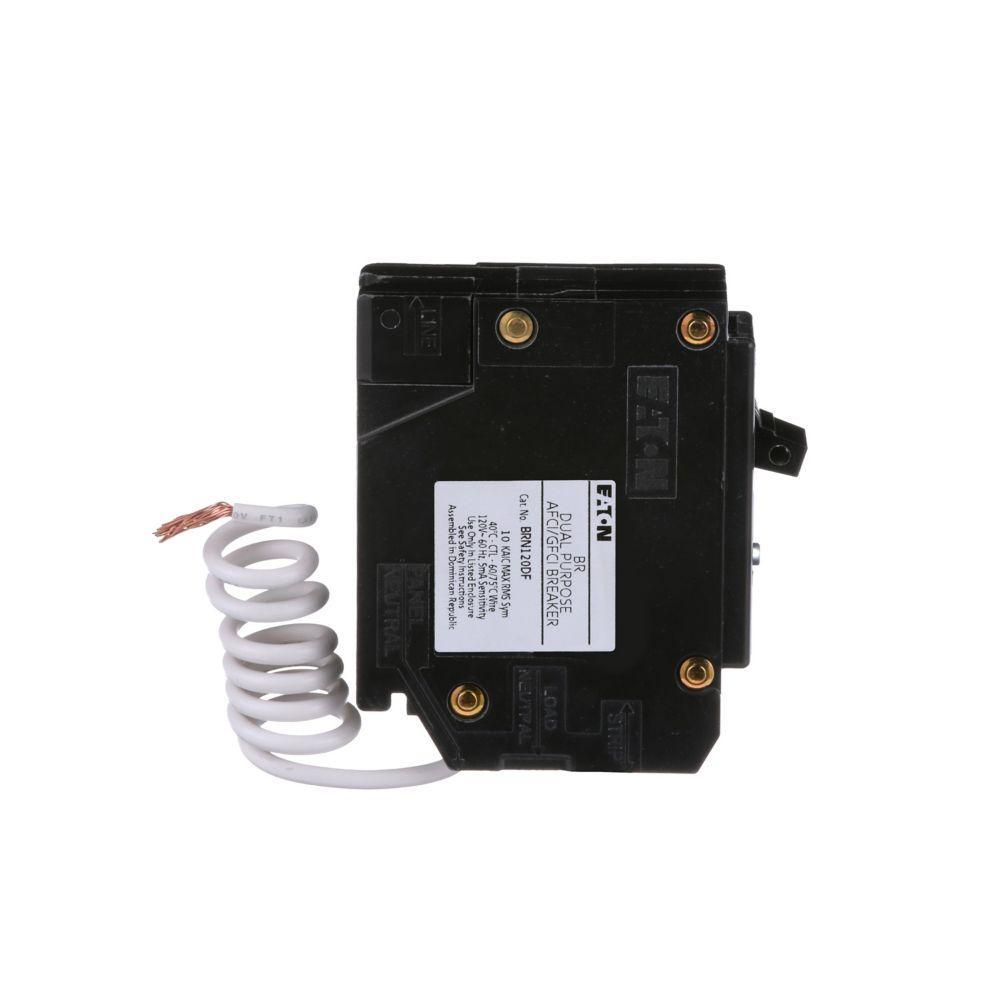

Description: EATON Arc Fault/Ground Fault Circuit Breaker, 2-Function Type BR Combination Miniature, 120 VAC, 20 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pigtail Connection, 14 to 4 AWG Wire, Plug-On Mounting, 2.9 in L x 2.9 in W x 0.9 in H Dimensions

Manufacturer PN: BRN120DF

UPC: 78668905969

Kendall Electric Inc PN: 3846612

Invoice Description:

BRN120DF CH EATON BR DUAL FUNCTION AF/GF, PIGTAIL NEUTRAL, 20A, 10KAIC

SPEC SHEET

▸ See All in Combination Circuit Breakers

How Can We Make This Page Better?

EATON BRN120DF 2-Function Type BR Combination Miniature Arc Fault/Ground Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip

Description Specifications Resources

Description

A combination type arc fault circuit interrupter is a device that includes all of the protection offered by the branch feeder AFCI (mitigation of high current arcing faults in the complete circuit, including connected cords), in addition it provides direct detection of persistent low current arcing faults down to 5 A with associated mitigation of fire hazards in the cords connected to the outlets. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The current level of low current arcing faults is limited by the load.

EATON Arc Fault/Ground Fault Circuit Breaker, 2-Function Type BR Combination Miniature, 120 VAC, 20 A, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pigtail Connection, 14 to 4 AWG Wire, Plug-On Mounting, 2.9 in L x 2.9 in W x 0.9 in H Dimensions

Specifications

Amperage Rating	20 A
Application	Conventional Energy, Renewable Energy, Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment Applications
Brand Name	EATON
Connection Type	Pigtail
Dimensions	2.9 in L x 2.9 in W x 0.9 in H
Includes	LED Diagnostic
Manufacturer Part Number	BRN120DF
Mounting Type	Plug-On
Number of Poles	1
Phase	1
Standards/Approvals	UL 1699/943
Type	2-Function Type BR Combination Miniature
Voltage Rating	120 VAC
