Eaton

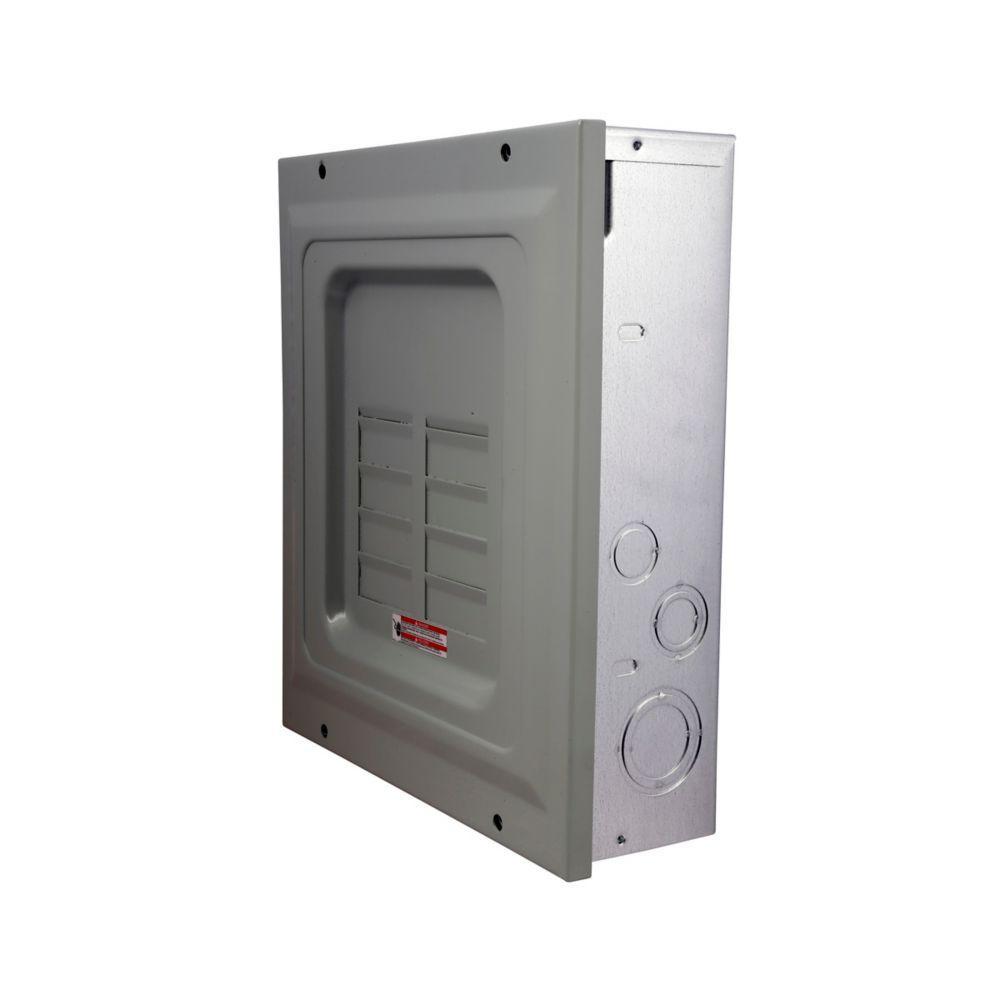

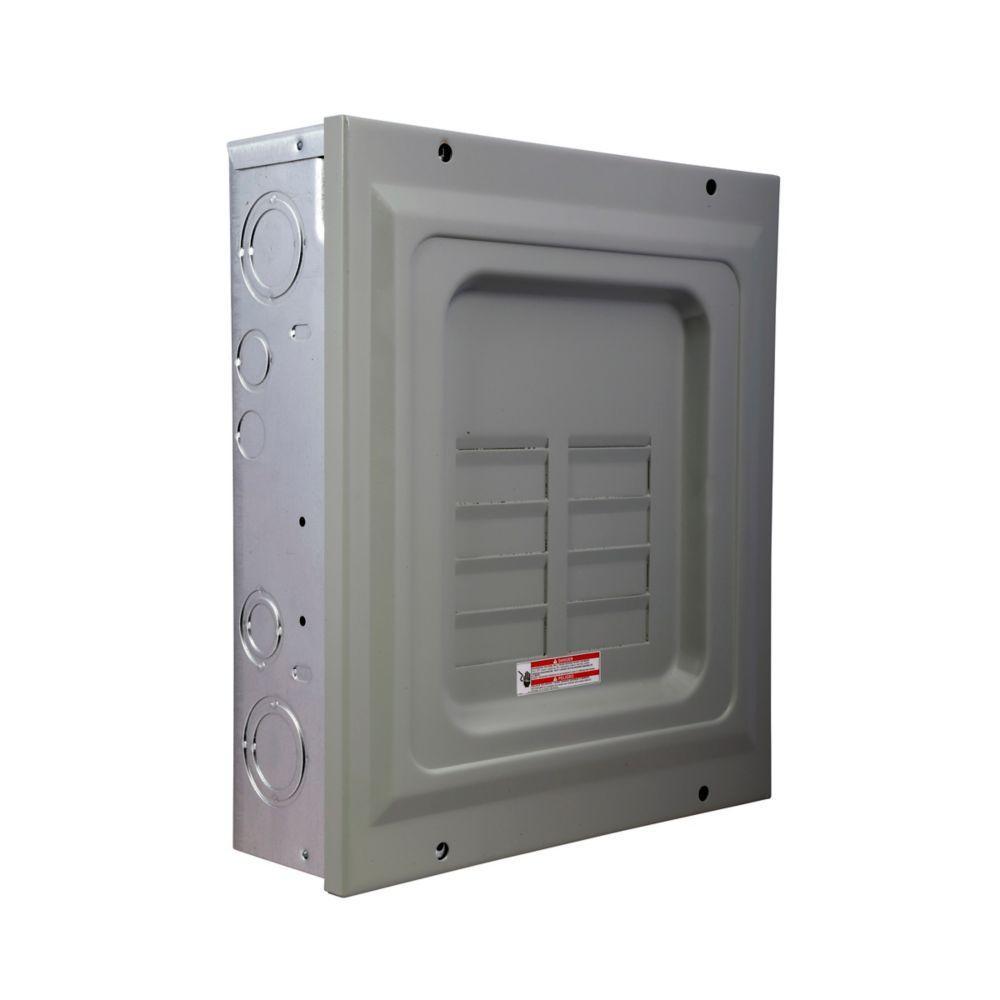

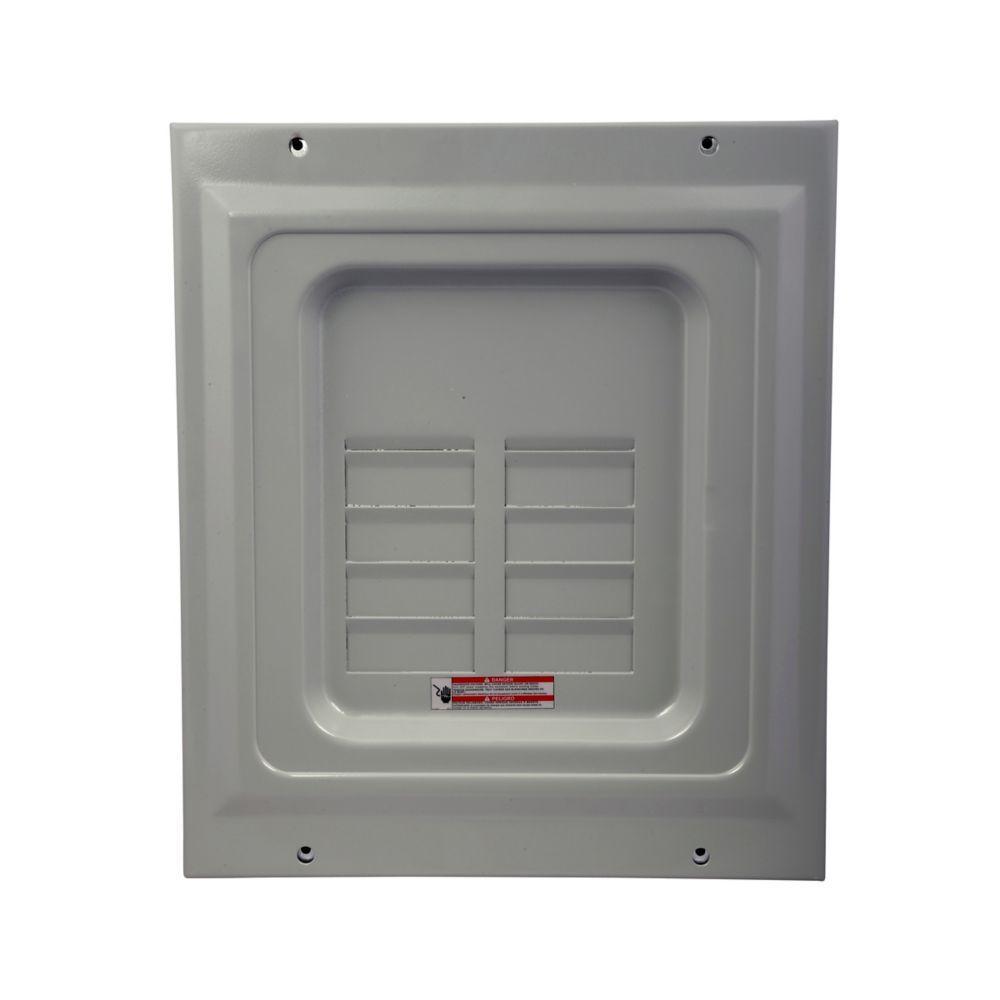

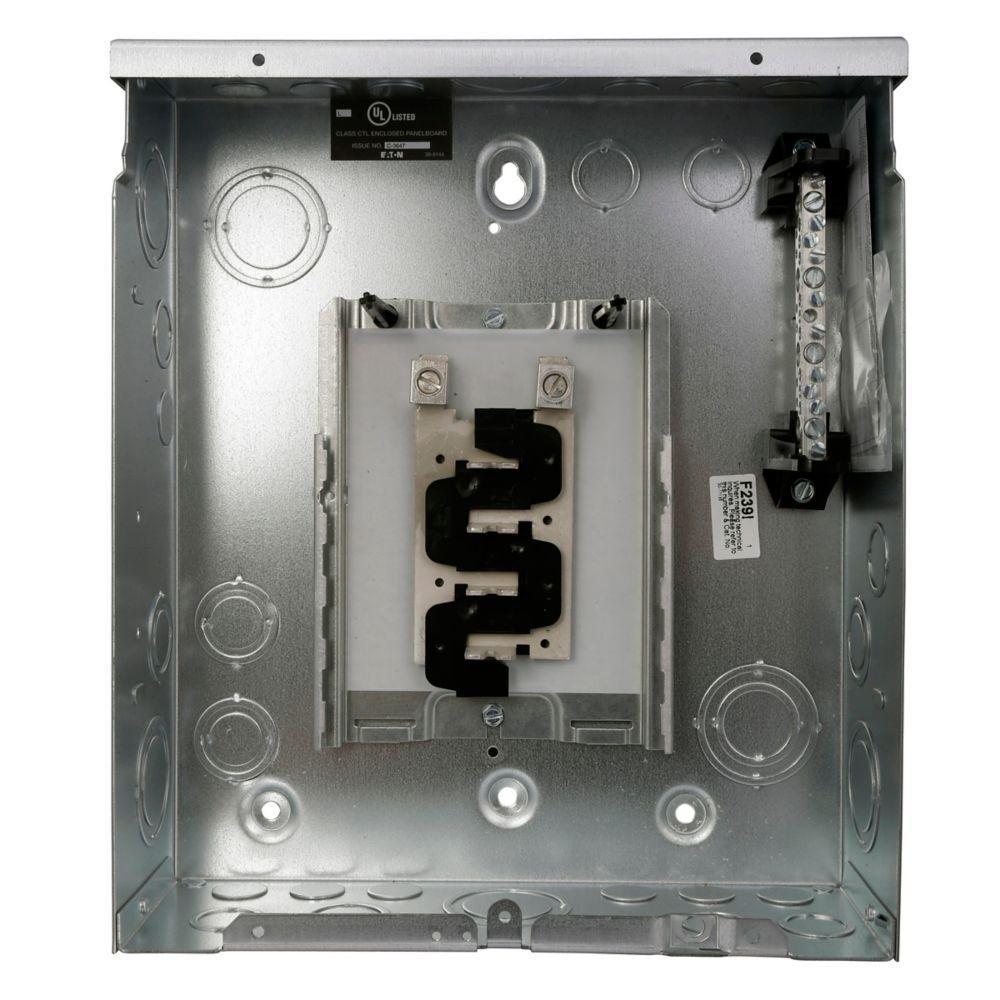

BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Description: EATON Main Lug Loadcenter, 1-Phase, 120/240 V AC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Wire, Surface Mount, NEMA 1, NEMA 7 Enclosure Box, Metal Housing, 3.56 in L x 11 in W x 13 in H

Manufacturer PN: BR816L125SP

UPC:  78667600212

Kendall Electric Inc PN: 2018774

Invoice Description:

BR816L125SP CH 16 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON BR816L125SP 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 16 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase, 120/240 V AC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Wire, Surface Mount, NEMA 1, NEMA 7 Enclosure Box, Metal Housing, 3.56 in L x 11 in W x 13 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 13 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 7
 Housing Material Metal
 Manufacturer Part Number BR816L125SP
 Mounting Type Surface
 Number of Circuits 16
 Number of Poles 16
 Number of Spaces 8
 PART NUMBER KEYWORDS BR816L125SP ; 7431587 ; 786676002127 ; 78667600212 ; 00786676002127
 Standards/Approvals UL 50,UL 67
 Type 1-Phase
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Cover not included
▪ Current design
▪ Aluminum bus material
▪ Single-phase
▪ Ground bar kits priced separately
▪ For 2/4 circuit load centers, use GBK5 or GBK520 ground bar
▪ Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit load centers
▪ Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided and when not used as a lighting and appliance panelboard
▪ Insulated/bondable split neutral type
▪ 1 in maximum space
