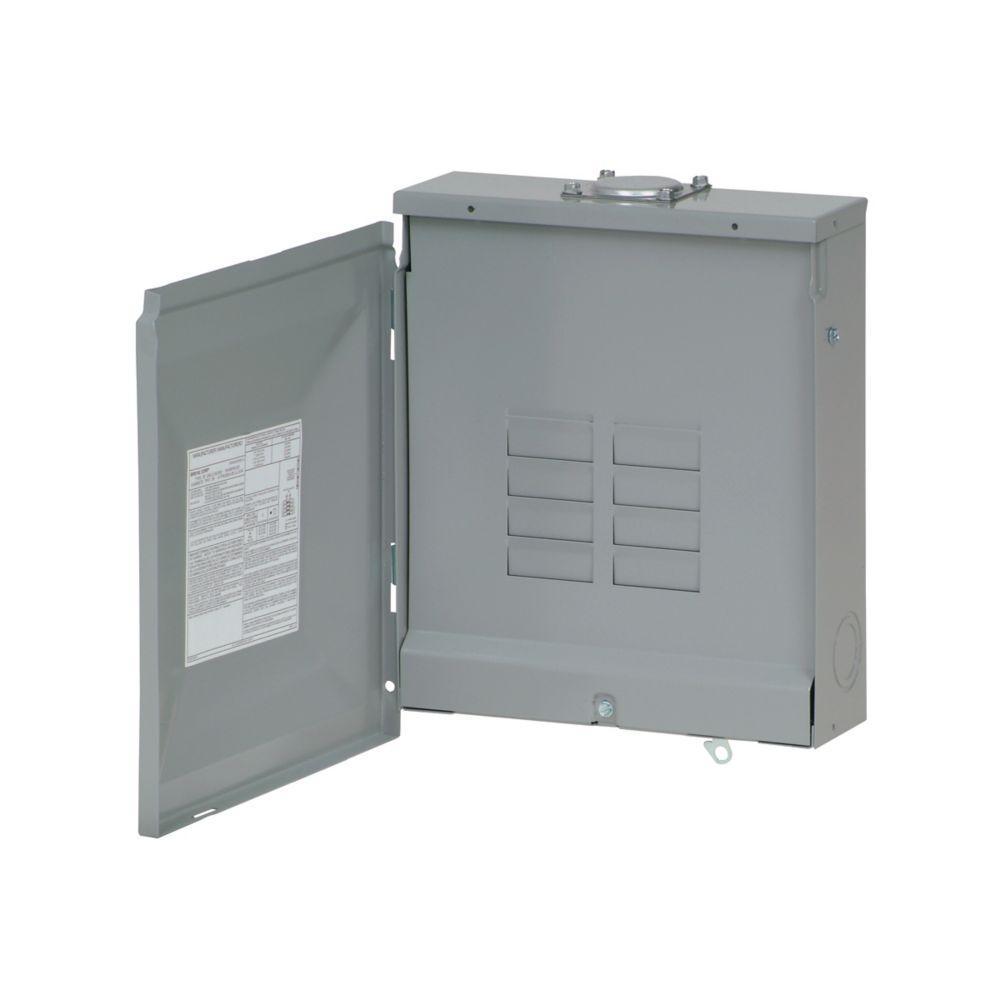

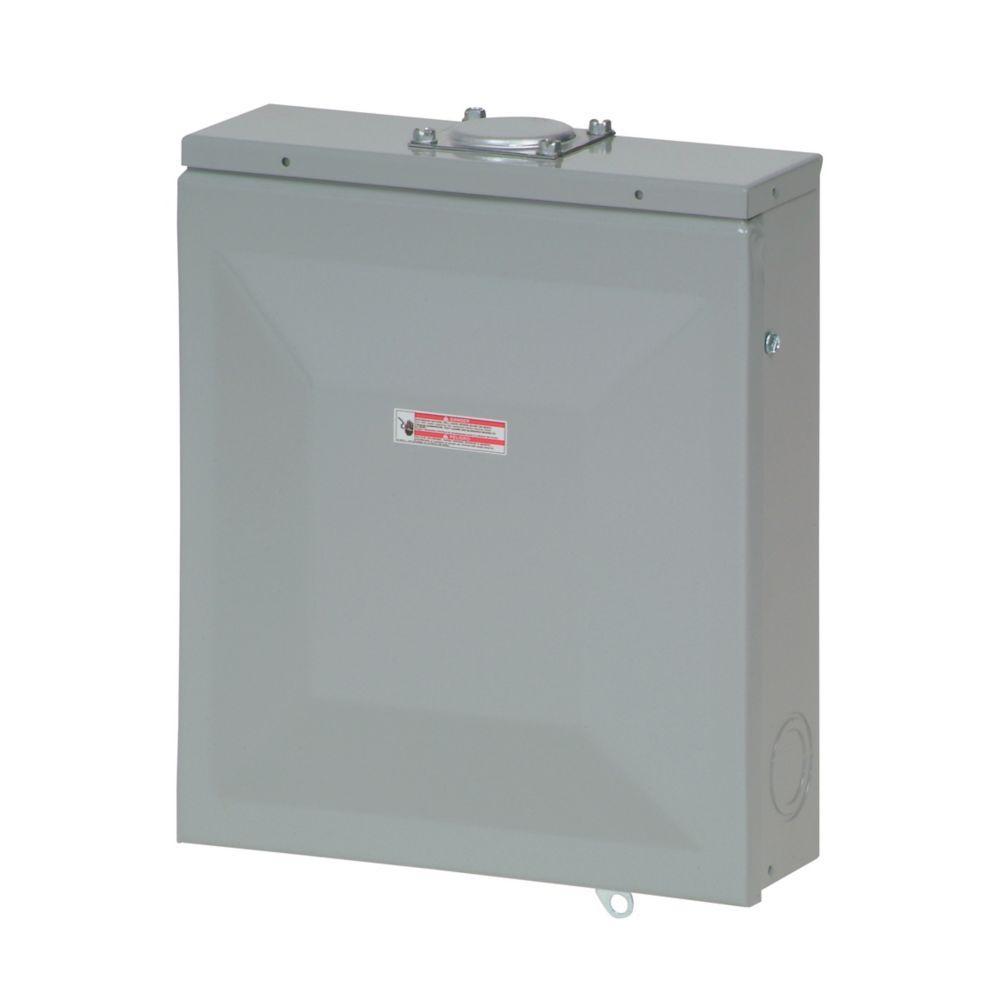

BR816L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • BR816L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • BR816L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • BR816L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Description: EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 7R Enclosure Box, Metal Housing Material, 3.56 in L x 11 in W x 13 in H

Manufacturer PN: BR816L125RP

UPC:  78667600147

Kendall Electric Inc PN: 2022615

Invoice Description:

BR816L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON BR816L125RP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 16 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 7R Enclosure Box, Metal Housing Material, 3.56 in L x 11 in W x 13 in H

Specifications

 Amperage Rating 125 A
 Application Power Distribution Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 13 in H
 Enclosure NEMA 3R
 Enclosure Box Size NEMA 7R
 Housing Material Metal
 Includes Cover
 Manufacturer Part Number BR816L125RP
 Mounting Type Surface
 Number of Circuits 16
 Number of Poles 16
 Number of Spaces 8
 Standards/Approvals UL 50|UL 67|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ 1 in maximum space
▪ Current design
▪ Aluminum bus material
▪ Single-phase
▪ Ground bar kits priced separately
▪ For 2/4 circuit loadcenters, use GBK5 or GBK520 ground bar
▪ Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
▪ Rainproof panels are furnished with hub closure plates, for rainproof hubs
▪ Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided
▪ Insulated/bondable split neutral type
