BR816L125FDP C-H Main Lug Loadcenter

Mouse over image to zoom, click to enlarge

  • BR816L125FDP C-H Main Lug Loadcenter
  • BR816L125FDP C-H Main Lug Loadcenter
  • BR816L125FDP C-H Main Lug Loadcenter

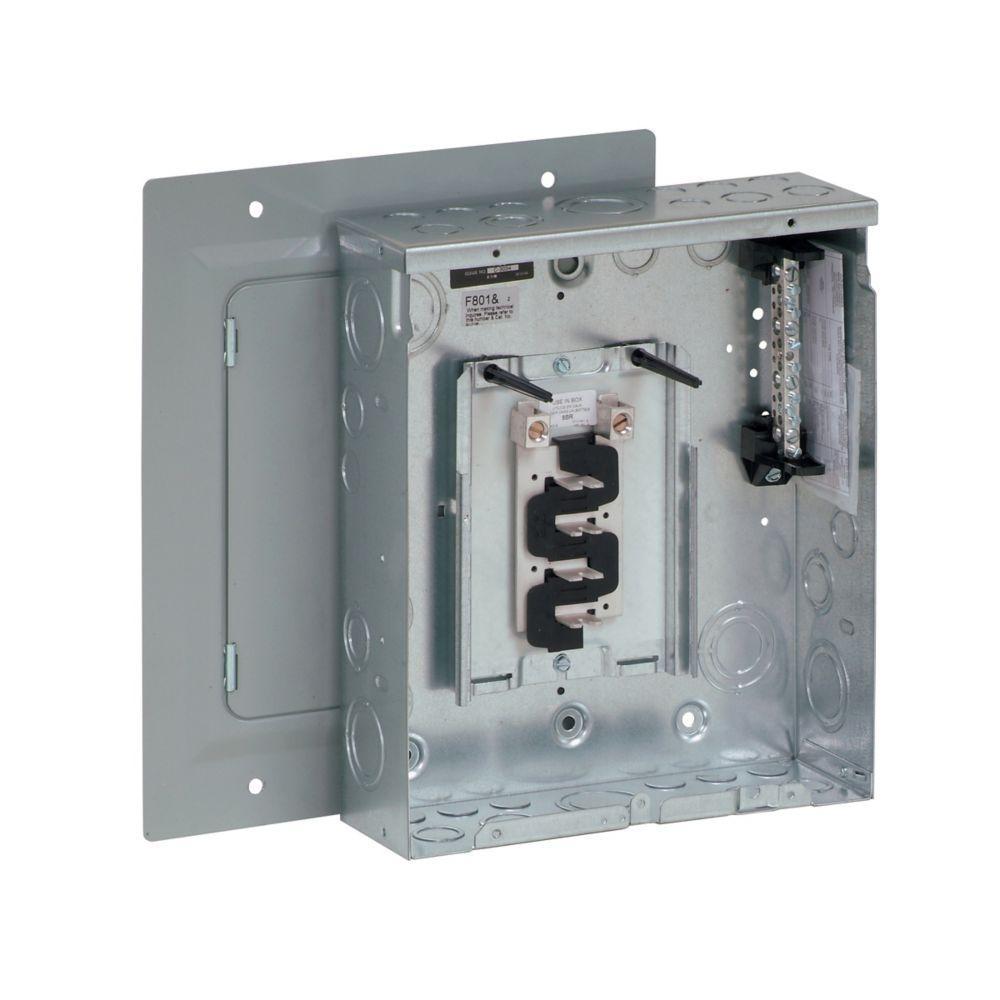

Description: EATON Main Lug Loadcenter, 1-Phase Split, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Cu/Al Wire, Flush Mount, NEMA 1, NEMA 7 Enclosure Box, 3.56 in L x 11 in W x 13 in H

Manufacturer PN: BR816L125FDP

UPC:  78667600143

Kendall Electric Inc PN: 2426363

Invoice Description:

BR816L125FDP C-H Main Lug Loadcenter


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON BR816L125FDP 1-Phase Split Main Lug Loadcenter, 120/240 VAC, 125 A, 16 Poles, 10 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase Split, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Cu/Al Wire, Flush Mount, NEMA 1, NEMA 7 Enclosure Box, 3.56 in L x 11 in W x 13 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 13 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 7
 Includes Cover
 Manufacturer Part Number BR816L125FDP
 Mounting Type Flush
 Number of Circuits 16
 Number of Poles 16
 Number of Spaces 8
 Standards/Approvals UL 50/67|UL E52977|UL E8741
 Type 1-Phase Split
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Dual grounds, current design
▪ Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
▪ Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
▪ 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
▪ Standard 14-3/8 in W enclosures fit snugly between wall studs
▪ Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
▪ BR load centers feature Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
▪ Indoor enclosure
▪ Copper aluminum wire at 60 to 75 deg C for main lugs
▪ Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
