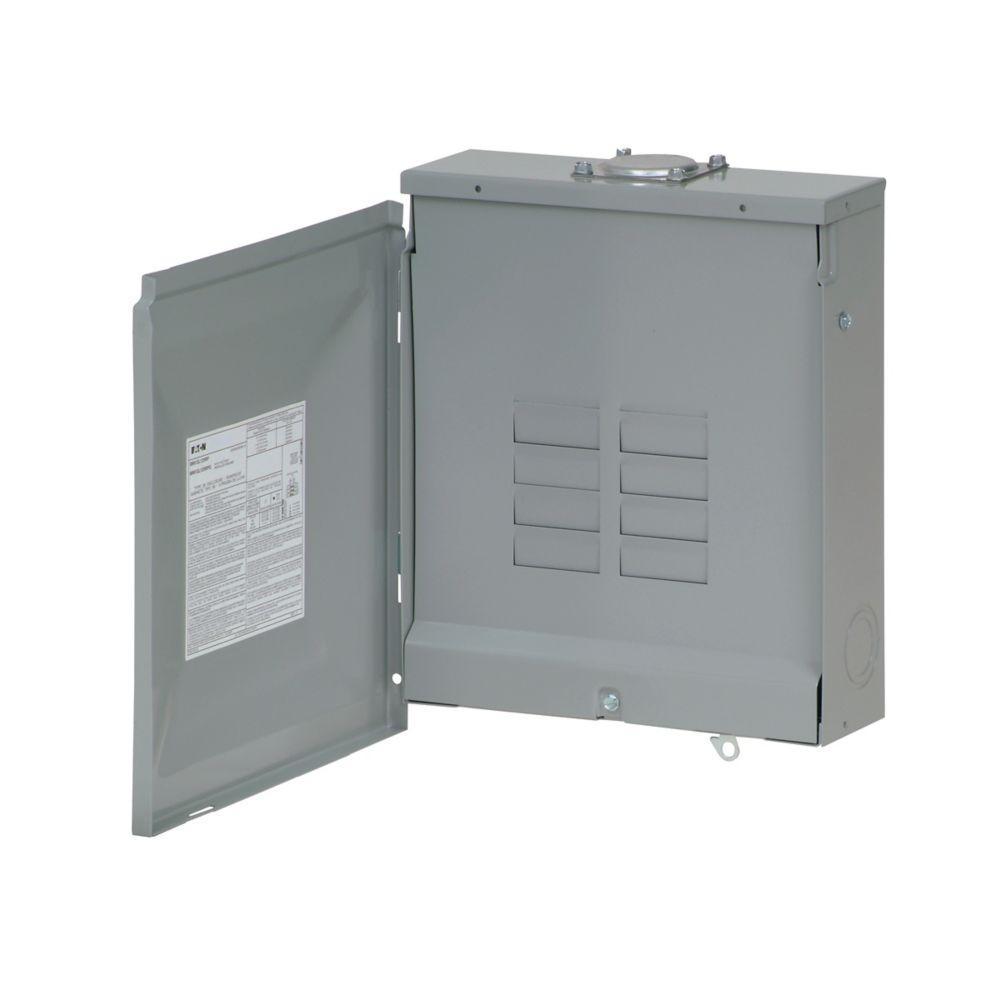

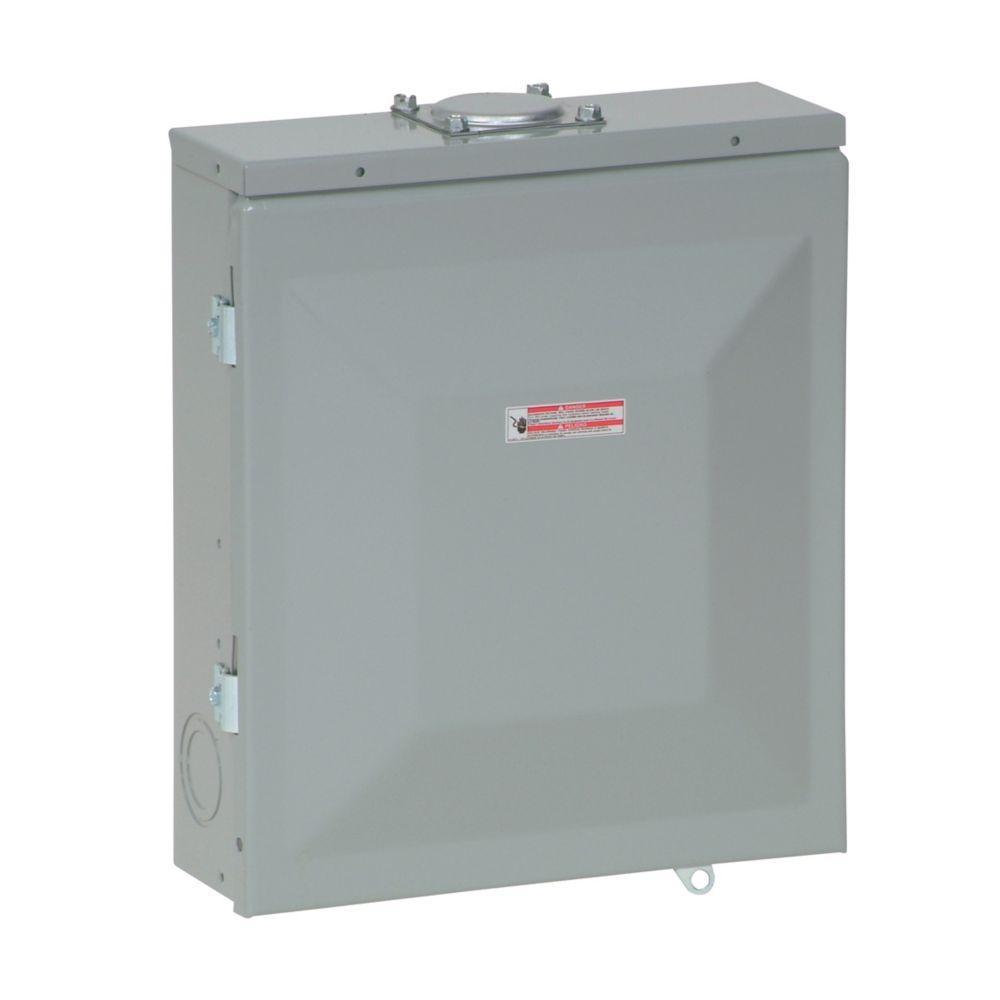

BR612L125RP CH 12 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • BR612L125RP CH 12 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • BR612L125RP CH 12 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • BR612L125RP CH 12 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Description: EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, BR Breaker, 3-Wire Wiring Configuration, 6 Spaces, 14 to 1 AWG Cu/Al Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 7R Enclosure Box, 3.56 in L x 11 in W x 13 in H

Manufacturer PN: BR612L125RP

UPC:  78667600135

Kendall Electric Inc PN: 2096537

Invoice Description:

BR612L125RP CH 12 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON BR612L125RP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 12 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 12 Pole, 10 kA Interrupt, 12 Circuits, BR Breaker, 3-Wire Wiring Configuration, 6 Spaces, 14 to 1 AWG Cu/Al Wire, Surface Mounting, NEMA 3R Enclosure, NEMA 7R Enclosure Box, 3.56 in L x 11 in W x 13 in H

Specifications

 Amperage Rating 125 A
 Application Power Distribution Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 13 in H
 Enclosure NEMA 3R
 Enclosure Box Size NEMA 7R
 Includes NEMA Type 3R Cover
 Manufacturer Part Number BR612L125RP
 Mounting Type Surface
 Number of Circuits 12
 Number of Poles 12
 Number of Spaces 6
 Standards/Approvals UL 50|UL 67
 Type 1-Phase
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Flexible neutral design
▪ Tangential main knockouts
▪ Single key hole mounting
▪ Factory pre-attached neutral bonding strap
▪ Insulated/bondable split neutral type
▪ Outdoor rainproof enclosure
▪ Copper/aluminum wire at 60 to 75 deg C for main lugs
▪ Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
▪ Current design
