Eaton

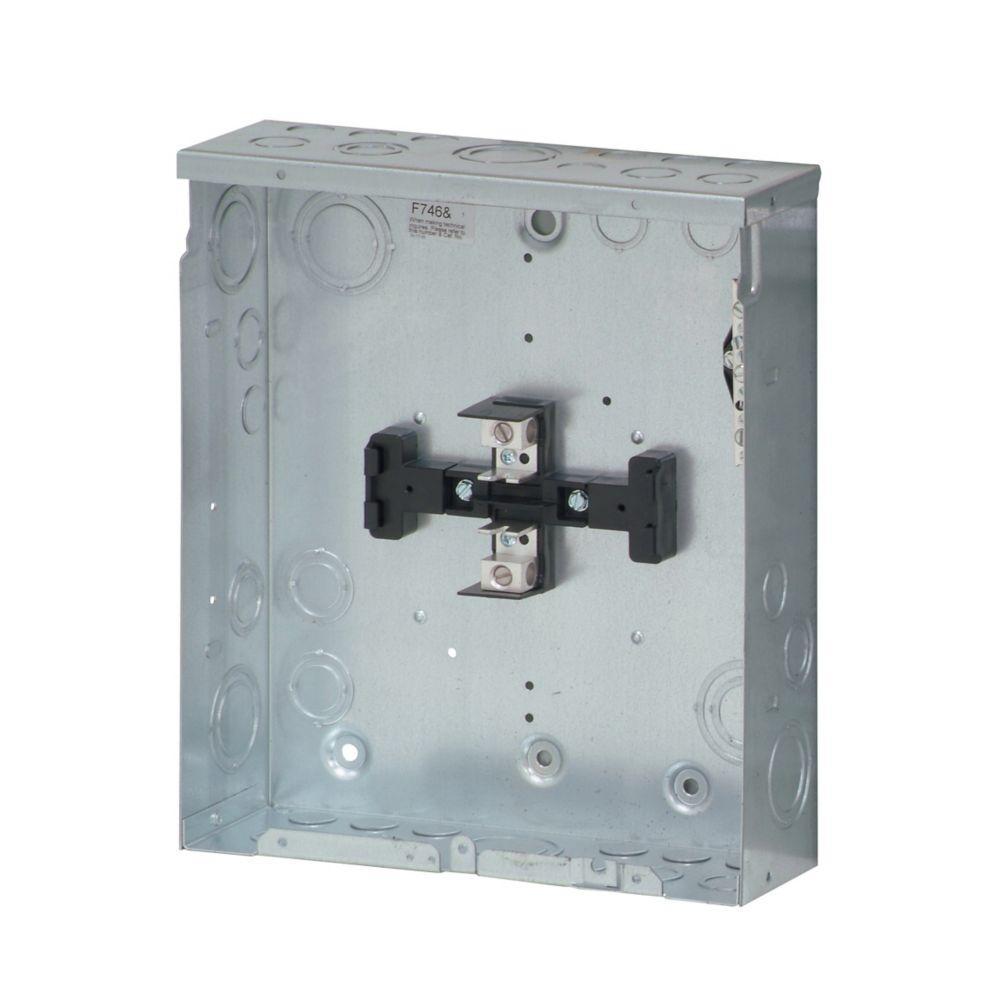

BR48L125SP CH 8 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • BR48L125SP CH 8 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER
  • BR48L125SP CH 8 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER

Description: EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 1, NEMA 7 Enclosure Box, Metal Housing, 3.56 in L x 11 in W x 4.1 in H

Manufacturer PN: BR48L125SP

UPC:  78667600123

Kendall Electric Inc PN: 2018909

Invoice Description:

BR48L125SP CH 8 CIRCUIT ML 1P 125 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON BR48L125SP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 8 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 1, NEMA 7 Enclosure Box, Metal Housing, 3.56 in L x 11 in W x 4.1 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 4.1 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 7
 Housing Material Metal
 Manufacturer Part Number BR48L125SP
 Mounting Type Surface
 Number of Circuits 8
 Number of Poles 8
 Number of Spaces 4
 Standards/Approvals UL 50/67
 Type 1-Phase
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ 1 in maximum space
▪ Cover not included
▪ Current design
▪ Aluminum bus material
▪ Single-phase
▪ Used with type BR 1 in breakers
▪ Ground bar kits priced separately
▪ For 2/4 circuit load centers, use GBK5 or GBK520 ground bar
▪ Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit load centers
▪ Suitable for use as service equipment when not more than six service disconnecting mains are provided
▪ Insulated/bondable split neutral type
