Eaton
BR48L125FP CH Main Lug Loadcenter

Mouse over image to zoom, click to enlarge

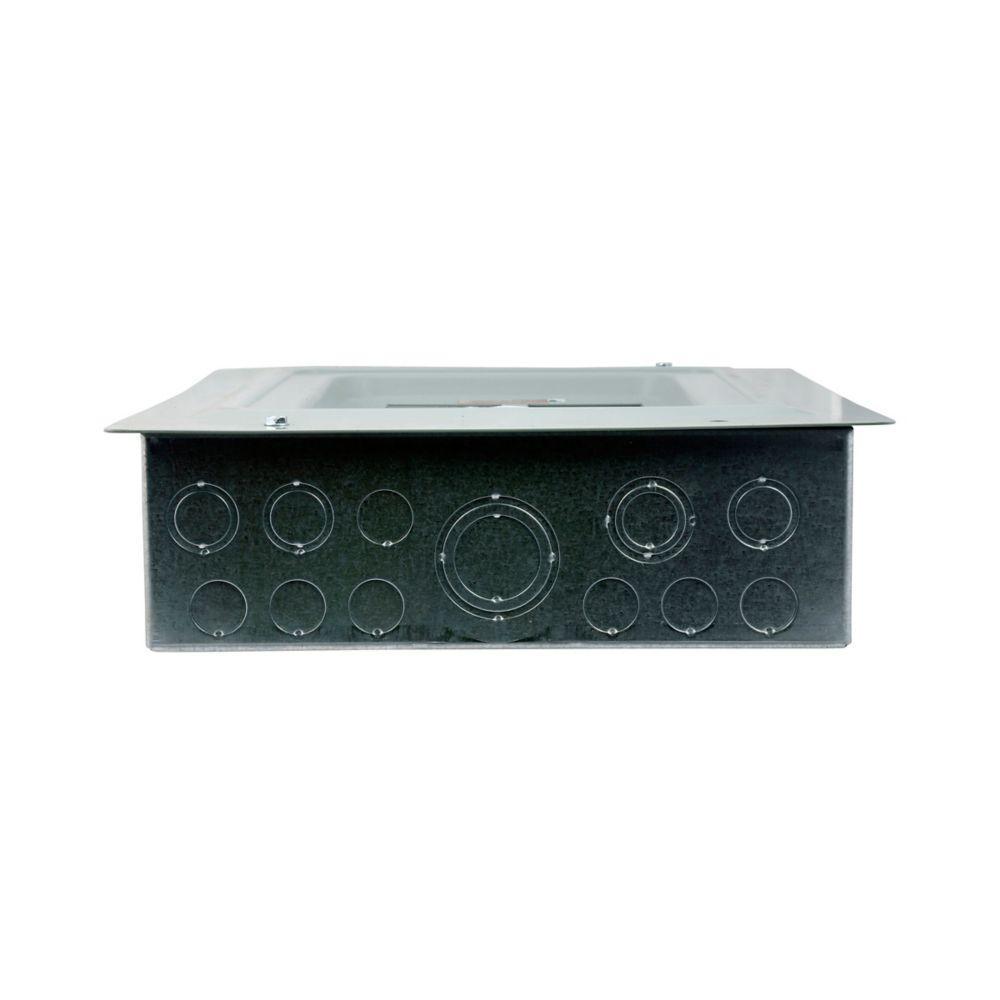

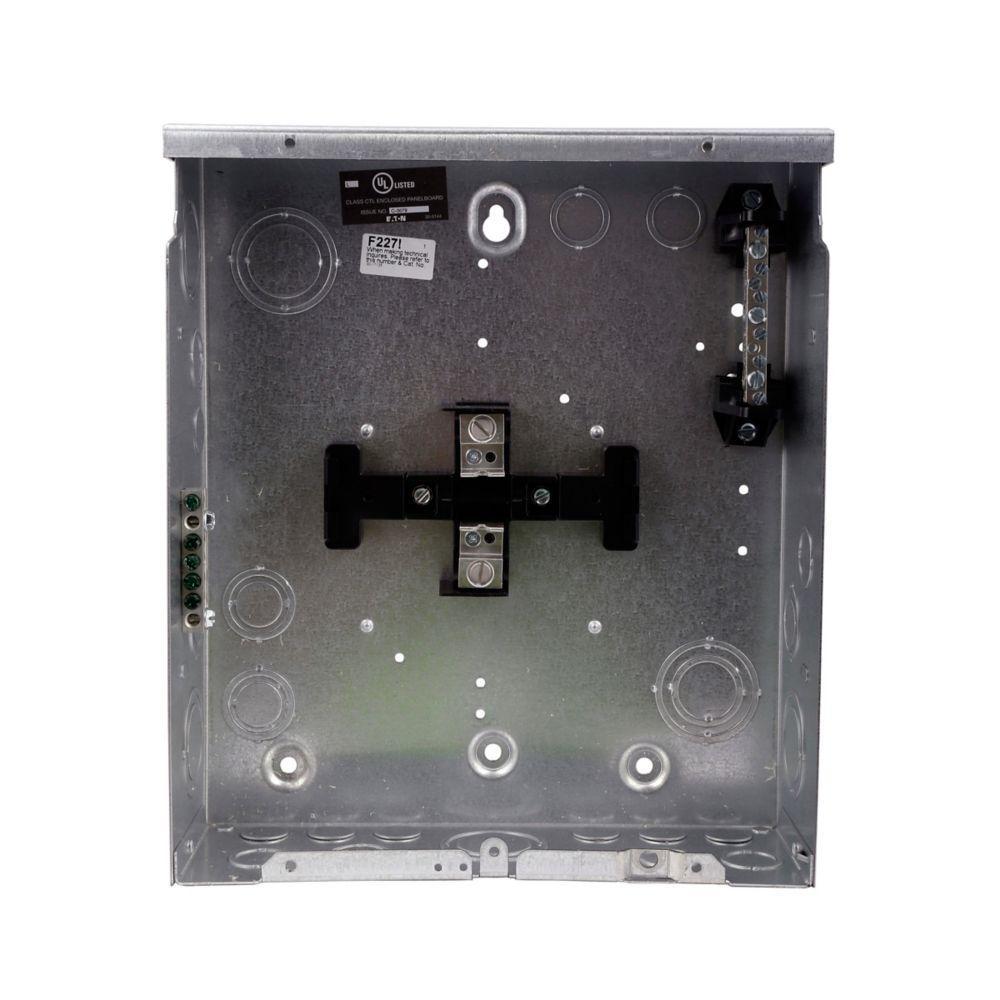

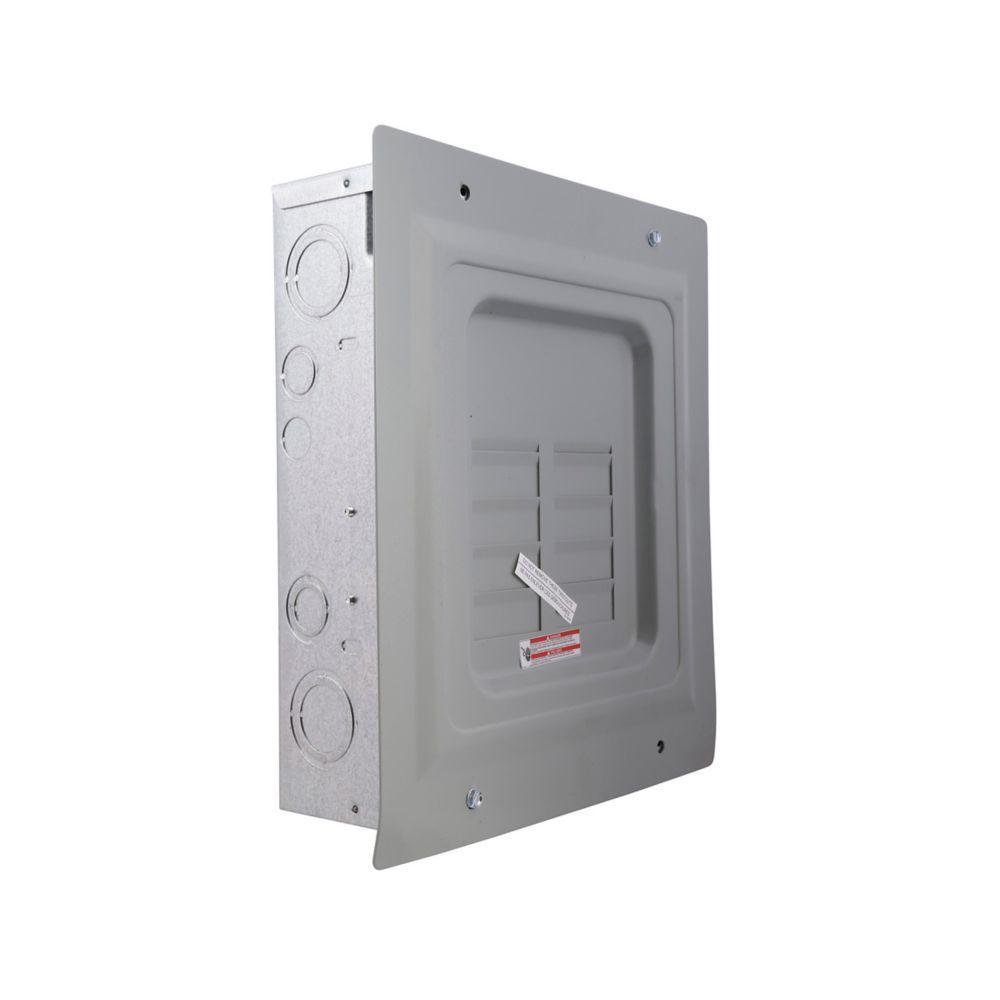

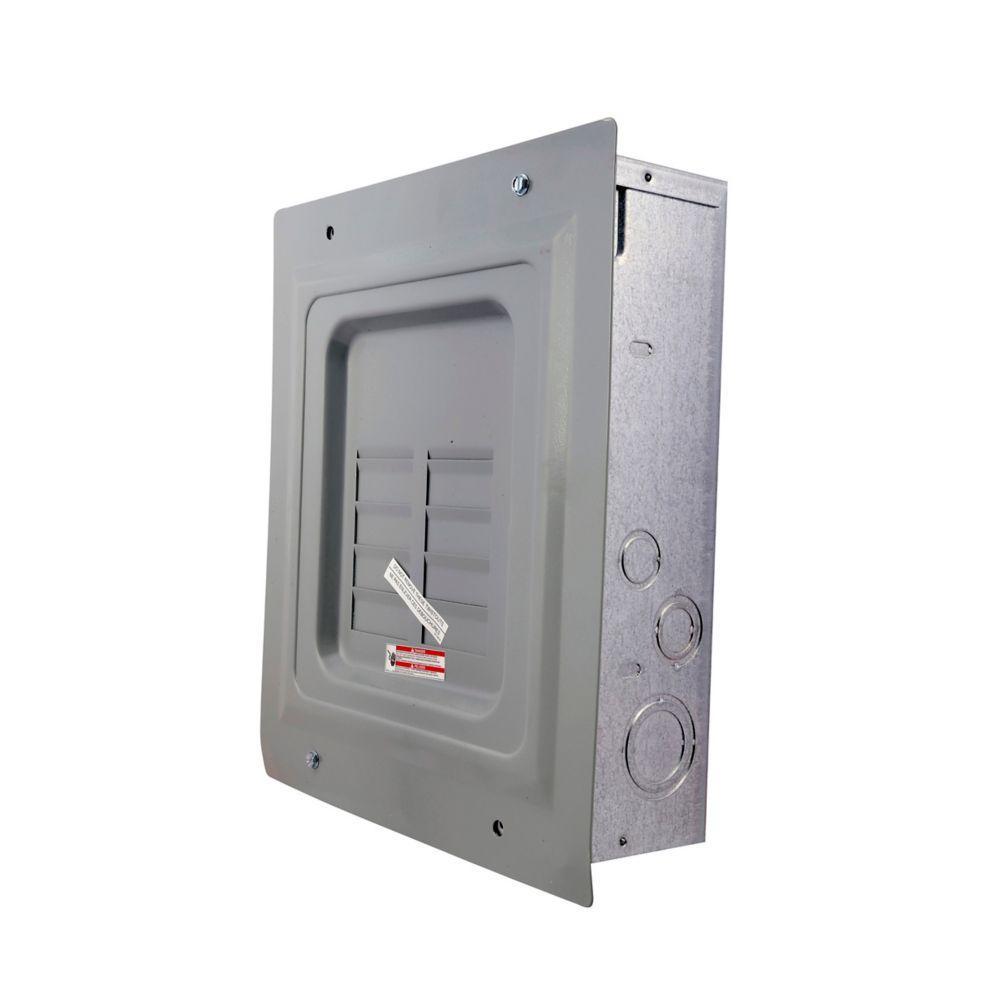

  • BR48L125FP CH Main Lug Loadcenter
  • BR48L125FP CH Main Lug Loadcenter
  • BR48L125FP CH Main Lug Loadcenter
  • BR48L125FP CH Main Lug Loadcenter
  • BR48L125FP CH Main Lug Loadcenter

Description: EATON Main Lug Loadcenter, 1-Phase Split, 120/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Flush Mount, NEMA 1, NEMA 7 Enclosure Box, 3.56 in L x 11 in W x 13 in H

Manufacturer PN: BR48L125FP

UPC:  78667600171

Kendall Electric Inc PN: 2151076

Invoice Description:

BR48L125FP CH Main Lug Loadcenter


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON BR48L125FP 1-Phase Split Main Lug Loadcenter, 120/240 VAC, 125 A, 8 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 1-Phase Split, 120/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Flush Mount, NEMA 1, NEMA 7 Enclosure Box, 3.56 in L x 11 in W x 13 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.56 in L x 11 in W x 13 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA 7
 Manufacturer Part Number BR48L125FP
 Mounting Type Flush
 Number of Circuits 8
 Number of Poles 8
 Number of Spaces 4
 Standards/Approvals UL 50/67|UL E52977|UL E8741
 Type 1-Phase Split
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Copper/aluminum wire at 60 to 75 deg C for main lugs
▪ Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
▪ Current design
▪ Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
▪ Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
▪ 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
▪ Standard 14-3/8 in W enclosures fit snugly between wall studs
▪ Tangential main knockouts eliminates the need for conduit offsets, which permits faster, easier installation
▪ BR load centers feature Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
▪ For use with type BR 1 in breakers
▪ Without cover
▪ Indoor enclosure
