Eaton

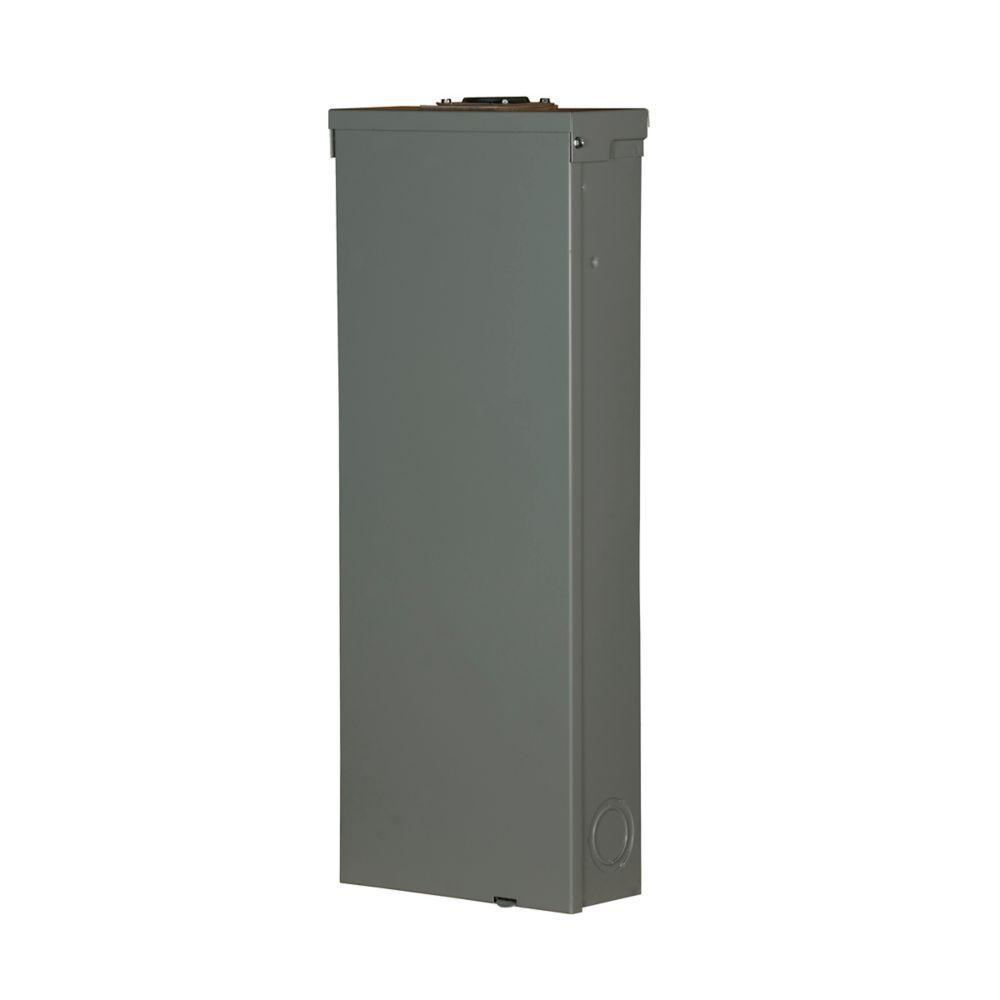

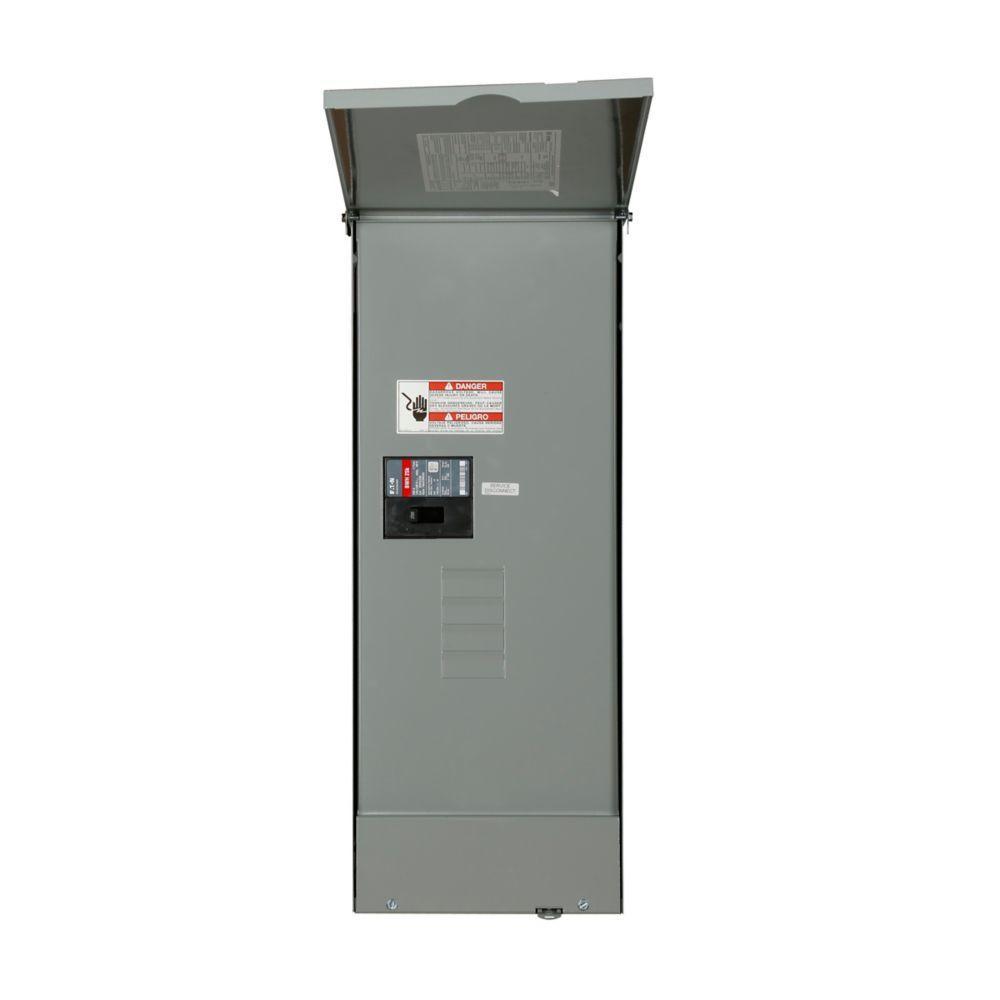

BR48B200RF CH 8 CIRCUIT MB 1P 200 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • BR48B200RF CH 8 CIRCUIT MB 1P 200 AMP NEMA 3R LOADCENTER
  • BR48B200RF CH 8 CIRCUIT MB 1P 200 AMP NEMA 3R LOADCENTER
  • BR48B200RF CH 8 CIRCUIT MB 1P 200 AMP NEMA 3R LOADCENTER

Description: EATON Main Circuit Breaker Loadcenter, 1-Phase Metallic, 120/240 V AC, 200 A, 8 Pole, 25 kA Interrupt, 8 Circuits, BR/BWH Breaker, 3-Wire Wiring Configuration, 4 Spaces, 2/0 AWG to 300 kcmil Wire, Flush Mount, NEMA 3R/8R, 4-3/4 in L x 10-1/2 in W x 27 in H

Manufacturer PN: BR48B200RF

UPC:  78667600175

Kendall Electric Inc PN: 2022962

Invoice Description:

BR48B200RF CH 8 CIRCUIT MB 1P 200 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON BR48B200RF 1-Phase Metallic Main Circuit Breaker Loadcenter, 120/240 V AC, 200 A, 8 Poles, 25 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Circuit Breaker Loadcenter, 1-Phase Metallic, 120/240 V AC, 200 A, 8 Pole, 25 kA Interrupt, 8 Circuits, BR/BWH Breaker, 3-Wire Wiring Configuration, 4 Spaces, 2/0 AWG to 300 kcmil Wire, Flush Mount, NEMA 3R/8R, 4-3/4 in L x 10-1/2 in W x 27 in H

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR/BWH
 Dimensions 4-3/4 in L x 10-1/2 in W x 27 in H
 Enclosure NEMA 3R/8R
 Includes Interlock Cover
 Manufacturer Part Number BR48B200RF
 Mounting Type Flush
 Number of Circuits 8
 Number of Poles 8
 Number of Spaces 4
 PART NUMBER KEYWORDS BR48B200RF ; 7431424 ; 786676001755 ; 78667600175 ; 00786676001755
 Standards/Approvals UL 50,UL 67
 Type 1-Phase Metallic
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
▪ Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
▪ Standard 14-3/8 in W enclosures fit snugly between wall studs
▪ Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
▪ Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
▪ For use with type BR 1 in breakers
▪ Copper aluminum wire at 60 to 75 deg C for main breakers
▪ Standard tin plated aluminum bus for excellent conductivity and corrosion resistance
▪ No feed-thru lugs
