Eaton

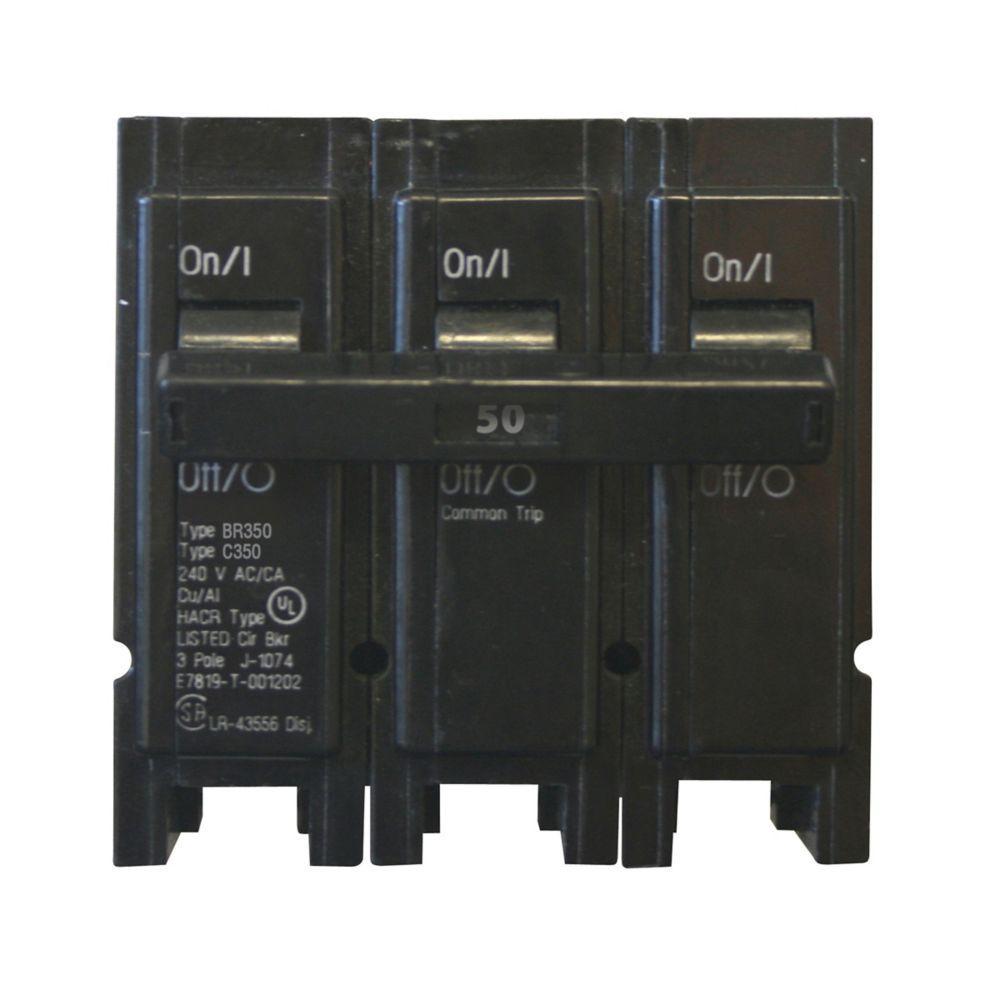

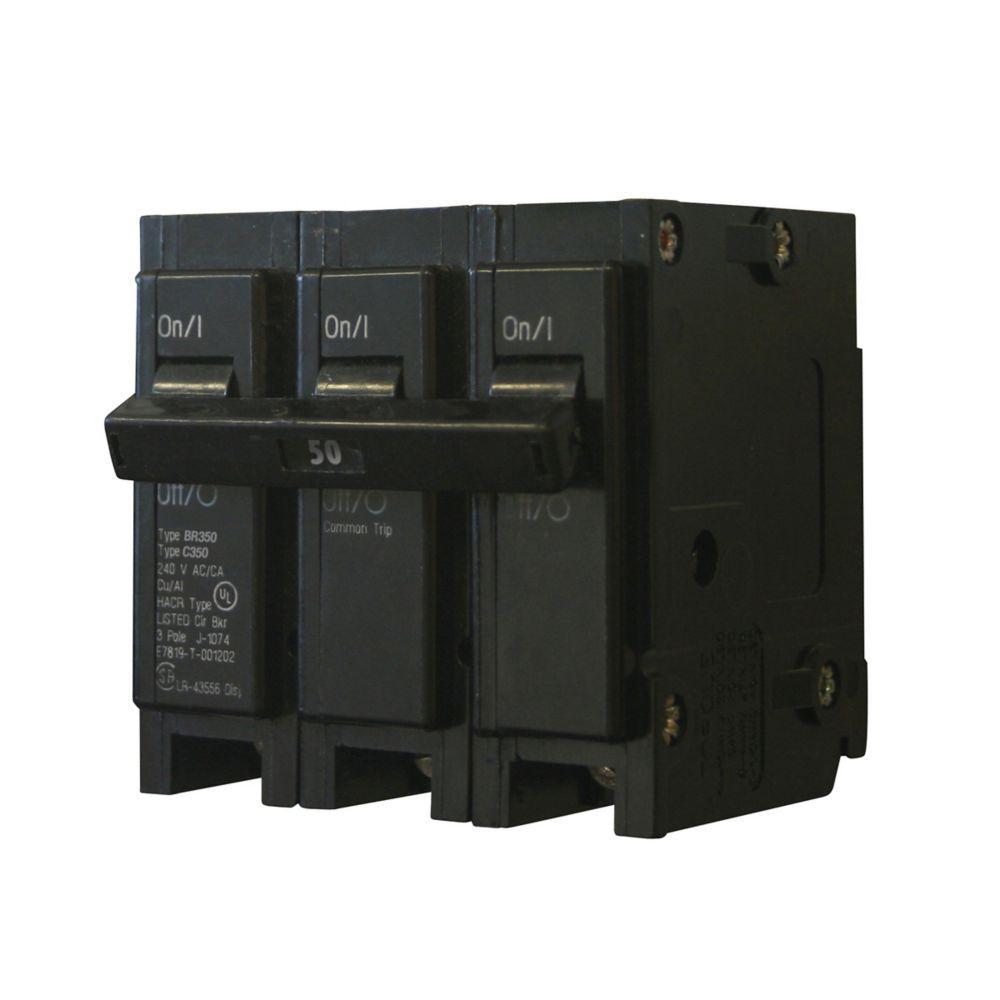

BR350 CH CIRCUIT BREAKER 3P 50 AMP 240V..

Mouse over image to zoom, click to enlarge

  • BR350 CH CIRCUIT BREAKER 3P 50 AMP 240V..
  • BR350 CH CIRCUIT BREAKER 3P 50 AMP 240V..
  • BR350 CH CIRCUIT BREAKER 3P 50 AMP 240V..

Description: EATON Circuit Breaker, Type BR, 240 V AC, 50 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Manufacturer PN: BR350

UPC:  78667636790

Kendall Electric Inc PN: 2148091

Invoice Description:

BR350 CH CIRCUIT BREAKER 3P 50 AMP 240V..


SPEC SHEET

▸ See All in Std Thermal Magnetic Circuit Breakers


How Can We Make This Page Better?

EATON BR350 Type BR Circuit Breaker, 240 V AC, 50 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Description

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
EATON Circuit Breaker, Type BR, 240 V AC, 50 A, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, 3 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Specifications

 Amperage Rating 50 A
 Application Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Load Centers and Circuit Protection
 Brand Name EATON
 Dimensions 3 in L x 3 in W x 3 in H
 Enclosure NEMA 1/4X/3R
 Manufacturer Part Number BR350
 Mounting Type Plug-On
 Number of Poles 3
 Phase 3
 Standards/Approvals UL 489,Federal Specifications Classification W-C375
 Temperature Rating 600 to 750 deg C
 Type Type BR
 Voltage Rating 240 V AC

Features

▪ Common trip requires three 1 in spaces
▪ All BR circuit breakers have rejection tab feature
▪ Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
▪ For 3-pole circuit breakers carry listing for HACR applications
▪ Used with type BR load centers
