Eaton

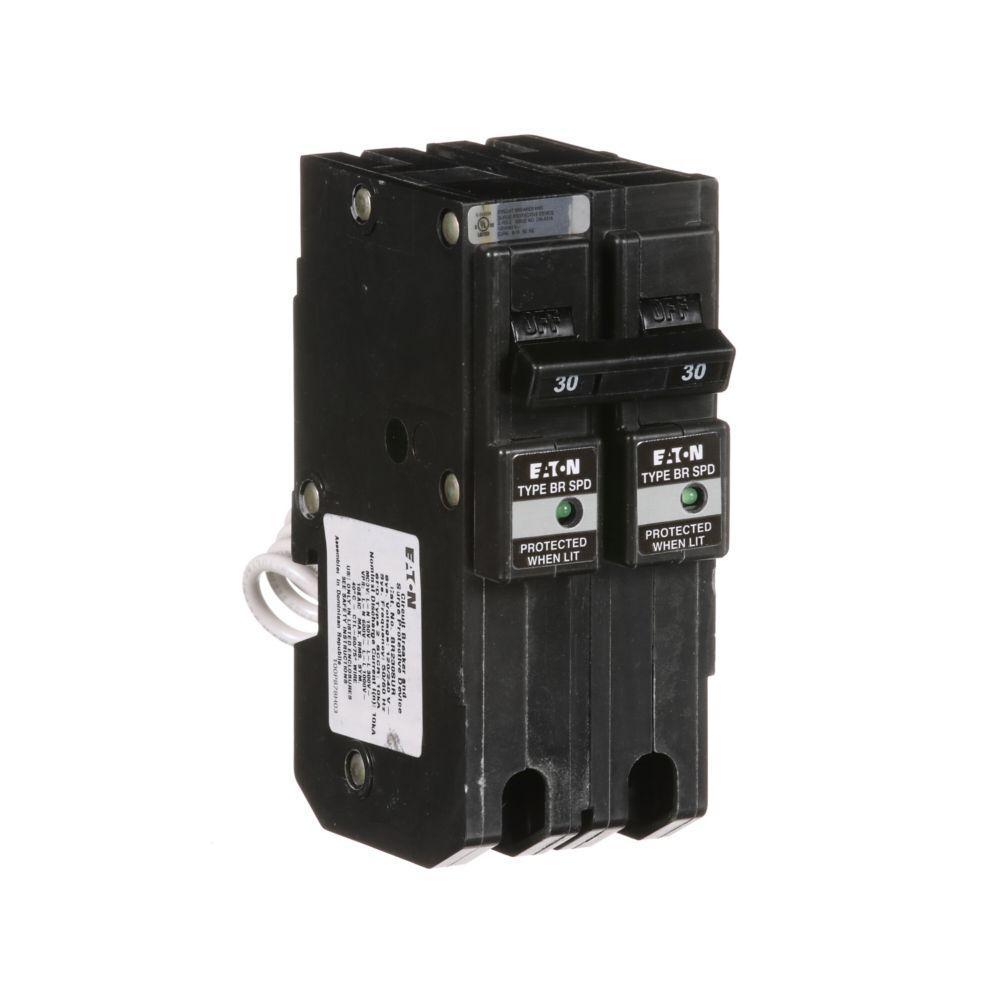

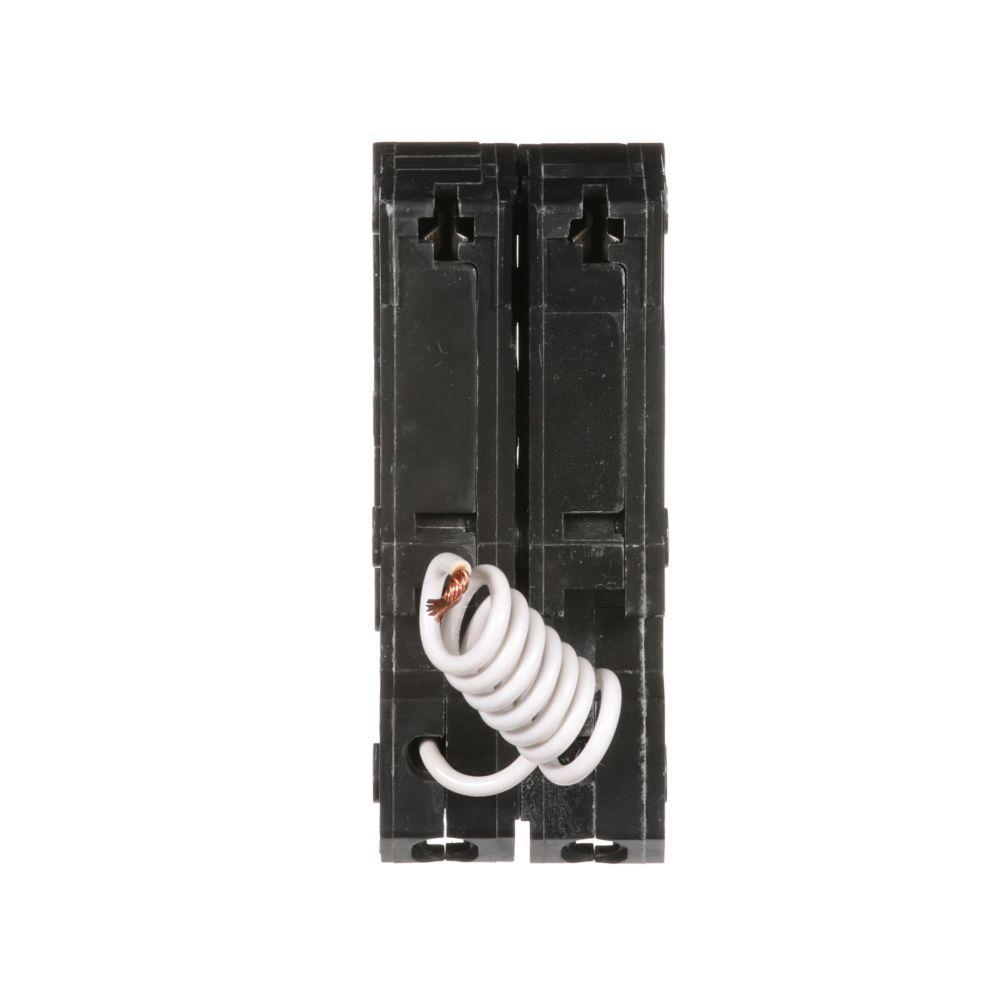

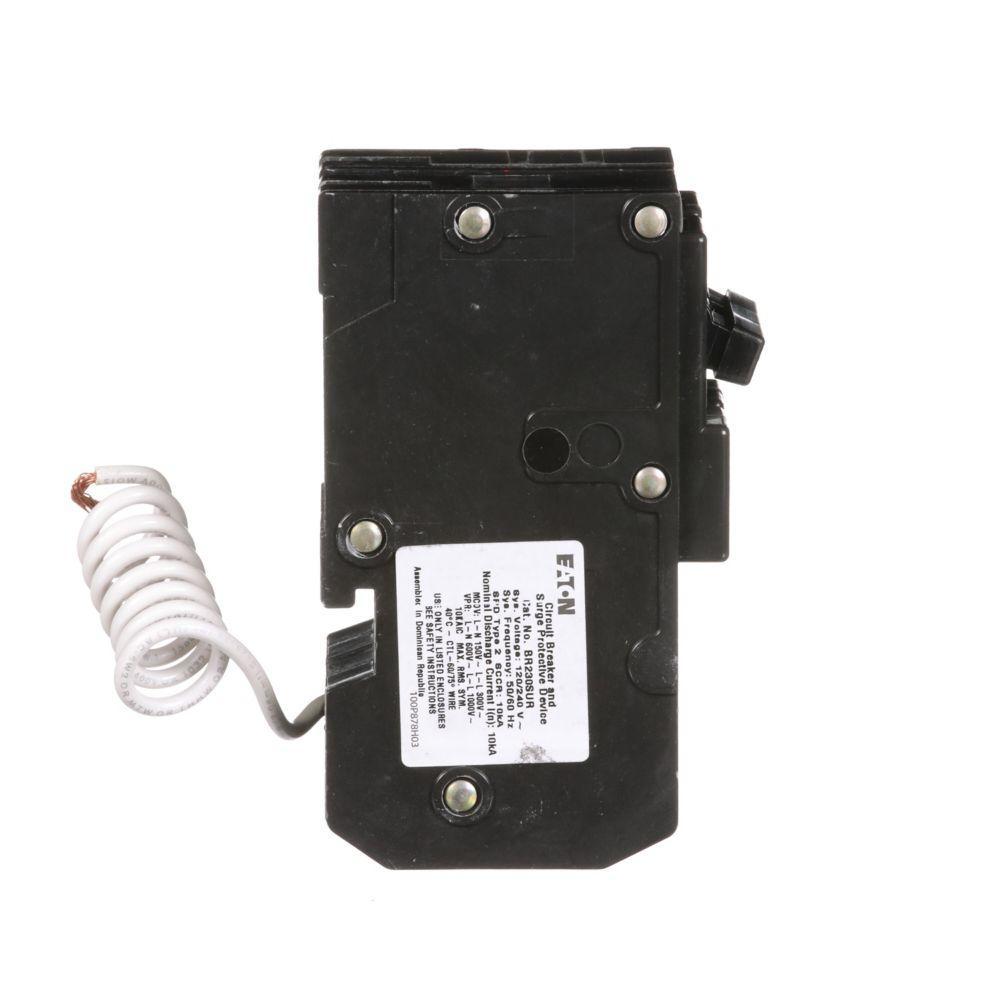

  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V
  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V
  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V
  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V
  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V
  • BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V

Description: EATON Surge Breaker, 1-Phase Type BR, 120/240 VAC, 30 A, 50/60 Hz Frequency, 2 Pole, 36 kA Peak Surge Current, 10000 kA Nominal Discharge, Indicators: LED/Audible Alarm, Panel Mounting, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H Dimensions

Manufacturer PN: BR230SUR

UPC:  78668554606

Kendall Electric Inc PN: 3624004

Invoice Description:

BR230SUR CH SURGE BREAKER 2P 30 AMP 120/240V


SPEC SHEET

▸ See All in Load Center Surge Protection Devices


How Can We Make This Page Better?

EATON BR230SUR 1-Phase Type BR Surge Breaker, 120/240 VAC, 30 A, 2 Poles

Log In for Pricing and Availability




Description

Eaton offers a comprehensive family of surge products for use at service entrances. These products can help protect sensitive electronics against the damaging effects of surges. Due to the evolution of electronics and microprocessors in the home, there is a continuous challenge to provide quality (clean) power for electronic loads such as appliances, computers/home office and entertainment systems. Surges caused by lightning, utility grid switching and other sources travel on current carrying conductors throughout the home, which can affect and destroy sensitive electronic loads.
EATON Surge Breaker, 1-Phase Type BR, 120/240 VAC, 30 A, 50/60 Hz Frequency, 2 Pole, 36 kA Peak Surge Current, 10000 kA Nominal Discharge, Indicators: LED/Audible Alarm, Panel Mounting, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H Dimensions

Specifications

 Amperage Rating 30 A
 Application Generation - Renewable Energy, Alternative Energy, Conventional Energy - Conventional Energy, Marine Vessels and Equipment, Datacenters, IT Space, CI and Hyper Converged Applications
 Brand Name EATON
 Dimensions 6-1/2 in L x 3-1/2 in W x 2-1/2 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number BR230SUR
 Mounting Type Panel
 Nominal Discharge Current 10000 kA
 Number of Poles 2
 Peak Surge Current 36 kA
 Standards/Approvals UL 489/1449
 Type 1-Phase Type BR
 Type of Indicators LED/Audible Alarm
 Voltage Rating 120/240 VAC

Features

▪ Plug-in style
▪ 10 kA interrupt rating

Resources

 Catalog Page
 Product Data Sheet
